Honda HRX537C2 - HYEA - MAGA 1700001- Flywheel (Cast Iron) Diagram

Name: Honda HRX537C2 - HYEA - MAGA 1700001- Flywheel (Cast Iron) Diagram
SKU: hrx537c2_hyea_maga_1700001_flywheel_cast_iron_-group
Price: 2.47 GBP
Availability: InStock

Part No. hrx537c2_hyea_maga_1700001_flywheel_cast_iron_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX537C2 - HYEA - MAGA 1700001- Flywheel (Cast Iron) Diagram

Description

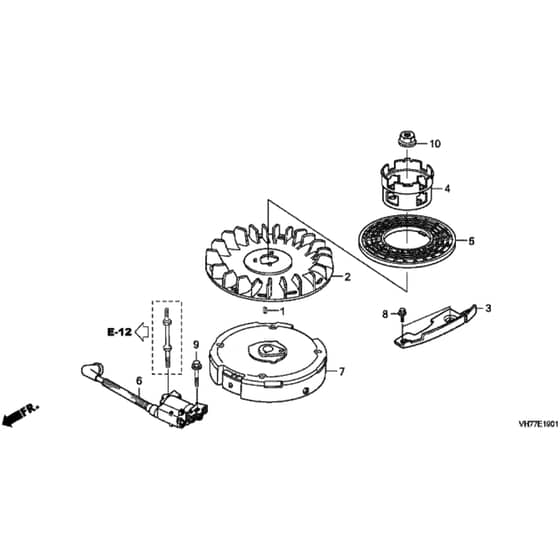

Honda HRX537C2 - HYEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP13331-357-000 Available to backorder	Woodruff Key	£6.08 £5.07
2	HP19511-Z0J-900 Available to backorder	Cooling Fan	£8.64 £7.20
3	HP19612-Z0L-000 Available to backorder	Plate	£3.70 £3.08
4	HP28451-Z0J-900 Available to backorder	Pulley	£31.03 £25.86
5	HP28452-Z0J-900 Available to backorder	Screen Grid	£29.15 £24.29

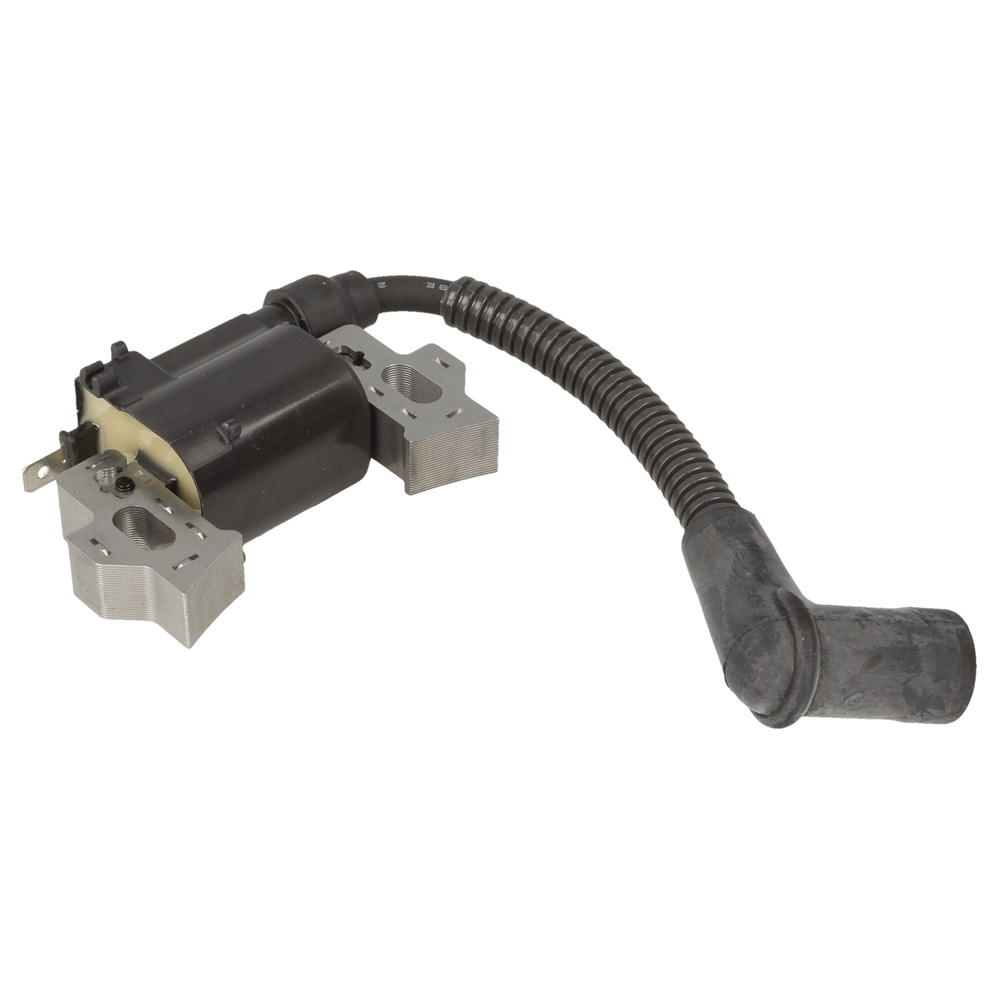

6	HP30500-Z0J-004 Available to backorder	Ignition Coil Assy	£81.48 £67.90
7	HP31110-Z0J-014 Available to backorder	Flywheel Assy	£92.88 £77.40
8	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
9	HP90018-ZE1-000 Available to backorder	Flange Bolt	£2.96 £2.47
10	HP90201-Z0T-800 Available to backorder	Speical Nut 14Mm	£7.10 £5.92
