Honda HRX537C1 - TDEA - MAGA 1300001-1399999 Shutter Diagram

Name: Honda HRX537C1 - TDEA - MAGA 1300001-1399999 Shutter Diagram
SKU: hrx537c1_tdea_maga_1300001_1399999_shutter-group
Price: 0.55 GBP
Availability: InStock

Part No. hrx537c1_tdea_maga_1300001_1399999_shutter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX537C1 - TDEA - MAGA 1300001-1399999 Shutter Diagram

Description

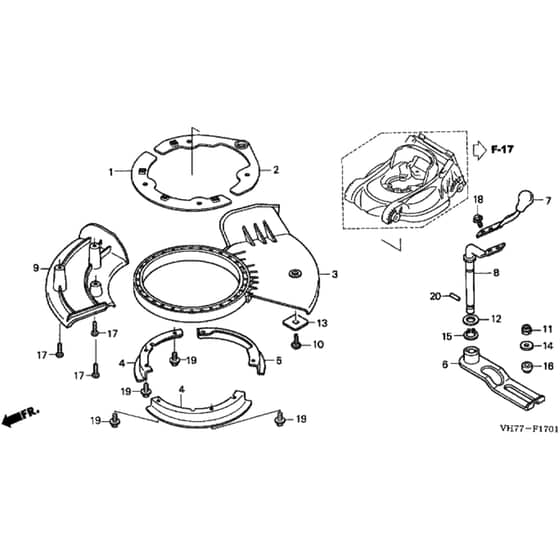

Honda HRX537C1 - TDEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP76256-VH7-000 Available to backorder	Base Plate	£13.97 £11.64
2	HP76257-VH7-000 Available to backorder	Plate	£40.34 £33.62
3	HP76262-VH7-010 Available to backorder	Shutter	£35.38 £29.48
4	HP76263-VH7-000 Available to backorder	Shutter Holder	£12.83 £10.69
5	HP76264-VH7-000 Available to backorder	Shutter Holder	£12.83 £10.69
6	HP76265-VH7-010 Available to backorder	Shutter Arm Assy	£72.96 £60.80
7	HP76270-VH7-000ZA Available to backorder	Shutter Lever Assy	£32.36 £26.97
8	HP76275-VH7-010 Available to backorder	Lever Arm	£27.08 £22.57
9	HP76286-VH7-010 Available to backorder	Scroll Ramp	£38.48 £32.07
10	HP90101-VH7-000 Available to backorder	Special Bolt 6 X 19	£2.40 £2.00
11	HP90303-VG3-000 In stock	Lock Nut 6Mm	£0.80 £0.67
12	HP90502-VE2-800 In stock	Thrust Washer 13Mm	£4.48 £3.73
13	HP90502-VH7-000 Available to backorder	Arm Washer	£14.09 £11.74
14	HP90503-VH7-000 Available to backorder	Washer 6.568	£1.08 £0.90
15	HP90651-VE2-800 In stock	External Circlip 12.7Mm	£1.69 £1.41
16	HP91557-VH7-000 Available to backorder	Arm Collar	£3.74 £3.12
17	HP93913-25420 Available to backorder	Tapping Screw	£1.94 £1.62
18	HP95701-0600800 In stock	Flange Bolt 6X8	£1.37 £1.14
19	HP95701-0801000 Available to backorder	Flange Bolt 8 X 10	£1.72 £1.43
20	HP96220-40198 Available to backorder	Roller	£0.66 £0.55
