Honda HRX537C1 - TDEA - MAGA 1300001-1399999 Rotary Blade Diagram

Name: Honda HRX537C1 - TDEA - MAGA 1300001-1399999 Rotary Blade Diagram
SKU: hrx537c1_tdea_maga_1300001_1399999_rotary_blade-group
Price: 0.39 GBP
Availability: InStock

Part No. hrx537c1_tdea_maga_1300001_1399999_rotary_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

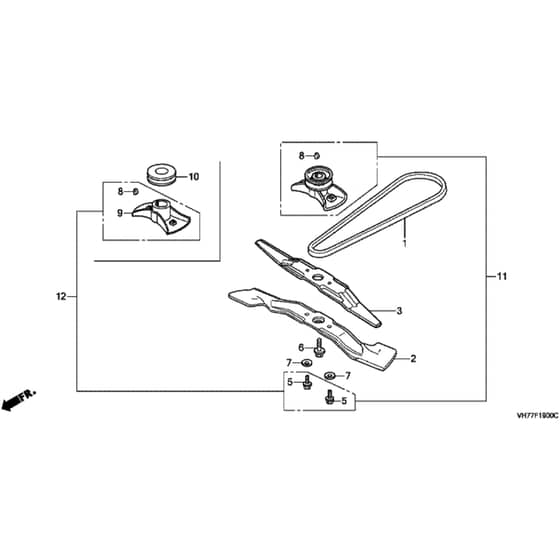

Honda HRX537C1 - TDEA - MAGA 1300001-1399999 Rotary Blade Diagram

Description

Honda HRX537C1 - TDEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP22431-VH7-000 Available to backorder	Belt	£29.20 £24.33
2	HP72511-VH7-000 In stock	Blade	£52.08 £43.40
3	HP72531-VH7-000 In stock	Upper Blade	£52.08 £43.40
5	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.38 £3.65
6	HP90109-VG3-000 Available to backorder	Flange Bolt 3/8-24 X 1	£1.20 £1.00
7	HP90502-VG3-000 In stock	Spring Washer 10Mm	£1.76 £1.47
8	HP90751-VG3-000 Available to backorder	Key	£0.47 £0.39
11	HP06726-VE1-305 Available to backorder	Blade Holder Kit	£70.32 £58.60
