Honda HRX537C1 - TDEA - MAGA 1300001-1399999 Rear Wheel Diagram

Name: Honda HRX537C1 - TDEA - MAGA 1300001-1399999 Rear Wheel Diagram
SKU: hrx537c1_tdea_maga_1300001_1399999_rear_wheel-group
Price: 0.86 GBP
Availability: InStock

Part No. hrx537c1_tdea_maga_1300001_1399999_rear_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

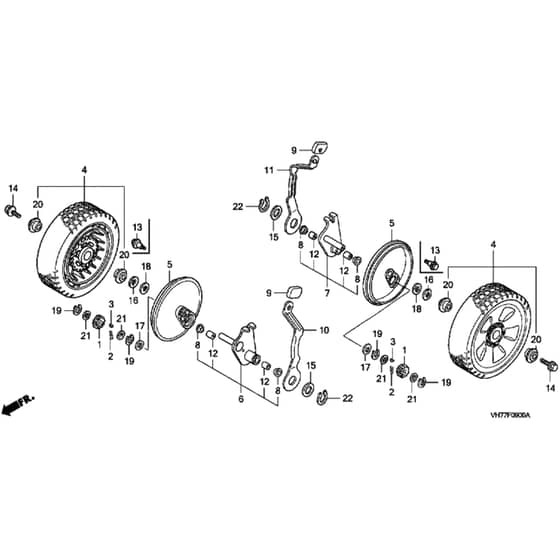

Honda HRX537C1 - TDEA - MAGA 1300001-1399999 Rear Wheel Diagram

Description

Honda HRX537C1 - TDEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP42661-VH7-000 In stock	Pinion Gear	£8.68 £7.23
2	HP42668-VE2-800 In stock	Pawl Spring	£1.21 £1.01
3	HP42672-VE2-800 In stock	Ratchet Key	£4.33 £3.61
4	HP42710-VH7-010ZA In stock	Rear Wheel	£54.26 £45.22
5	HP42866-VH7-000 Out of stock	Cover	£16.26 £13.55
6	HP42930-VH7-010 In stock	Arm	£34.74 £28.95
7	HP42940-VH7-010 Available to backorder	Adjuster Arm Front L H	£34.21 £28.51
8	HP42944-VE2-801 In stock	Dust Seal 12.7Mm	£10.07 £8.39
9	HP42952-VG3-000ZA Available to backorder	Adjuster Grip	£1.69 £1.41
10	HP42961-VH7-000 Available to backorder	Rear Adjuster Plate R H	£17.06 £14.22
11	HP42966-VH7-000 Available to backorder	Height Adjuster Lever	£17.69 £14.74
12	HP44327-VE2-801 In stock	Drive Shaft Bush	£9.13 £7.61
13	HP90103-VE2-801 Available to backorder	Tapping Screw	£1.88 £1.57
14	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
15	HP90403-952-770 Available to backorder	Plain Washer 22Mm	£3.56 £2.97
16	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
17	HP90502-VE2-800 In stock	Thrust Washer 13Mm	£4.48 £3.73
18	HP90505-VG3-000 Available to backorder	Thrust Washer 13 X 27 X 1	£1.03 £0.86
19	HP90651-VE2-800 In stock	External Circlip 12.7Mm	£1.69 £1.41
21	HP91559-VE2-800 In stock	Pinion Gear Collar	£1.81 £1.51
22	HP94511-22000 Available to backorder	External Circlip 22Mm	£2.03 £1.69
