Honda HRX537C1 - HXEA - MAGA 1300001-1399999 Transmission Diagram

Name: Honda HRX537C1 - HXEA - MAGA 1300001-1399999 Transmission Diagram
SKU: hrx537c1_hxea_maga_1300001_1399999_transmission-group
Price: 1.57 GBP
Availability: InStock

Part No. hrx537c1_hxea_maga_1300001_1399999_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX537C1 - HXEA - MAGA 1300001-1399999 Transmission Diagram

Description

Honda HRX537C1 - HXEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP20001-VH7-A01 Available to backorder	Transmission Assy	£514.32 £428.60
3	HP21230-VE5-A00 Available to backorder	Oil Cap Assy	£23.95 £19.96
4	HP21235-VE5-303 Available to backorder	Oil Cap O Ring	£9.19 £7.66
5	HP21557-VE2-800 Available to backorder	Tension Spring Plate	£9.46 £7.88
6	HP22533-VH7-A00 Available to backorder	Control Arm	£19.34 £16.12
7	HP24134-VE5-A00 Available to backorder	Control Arm Return Spring	£3.34 £2.78
8	HP24468-VE1-T00 Available to backorder	Wheel Tension Spring	£12.60 £10.50
10	HP51125-VE1-R21 Available to backorder	Wire Holder	£30.58 £25.48
11	HP90003-892-000 Available to backorder	Flange Bolt 5X12	£1.88 £1.57
12	HP90029-888-000 Available to backorder	Flange Bolt 6 X 16	£4.09 £3.41
15	HP91204-KE8-003 In stock	Oil Seal	£7.34 £6.12
19	HP94305-40252 Available to backorder	Spring Pin 4 X 25	£2.48 £2.07
20	HP04200-VH7-325 Available to backorder	Transmission Assy	£426.72 £355.60

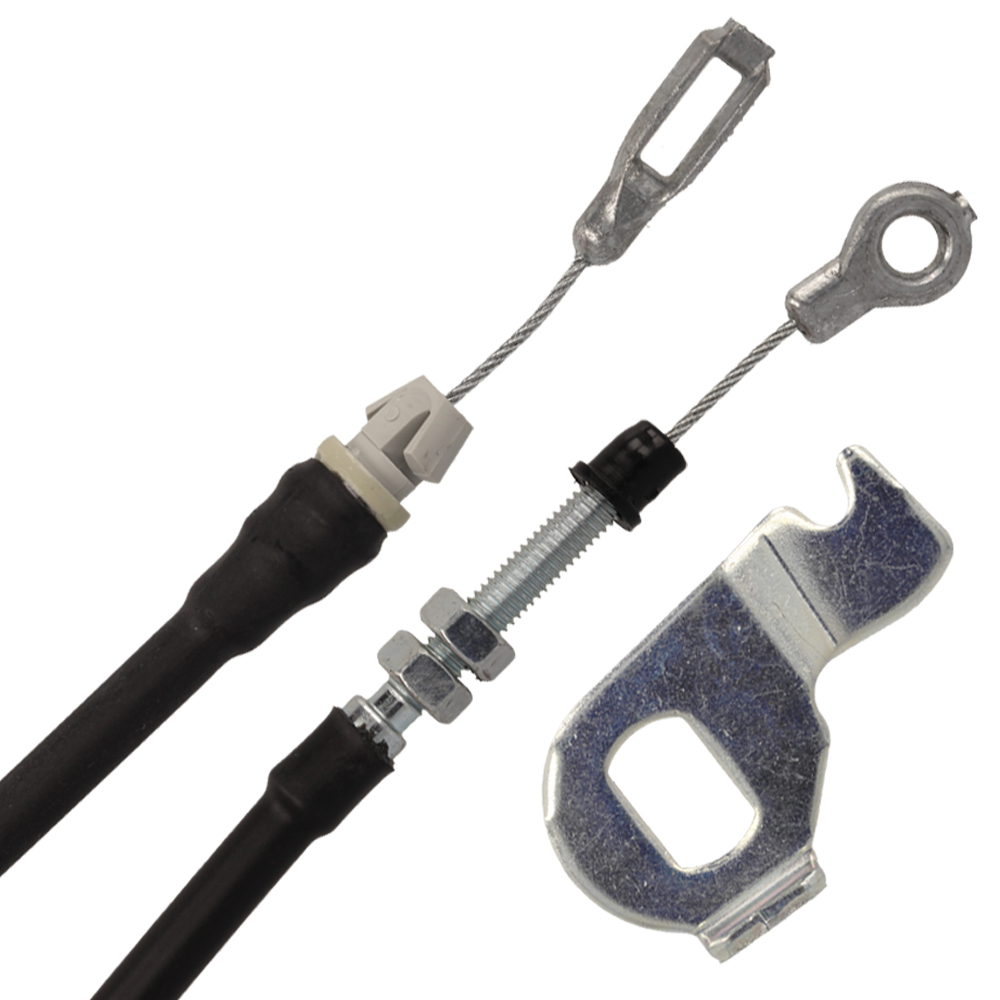

21	HP06225-VH7-305 Available to backorder	Cable & Arm Kit	£43.82 £36.52
22	HP54630-VH7-A04 In stock	Speed Change Cable	£29.10 £24.25
