Honda HRX537C1 - HMEA - MAGA 1300001-1399999 Handle Pipe Diagram

Name: Honda HRX537C1 - HMEA - MAGA 1300001-1399999 Handle Pipe Diagram
SKU: hrx537c1_hmea_maga_1300001_1399999_handle_pipe-group
Price: 0.8 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX537C1 - HMEA - MAGA 1300001-1399999 Handle Pipe Diagram

Description

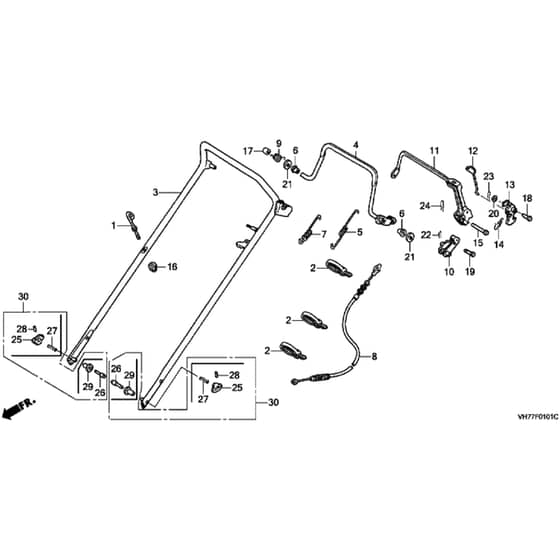

Honda HRX537C1 - HMEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP32901-VB5-A00 In stock	Cable Tie	Was £6.47 £5.39 Special Price £4.30 £3.58
3	HP53110-VH7-B00ZA Available to backorder	Upper Handle	£142.48 £118.73
4	HP54410-VE1-R00 Available to backorder	Clutch Lever	£29.93 £24.94
5	HP54411-VB3-800 In stock	Clutch Spring	£12.20 £10.17
6	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.62 £3.85
7	HP54414-VA3-P00 In stock	Clutch Lever Return Spring	£6.52 £5.43
8	HP54530-VH7-000 In stock	Roto-Stop Cable	£26.04 £21.70
9	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.82 £6.52
10	HP75128-VE1-R00 Available to backorder	Roto-Stop Arm	£14.84 £12.37
11	HP75161-VE0-L01 Available to backorder	Roto-Stop Lever Assy	£72.36 £60.30
12	HP75165-VE0-L00 In stock	Ratchet Push Rod	£11.04 £9.20
13	HP75166-VE1-R00 In stock	Lever Lock	£4.32 £3.60
14	HP75168-VA4-000 In stock	Pawl Spring	£6.48 £5.40
15	HP90106-VA4-800 Available to backorder	Clutch Lever Pin	£11.96 £9.97
17	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£6.76 £5.63
18	HP90753-VA3-J00 Available to backorder	Lever Hinge Lock Pin	£4.80 £4.00
19	HP90754-VA9-P40 In stock	Cable Joint Pin	£3.32 £2.77
20	HP94101-06000 Available to backorder	Plain Washer 6Mm	£1.19 £0.99
21	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
22	HP94201-16120 Available to backorder	Split Pin	£1.28 £1.07
23	HP94251-06000 In stock	Lock Pin 6Mm	£1.14 £0.95
24	HP94251-08000 In stock	Lock Pin 8Mm	£1.86 £1.55
