Honda HRX537C - TDE - MAGA 1000001-1299999 Transmission Diagram

Description

Honda HRX537C - TDE Rotary Mower Parts Diagram

	Part No.	Details

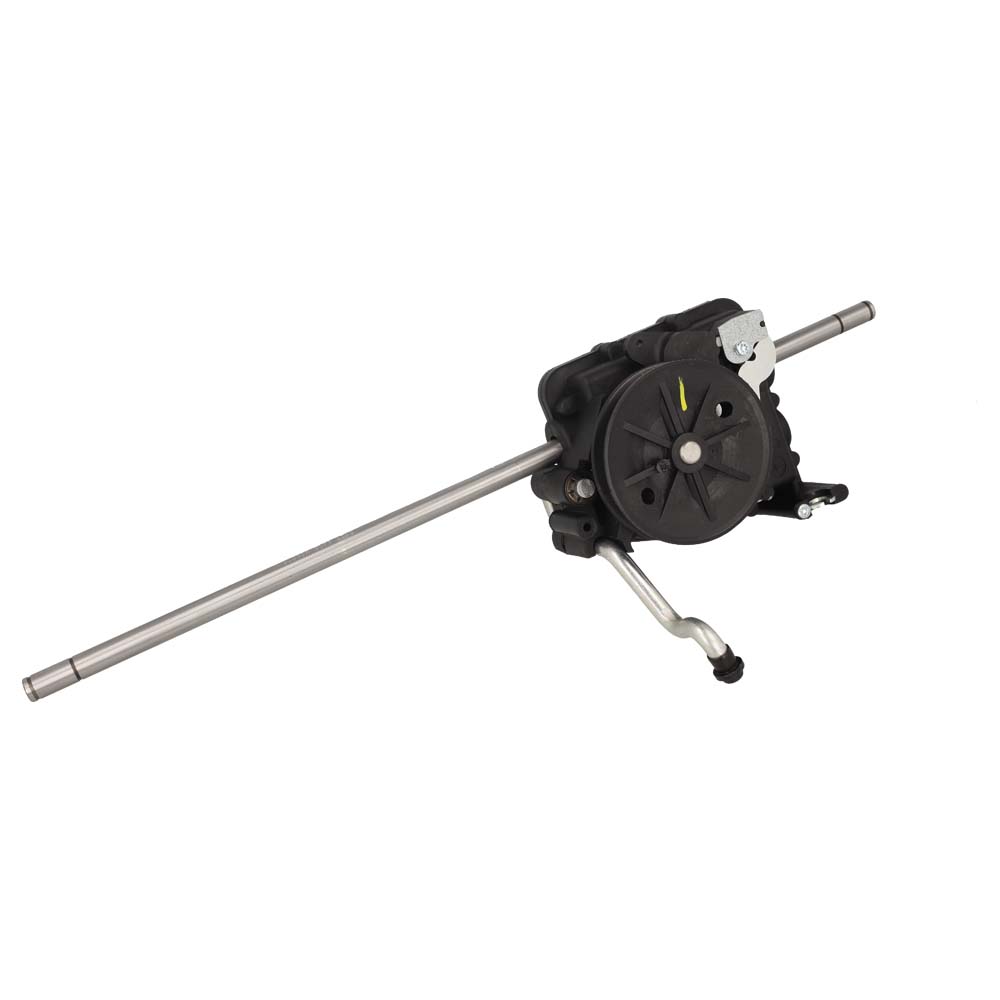

1	HP20001-VH7-003 Available to backorder	Transmission Assy	£230.40 £192.00
2	HP21557-VE2-800 Available to backorder	Tension Spring Plate	£9.46 £7.88
3	HP22422-VF0-E50 Available to backorder	Pulley	£27.60 £23.00
4	HP24468-VE1-T00 Available to backorder	Wheel Tension Spring	£12.60 £10.50
5	HP93913-252-20 Available to backorder	Tapping Screw 5X12 Po	£1.39 £1.16
7	HP94305-50362 Available to backorder	Pin	£3.35 £2.79
9	HP23439-VE0-851 In stock	Clutch Arm Return Spring	£4.98 £4.15
10	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.68 £4.73
