Honda HRX537C - TDE - MAGA 1000001-1299999 Handle Pipe Diagram

Name: Honda HRX537C - TDE - MAGA 1000001-1299999 Handle Pipe Diagram
SKU: hrx537c_tde_maga_1000001_1299999_handle_pipe-group
Price: 0.67 GBP
Availability: InStock

Part No. hrx537c_tde_maga_1000001_1299999_handle_pipe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX537C - TDE - MAGA 1000001-1299999 Handle Pipe Diagram

Description

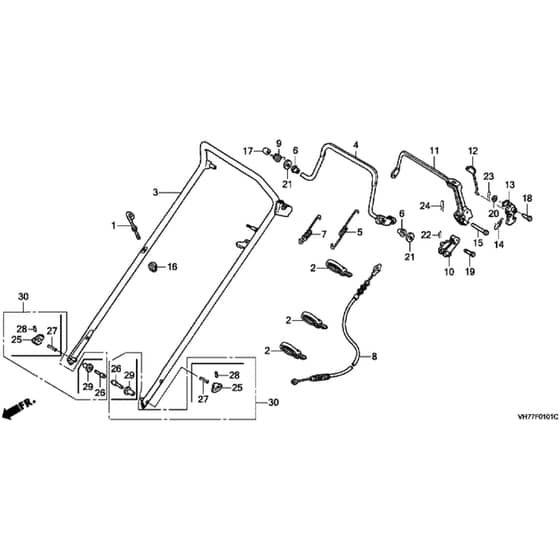

Honda HRX537C - TDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP28475-VE1-R00 Available to backorder	Guide	£3.11 £2.59
2	HP32901-VB5-A00 In stock	Cable Tie	Was £6.12 £5.10 Special Price £4.30 £3.58

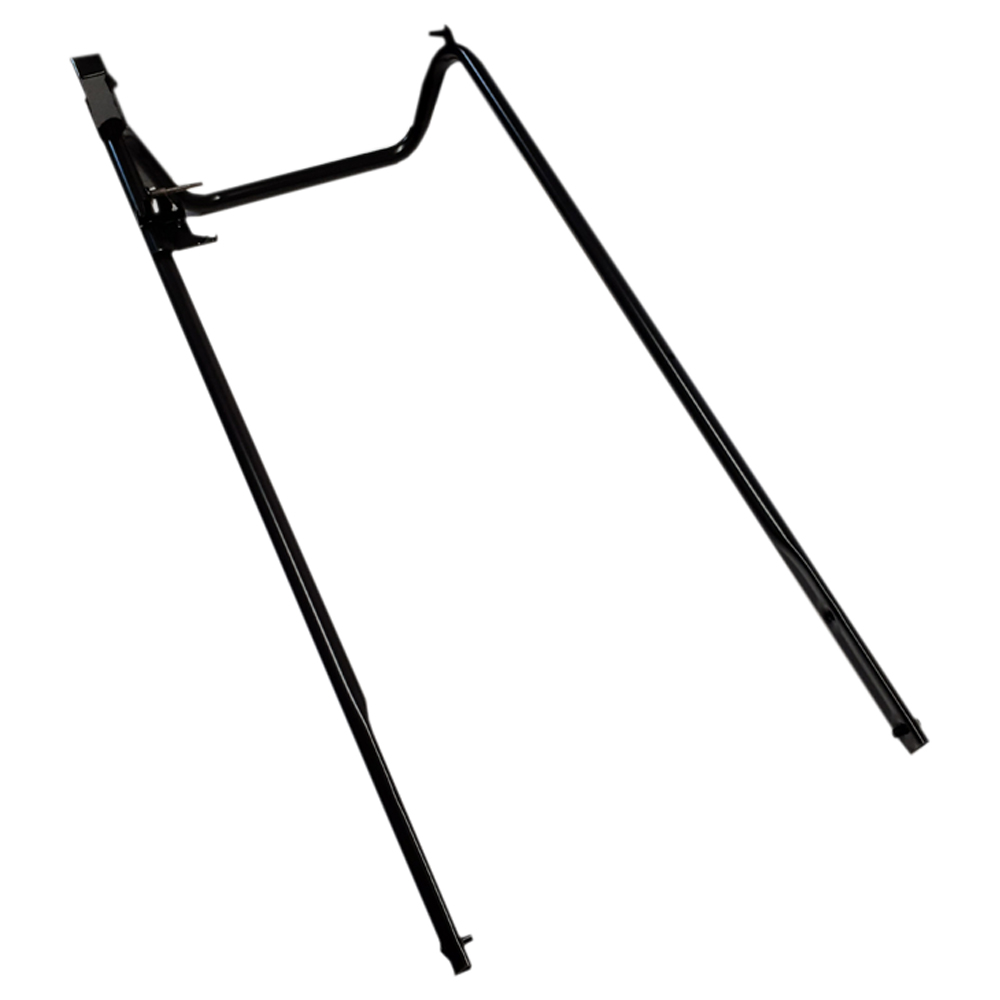

4	HP53110-VE1-R01ZA Available to backorder	Handle	£137.04 £114.20
5	HP54410-VE1-R00 Available to backorder	Clutch Lever	£29.48 £24.57
6	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.55 £3.79
7	HP54510-VH7-010 Available to backorder	Clutch Cable	£25.43 £21.19
8	HP54530-VH7-800 Available to backorder	O.P.C Cable	£19.31 £16.09
9	HP75118-VA3-J00 In stock	Stop Return Spring R H	£8.56 £7.13
10	HP75190-VE1-E00ZA Available to backorder	Brake Lever	£160.20 £133.50
11	HP90106-VA4-800 Available to backorder	Clutch Lever Pin	£12.19 £10.16
12	HP90303-VG3-000 In stock	Lock Nut 6Mm	£0.80 £0.67
13	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£7.00 £5.83
14	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
15	HP94251-08000 In stock	Lock Pin 8Mm	£1.84 £1.53
