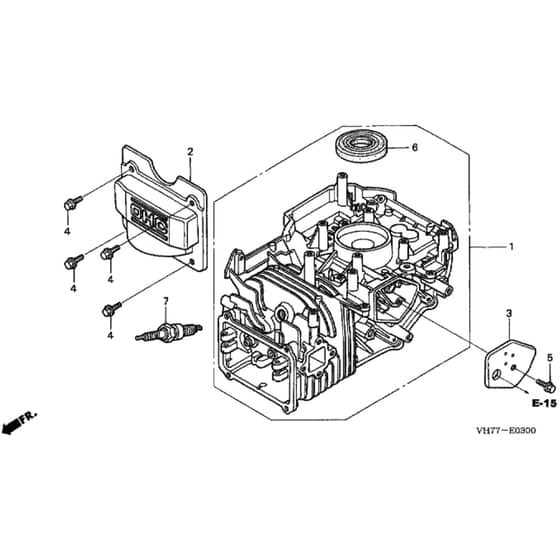

Honda HRX537C - TDE - MAGA 1000001-1299999 Cylinder Barrel Diagram

Description

Honda HRX537C - TDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP06120-Z0Y-305 Available to backorder	Cylinder Kit	£282.00 £235.00
2	HP12311-ZL8-D00 Available to backorder	Rocker Cover	£8.90 £7.42
3	HP12355-ZL8-000 Available to backorder	Breather Cover Assy	£10.72 £8.93
4	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
5	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
6	HP91201-Z0Y-003 Available to backorder	Oil Seal 25.4 X 62 X 6	£4.43 £3.69
7	2136 In stock	Plug Spark (Bpr6Es) (Ngk)	£2.81 £2.34
