Honda HRX537C - TDE - MAGA 1000001-1299999 Carburettor Diagram

Name: Honda HRX537C - TDE - MAGA 1000001-1299999 Carburettor Diagram
SKU: hrx537c_tde_maga_1000001_1299999_carburettor-group
Price: 1.9 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

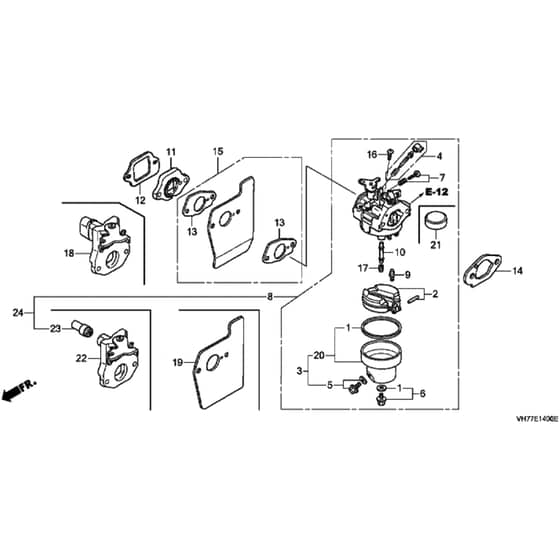

Honda HRX537C - TDE - MAGA 1000001-1299999 Carburettor Diagram

Description

Honda HRX537C - TDE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16010-883-015 In stock	Gasket Set	£12.22 £10.18
2	HP16013-ZL1-003 Available to backorder	Float Set	£36.11 £30.09
3	HP16015-887-782 Available to backorder	Float Bowl Set	£45.14 £37.62
4	HP16016-ZG0-W00 Available to backorder	Screw Set	£13.56 £11.30
5	HP16024-ZE1-811 Available to backorder	Drain Screw Set	£13.56 £11.30
6	HP16028-ZK7-S91 Available to backorder	Screw Set	£14.59 £12.16
7	HP16029-ZG0-901 Available to backorder	Throttle Stop Screw Set	£14.17 £11.81
8	HP16100-Z0Y-013 Available to backorder	Carburetor Assy	£101.40 £84.50
9	HP16155-ZM0-013 In stock	Float Valve	£46.32 £38.60
10	HP16166-Z0Y-003 Available to backorder	Main Nozzle	£35.27 £29.39
11	HP16211-ZL8-000 In stock	Carburettor Insulator	£4.98 £4.15
12	HP16212-ZL8-000 In stock	Insulator Gasket	£2.86 £2.38
13	HP16221-883-800 In stock	Carburettor Gasket	£2.28 £1.90
14	HP16228-ZL8-000 In stock	Carburettor Gasket	£2.92 £2.43
15	HP19650-ZM0-000 In stock	Air Guide Assy	£11.26 £9.38
16	HP93500-050-060H Available to backorder	Pan Screw	£2.35 £1.96
17	HP99101-124-0680 Available to backorder	Jet	£12.22 £10.18
17	HP99101-1240650 Available to backorder	Jet	£12.22 £10.18
17	HP99101-124-0700 Available to backorder	Jet	£12.22 £10.18
