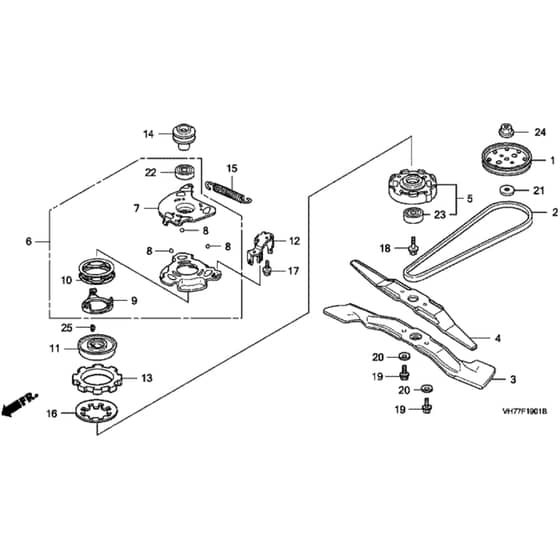

Honda HRX537C - HXE - MAGA 1000001-1299999 Rotary Blade Diagram

Name: Honda HRX537C - HXE - MAGA 1000001-1299999 Rotary Blade Diagram
SKU: hrx537c_hxe_maga_1000001_1299999_rotary_blade-group
Price: 0.45 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX537C - HXE - MAGA 1000001-1299999 Rotary Blade Diagram

Description

Honda HRX537C - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP22420-VH7-A00 Available to backorder	Pulley	£55.91 £46.59
2	HP22432-VH7-A00 In stock	Belt	£29.80 £24.83
3	HP72511-VH7-000 In stock	Blade	£48.60 £40.50
4	HP72531-VH7-000 In stock	Upper Blade	£49.28 £41.07
5	HP72600-VE1-G00 Available to backorder	Blade Holder Assy	£72.83 £60.69
6	HP75110-VE1-R00 Available to backorder	Ball Control Plate	£93.36 £77.80
7	HP75111-VE1-G01 Available to backorder	Control Plate	£16.79 £13.99
8	HP75117-VE1-G00 Available to backorder	Bearing	£3.40 £2.83
9	HP75127-VE1-G00 Available to backorder	Spring Hook Plate	£13.26 £11.05
10	HP75132-VE1-G00 Available to backorder	Spring	£10.36 £8.63
11	HP75141-VE1-R00 Available to backorder	Drive Disk	£29.62 £24.68
12	HP75143-VE1-G00 Available to backorder	Return Spring Hook	£8.02 £6.68
13	HP75150-VE1-R00 In stock	Driven Disk Assy	£46.74 £38.95
14	HP75162-VE1-G00 Available to backorder	Pulley	£36.89 £30.74
15	HP75185-VE1-G00 Available to backorder	Clutch Return Spring	£12.12 £10.10
16	HP75183-VE1-G01 In stock	Clutch Spring	£9.10 £7.58
17	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
18	HP90101-VE1-G00 Available to backorder	Flange Bolt 10 X 24	£2.77 £2.31
19	HP90105-960-710 In stock	Blade Bolt	£2.76 £2.30
20	HP90502-VG3-000 Available to backorder	Spring Washer 10Mm	£1.64 £1.37
21	HP90504-VH7-A00 Available to backorder	Washer	£1.10 £0.92
23	HP91102-VA4-013 Available to backorder	Bearing	£25.38 £21.15
24	HP94050-10080 Available to backorder	Flange Nut 10Mm	£3.12 £2.60
25	HP94401-16150 In stock	Woodruff Key	£0.54 £0.45
