Honda HRX476C2 - QYEH Rotary Mower Parts

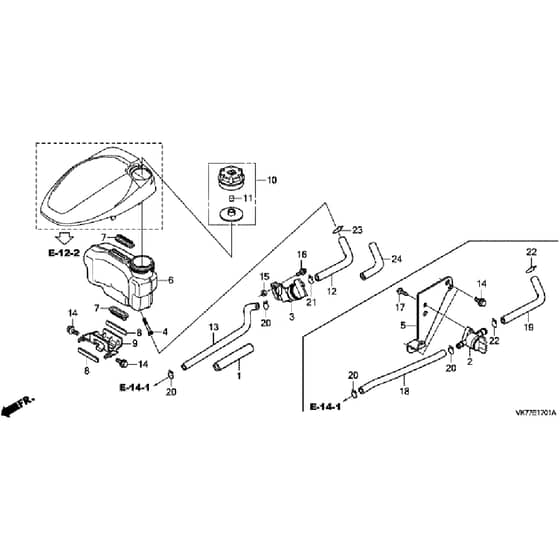

Honda HRX476C2 - QYEH - Fuel Tank Diagram

Honda HRX476C2 - QYEH - Fuel Tank Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX476C2 - QYEH - Fuel Tank Diagram

Honda HRX476C2 - QYEH - Fuel Tank Diagram

Description

Honda HRX476C2 - QYEH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HP16854-ZH8-000 Available to backorder	Support Rubber		£3.70 £3.08
	3		HP16950-ZM0-003 Available to backorder	Fuel Tap Assy		£39.43 £32.86
	4		HP16952-Z9R-000 In stock	Fuel Strainer		£9.36 £7.80
	6		HP17511-Z9L-800 Available to backorder	Fuel Tank		£37.00 £30.83
	7		HP17532-Z9L-000 Available to backorder	Tank Mounting Rubber		£7.08 £5.90
	8		HP17533-Z9L-000 Available to backorder	Tank Mounting Rubber		£4.18 £3.48
	9		HP17561-Z9L-000 Available to backorder	Fuel Tank Stay		£9.78 £8.15
	10		HP17620-Z9L-800 Available to backorder	Fuel Cap		£17.90 £14.92
	11		HP17622-888-010 In stock	Breather Sponge		£1.50 £1.25
	12		HP17701-Z9L-820 Available to backorder	Fuel Pipe		£9.43 £7.86
	13		HP17702-ZM0-800 Available to backorder	Fuel Pipe		£10.24 £8.53
	14		HP90014-952-000 Available to backorder	Flange Bolt 6 X 14		£3.73 £3.11
	15		HP91501-Z0L-800 Available to backorder	Collar		£2.82 £2.35
	16		HP93891-0501008 Available to backorder	Washer		£1.50 £1.25
	20		HP95002-02080 Available to backorder	Tube Clip		£1.08 £0.90
	21		HP95002-02100 In stock	Tube Clip		£1.22 £1.02
	23		HP95002-70000 Available to backorder	Tube Clip		£1.04 £0.87
	24		HP95003-370-0160M Available to backorder	Tube		£20.42 £17.02
