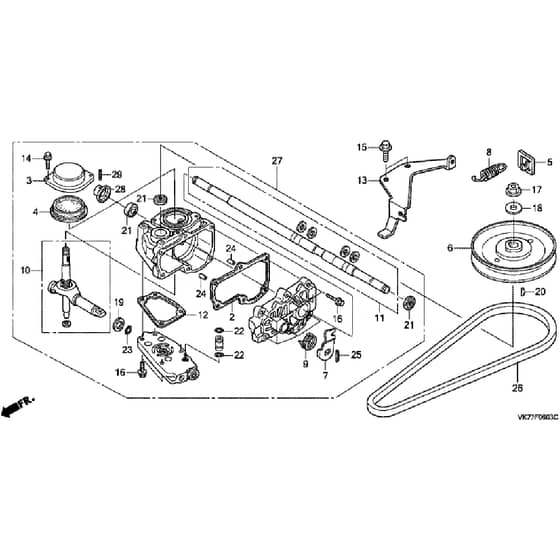

Honda HRX476C2 - HYEH - Transmission Diagram

Honda HRX476C2 - HYEH - Transmission Diagram
Honda HRX476C2 - HYEH - Transmission Diagram

Description

Honda HRX476C2 - HYEH Rotary Mower Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  2 Gasket HP21115-VE5-000
Gasket
 Out of stock
£8.34 £6.95

  3 Oil Cap Assy HP21230-VE5-A00
Oil Cap Assy
 Out of stock
£24.31 £20.26

  4 Oil Cap O Ring HP21235-VE5-303
Oil Cap O Ring
 Out of stock
£9.32 £7.77

  5 Tension Spring Plate HP21557-VE0-800
Tension Spring Plate
 Out of stock
£4.20 £3.50

  6 Pulley HP22420-VE0-J50
Pulley
 Out of stock
£69.24 £57.70

  7 Control Arm HP22533-VH7-A00
Control Arm
 Out of stock
£19.32 £16.10

  8 Spring HP42768-767-000
Spring
 Out of stock
£7.16 £5.97

  9 Control Arm Return Spring HP24134-VE5-A00
Control Arm Return Spring
 Out of stock
£2.94 £2.45

  10 Pump Set HP25010-VE5-A01
Pump Set
 Out of stock
£182.76 £152.30

  11 Shaft Set HP25013-VE5-A30
Shaft Set
 Out of stock
£193.80 £161.50

  12 Gasket HP25513-VE5-000
Gasket
 Out of stock
£9.78 £8.15

  13 Wire Holder HP51125-VE0-J50
Wire Holder
 Out of stock
£19.02 £15.85

  14 Flange Bolt 5X12 HP90003-892-000
Flange Bolt 5X12
 Out of stock
£2.23 £1.86

  15 Flange Bolt 6 X 16 HP90029-888-000
Flange Bolt 6 X 16
 Out of stock
£4.36 £3.63

  16 Flange Bolt HP90123-VA4-800
Flange Bolt
 Out of stock
£3.24 £2.70

  17 Nut HP90304-GA6-003
Nut
 Out of stock
£4.92 £4.10

  18 Thrust Washer HP90405-KV3-000
Thrust Washer
 Out of stock
£3.71 £3.09

  19 Thrust Washer HP90453-235-000
Thrust Washer
 Out of stock
£2.84 £2.37

  20 Woodruff Key HP90751-VE2-M00
Woodruff Key
 Out of stock
£0.35 £0.29

  21 Oil Seal HP91204-KE8-003
Oil Seal
 Out of stock
£7.08 £5.90

  22 O-Ring HP91351-VE5-000
O-Ring
 Out of stock
£2.36 £1.97

  23 O-Ring HP91352-VE5-000
O-Ring
 Out of stock
£3.08 £2.57

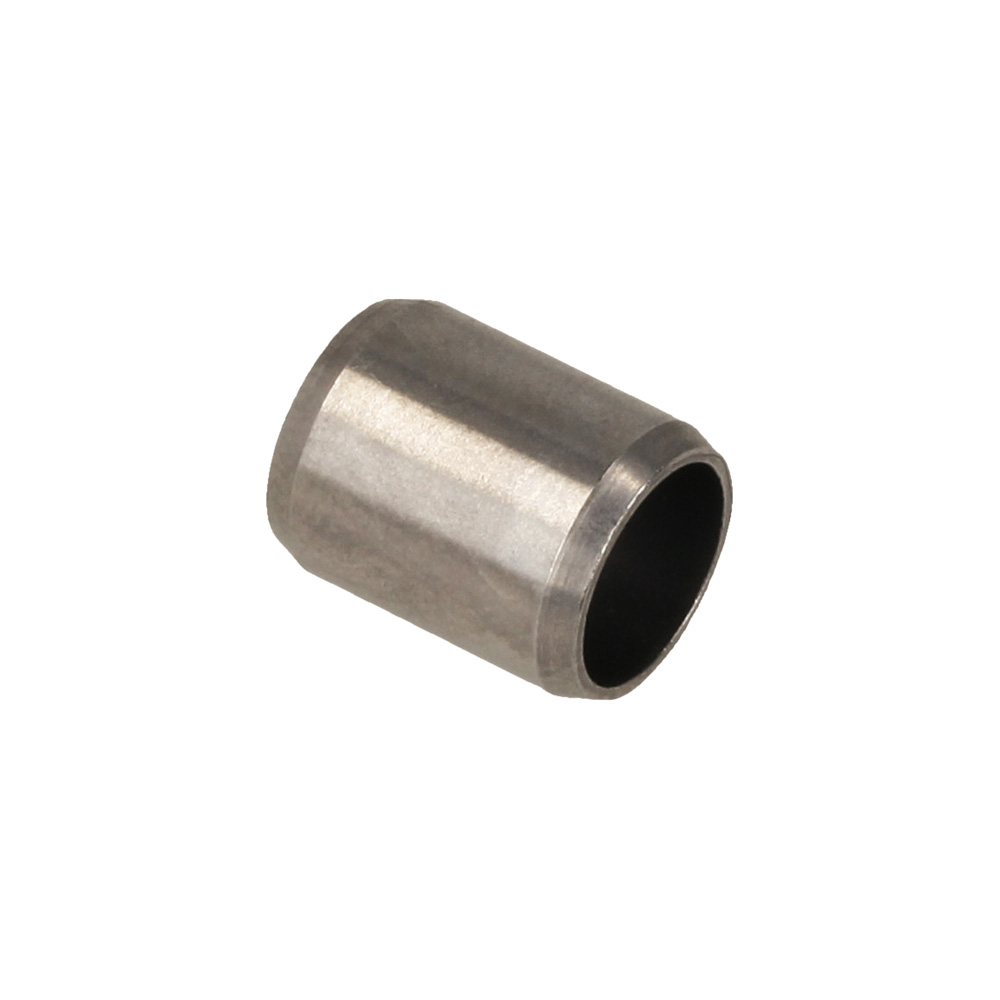

  24 Dowel Pin 8 X 10 HP94301-08100
Dowel Pin 8 X 10
 Out of stock
£2.52 £2.10

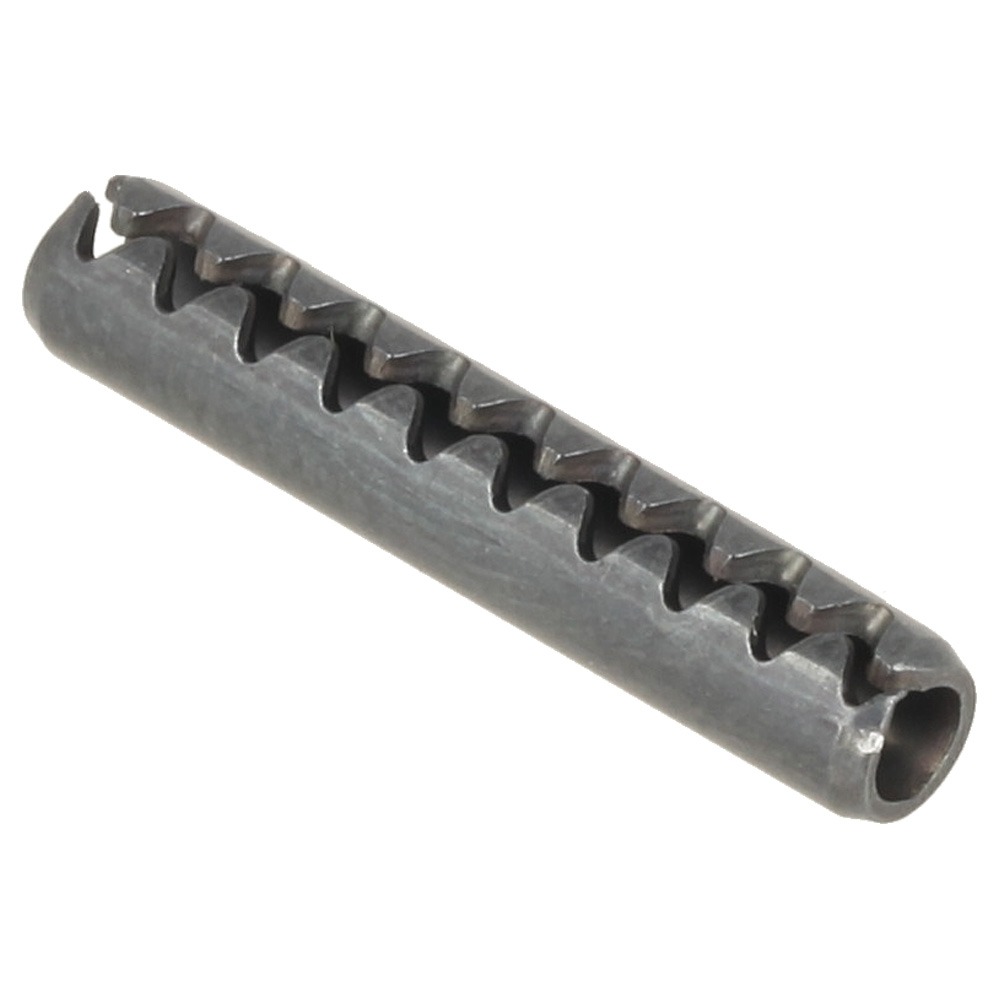

  25 Spring Pin 4 X 22 HP94305-40222
Spring Pin 4 X 22
 Out of stock
£2.52 £2.10

  26 Belt HP22431-VK8-J50
Belt
 Out of stock
£30.94 £25.78

  27 Transmission Assy HP20001-VE5-A32
Transmission Assy
 Out of stock
£462.32 £385.27

  28 Grass Guard HP21912-VE5-A00
Grass Guard
 Out of stock
£4.73 £3.94

  29 Pin HP90752-VE5-A00
Pin
 Out of stock
£7.80 £6.50


Description

Honda HRX476C2 - HYEH Rotary Mower Parts Diagram
