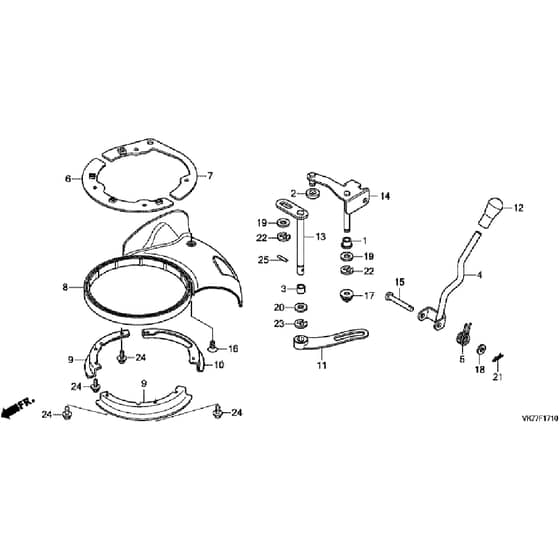

Honda HRX476C2 - HYEH - Shutter Diagram

Name: Honda HRX476C2 - HYEH - Shutter Diagram
SKU: hrx476c2_hyeh_shutter-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Honda HRX476C2 - HYEH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP24621-921-010 Available to backorder	Brush Shaft	£7.87 £6.56
2	HP50020-046-300 Available to backorder	Support	£6.60 £5.50

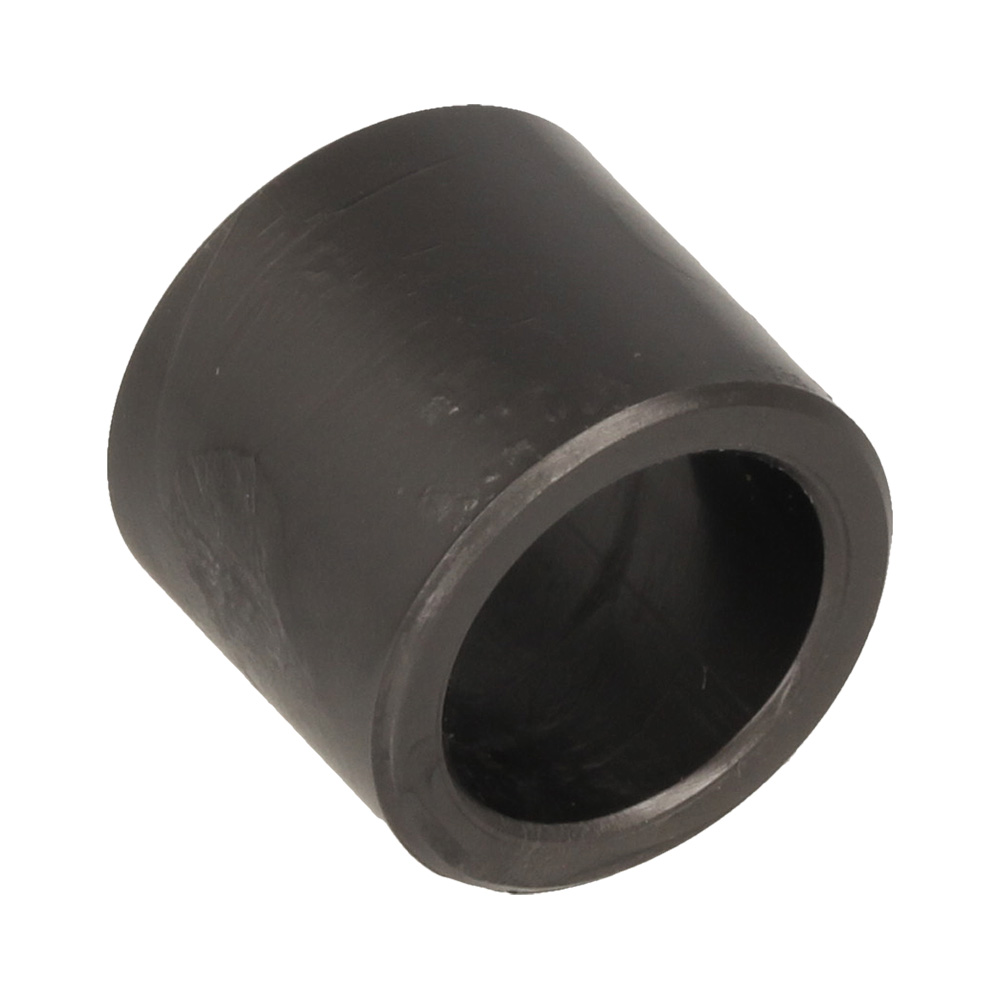

3	HP51312-GN2-003 Available to backorder	Push	£6.60 £5.50
4	HP74710-VK8-J50 Available to backorder	Shutter Lever	£45.67 £38.06
5	HP76174-VK8-J50 Available to backorder	Spring	£39.38 £32.82
6	HP76256-VK8-J50 Available to backorder	Plate	£21.24 £17.70
7	HP76257-VK8-J50 Available to backorder	Plate	£19.68 £16.40
8	HP76262-VK8-J50 Available to backorder	Shutter	£33.19 £27.66
9	HP76263-VK8-J50 Available to backorder	Holder	£14.32 £11.93
10	HP76264-VK8-J50 Available to backorder	Shutter Holder	£14.32 £11.93

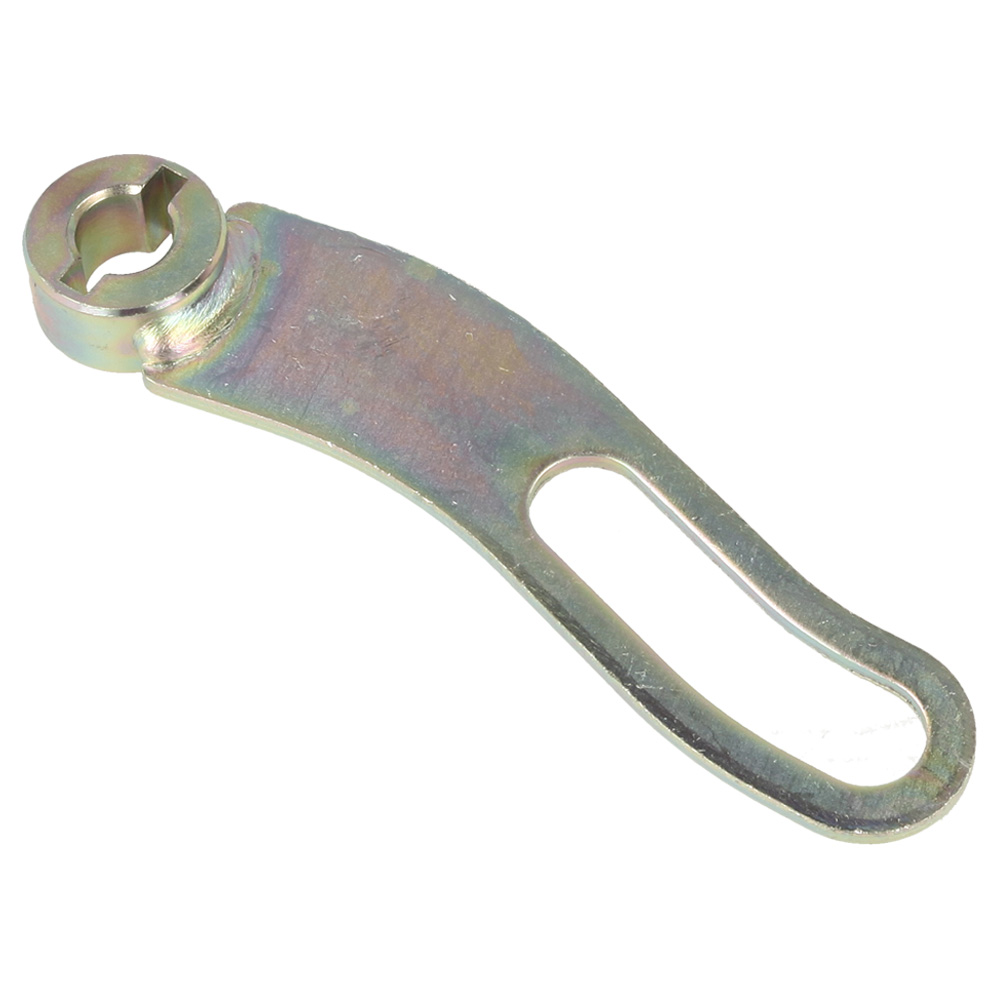

11	HP76265-VK8-J50 Available to backorder	Shutter	£24.24 £20.20
12	HP76272-VK8-J50 Available to backorder	Shutter Grip	£14.52 £12.10
13	HP76275-VK8-J50 Available to backorder	Lever Arm	£20.04 £16.70
14	HP76315-VK8-J50 Available to backorder	Shutter Rod	£23.30 £19.42
15	HP77226-750-003 Available to backorder	Pin	£6.26 £5.22
16	HP90164-KEJ-900 Available to backorder	Screw 6 X 12	£5.38 £4.48
17	HP91557-VK8-J50 Available to backorder	Collar	£12.68 £10.57
18	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
19	HP94101-10000 Available to backorder	Plain Washer 10Mm	£1.16 £0.97

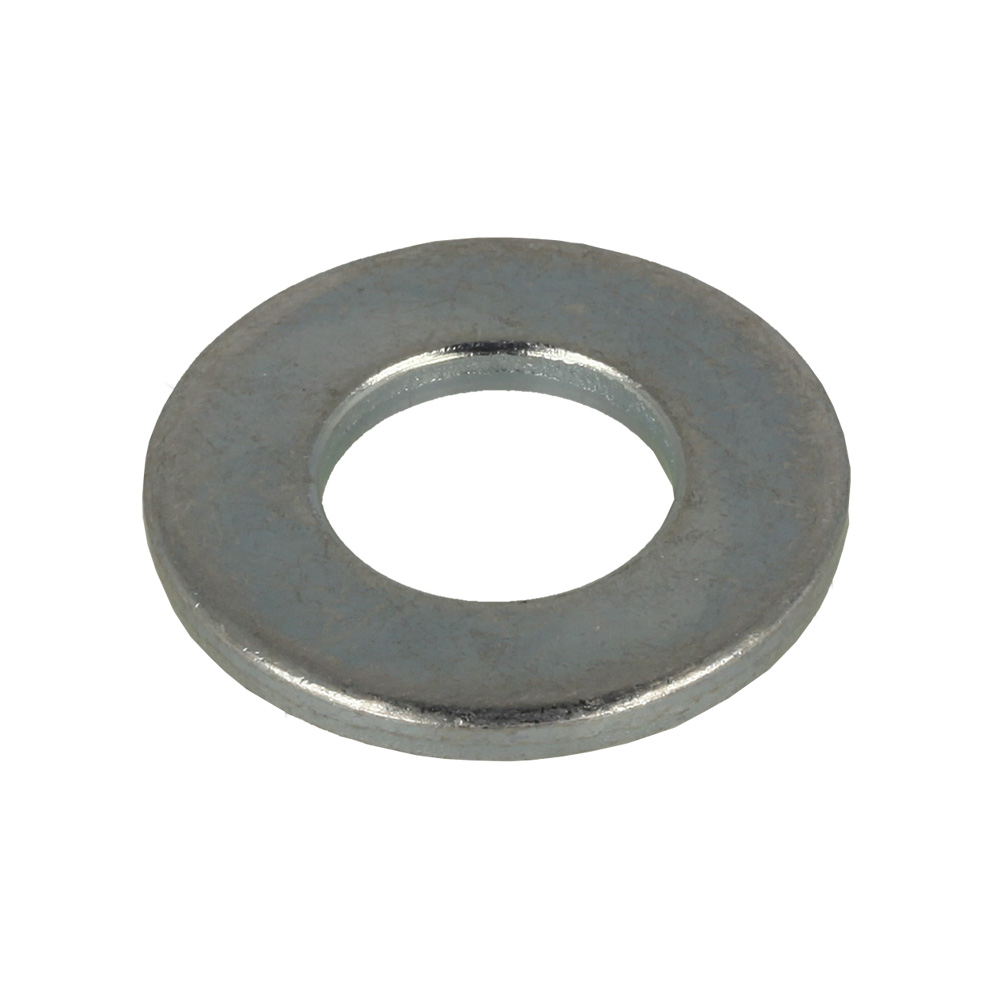

20	HP94101-12000 Available to backorder	Plain Washer 12Mm	£1.25 £1.04
21	HP94251-08000 In stock	Lock Pin 8Mm	£1.86 £1.55

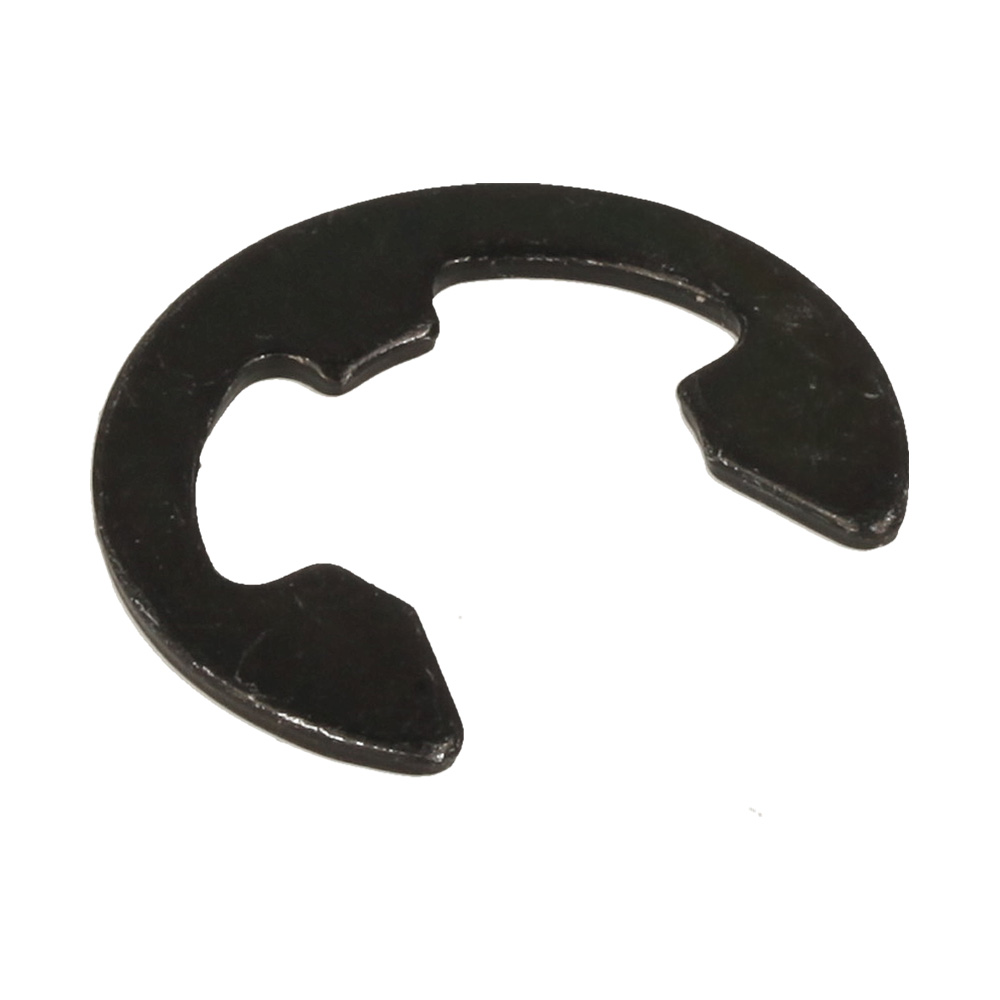

22	HP94540-09018 Available to backorder	E Ring	£5.14 £4.28
23	HP94540-10017 Available to backorder	E Ring	£6.96 £5.80
24	HP95701-0801000 Available to backorder	Flange Bolt 8 X 10	£1.75 £1.46
25	HP96220-40198 Available to backorder	Roller	£0.66 £0.55
