Honda HRX476C1 - VYEE - MASF 1130001- Rotary Blade Diagram

Description

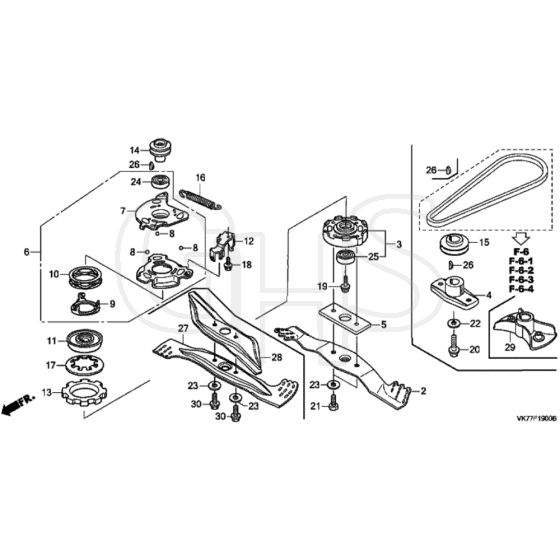

Honda HRX476C1 - VYEE Rotary Mower Parts Diagram

	Part No.	Details
3	HP72600-VE1-G00 Available to backorder	Blade Holder Assy	£71.04 £59.20
6	HP75110-VE1-R00 Available to backorder	Ball Control Plate	£88.92 £74.10
7	HP75111-VE1-G01 Available to backorder	Control Plate	£16.94 £14.12
8	HP75117-VE1-G00 Available to backorder	Bearing	£3.42 £2.85
9	HP75127-VE1-G00 Available to backorder	Spring Hook Plate	£13.38 £11.15
10	HP75132-VE1-G00 Available to backorder	Spring	£10.45 £8.71
11	HP75141-VE1-R00 Available to backorder	Drive Disk	£29.89 £24.91
12	HP75143-VK8-J50 Available to backorder	Spring Hook	£9.60 £8.00
13	HP75150-VE1-R00 In stock	Driven Disk Assy	£50.09 £41.74
14	HP75162-Z0L-000 Available to backorder	Pulley	£41.36 £34.47
15	HP75162-VG4-L00 Available to backorder	Pulley	£49.09 £40.91
16	HP75185-VE1-G00 In stock	Clutch Return Spring	£12.35 £10.29
17	HP75183-VE1-G01 In stock	Clutch Spring	£9.74 £8.12
18	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
19	HP90101-VE1-G00 Available to backorder	Flange Bolt 10 X 24	£2.80 £2.33
20	HP90109-VG3-000 Available to backorder	Flange Bolt 3/8-24 X 1	£1.20 £1.00
23	HP90481-430-000 In stock	Washer	£1.28 £1.07
25	HP91102-VA4-013 In stock	Bearing	£27.20 £22.67
26	HP90751-VG3-000 Available to backorder	Key	£0.47 £0.39
26	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
27	HP72511-VK8-J50 In stock	Blade	£46.58 £38.82
28	HP72531-VK8-J50 In stock	Upper Blade	£52.20 £43.50
29	HP72610-VG3-020 Available to backorder	Blade Holder	£60.52 £50.43
30	HP90105-VH3-K11 In stock	Flange Bolt 10 X 20	£2.99 £2.49
30	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.38 £3.65
