Honda HRX476C1 - VYEE - MASF 1130001- Rear Wheel HKEE, VKEE, VYEE Diagram

Name: Honda HRX476C1 - VYEE - MASF 1130001- Rear Wheel HKEE, VKEE, VYEE Diagram
SKU: hrx476c1_vyee_masf_1130001_rear_wheel_hkee_vkee_vyee-group
Price: 0.33 GBP
Availability: InStock

Part No. hrx476c1_vyee_masf_1130001_rear_wheel_hkee_vkee_vyee-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

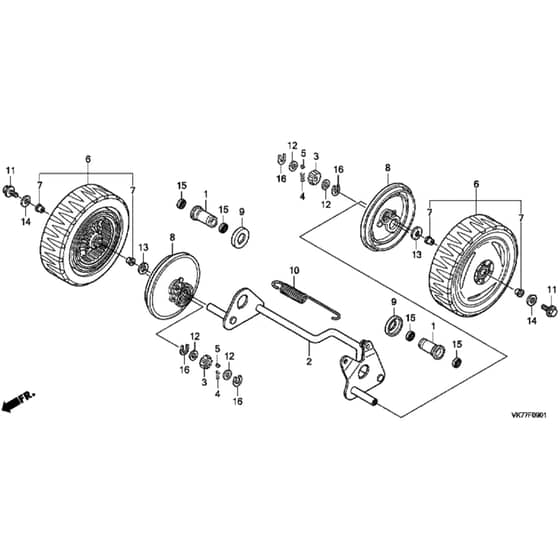

Honda HRX476C1 - VYEE - MASF 1130001- Rear Wheel HKEE, VKEE, VYEE Diagram

Description

Honda HRX476C1 - VYEE Rotary Mower Parts Diagram

	Part No.	Details

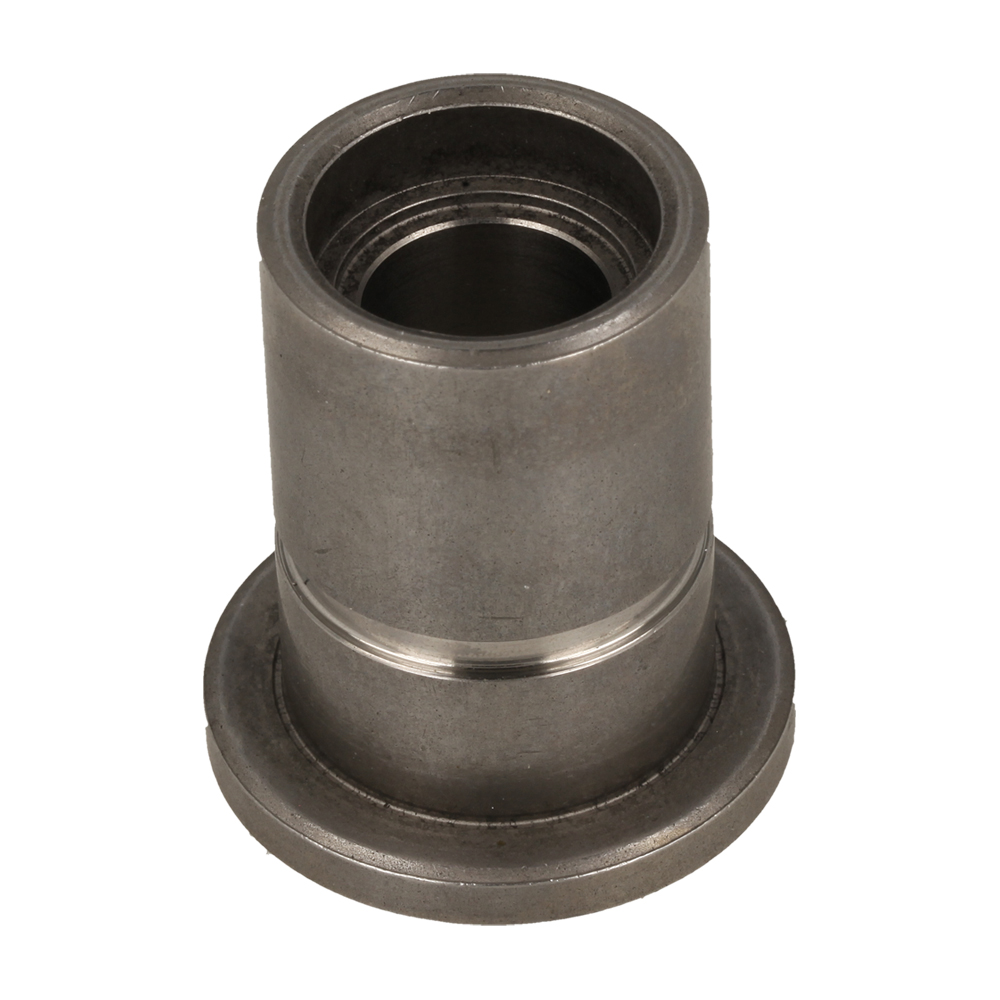

1	HP41418-VK8-J50 Available to backorder	Drive Shaft Collar	£30.72 £25.60
2	HP42310-VK8-J50 Available to backorder	Axle Shaft	£83.52 £69.60
2	HP42310-VK8-M50 Available to backorder	Axle Shaft	£83.52 £69.60
3	HP42661-VH3-850 In stock	Pinion Gear	£7.58 £6.32
4	HP42668-VE2-800 In stock	Pawl Spring	£1.21 £1.01
5	HP42672-VE2-800 In stock	Ratchet Key	£4.33 £3.61
6	HP42710-VK8-J50ZA Available to backorder	Wheel	£48.62 £40.52
7	HP42716-VE0-800 In stock	Wheel Bush	£3.97 £3.31
8	HP42866-VE0-800 Available to backorder	Wheel Cover	£5.18 £4.32
9	HP42868-VK8-750 Available to backorder	Wheel Cap	£2.87 £2.39
10	HP42992-VK8-J50 Available to backorder	Balance Spring	£46.66 £38.88
11	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
12	HP90452-166-600 In stock	Washer	£0.40 £0.33
13	HP90505-VA9-K40 In stock	Washer 13Mm	£2.20 £1.83
14	HP90506-VA9-K41 Available to backorder	Wheel Washer	£4.24 £3.53
15	HP91051-VK8-750 In stock	Bearing	£6.46 £5.38
16	HP94510-12000 In stock	External Circlip 12Mm	£1.19 £0.99
