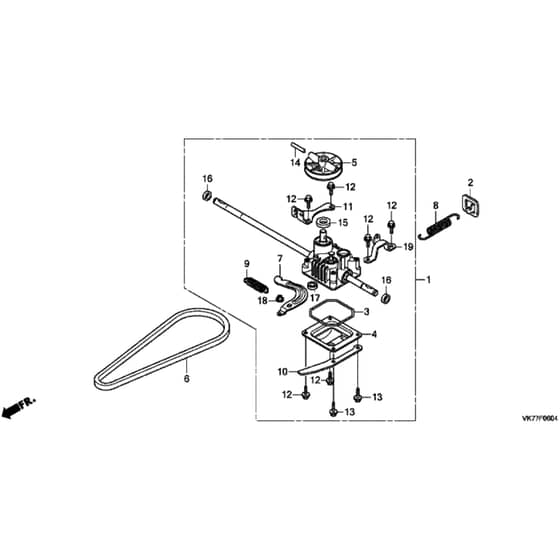

Honda HRX476C1 - PKEE - MASF 1130001- Transmission VKEE, VYEE Diagram

Description

Honda HRX476C1 - PKEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP20001-VL0-M90 Available to backorder	Transmission Assy	£223.80 £186.50
2	HP21557-VE0-800 Available to backorder	Tension Spring Plate	£4.34 £3.62
3	HP21581-VL0-M00 Available to backorder	O Ring	£4.16 £3.47
5	HP22421-VL0-M90 Available to backorder	Pulley	£47.46 £39.55
6	HP22431-VF0-E51 Available to backorder	V-Belt	£31.06 £25.88
7	HP22533-VL0-M90 Available to backorder	Control Arm	£9.78 £8.15
8	HP42768-767-000 Available to backorder	Spring	£7.38 £6.15
9	HP43151-VL0-B00 Available to backorder	Return Spring	£5.26 £4.38
10	HP50326-VL0-M90 Available to backorder	Stopper Plate	£8.24 £6.87
11	HP51125-VL0-M90 Available to backorder	Wire Holder	£6.26 £5.22
12	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£5.42 £4.52
14	HP90752-VH7-L00 Available to backorder	Pin	£2.40 £2.00
15	HP91251-VL0-B00 Available to backorder	Oil Seal 12.7 X 28.6 X 6.4	£4.92 £4.10
16	HP91251-VL0-M00 Available to backorder	Oil Seal 12.7 X 22.2 X 6.4	£4.84 £4.03
17	HP91252-VL0-B00 Available to backorder	Oil Seal	£3.36 £2.80
18	HP94050-06000 In stock	Flange Nut 6Mm	£3.22 £2.68
19	HP51177-VL0-M90 Available to backorder	Bracket	£14.12 £11.77
