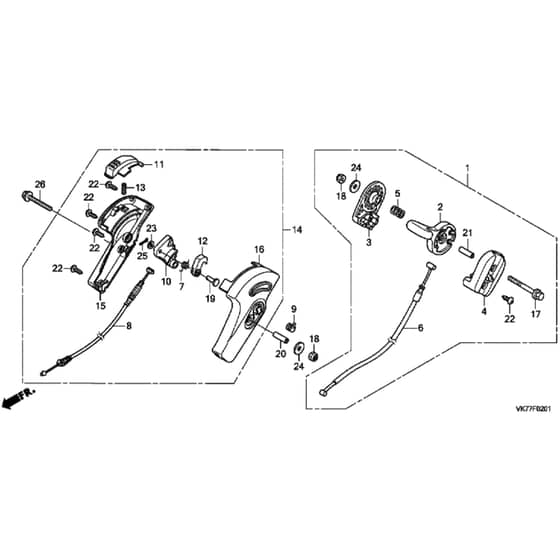

Honda HRX476C1 - PKEE - MASF 1130001- Throttle Lever Diagram

Description

Honda HRX476C1 - PKEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP17850-VK8-D50 Available to backorder	Throttle Lever Assy	£32.17 £26.81
1	HP17850-VK8-M50 Available to backorder	Throttle Assy	£26.38 £21.98
2	HP17851-VH7-G50 Available to backorder	Throttle Lever	£7.78 £6.48
3	HP17853-VL0-B00 Available to backorder	Throttle Lever Case R H	£23.11 £19.26
4	HP17856-VL0-B00 Available to backorder	Throttle Lever Case L H	£27.77 £23.14
5	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
6	HP17910-VK8-D50 Available to backorder	Throttle Cable	£55.86 £46.55
6	HP17910-VK8-M50 In stock	Throttle Cable	£63.19 £52.66
7	HP54414-VL0-C00 Available to backorder	Lock Lever Return Spring	£9.12 £7.60
8	HP54530-VK8-M50 Available to backorder	Roto-Stop Cable	£48.11 £40.09
9	HP75118-VL0-C00 Available to backorder	Stop Return Spring R H	£13.74 £11.45
10	HP75128-VL0-C00 Available to backorder	Roto-Stop Arm	£16.20 £13.50
11	HP75165-VL0-C00 Available to backorder	Knob	£13.00 £10.83
12	HP75166-VL0-C00 Available to backorder	Lever Lock	£13.97 £11.64
13	HP75168-VL0-C00 Available to backorder	Return Spring	£60.95 £50.79
14	HP75180-VK8-M50 Available to backorder	Roto-Stop Control	£91.08 £75.90
15	HP75183-VL0-C00 Available to backorder	Roto-Stop Case	£21.23 £17.69
16	HP75186-VL0-C00 Available to backorder	Roto-Stop Case	£21.23 £17.69
17	HP90104-VL0-B00 Available to backorder	Flange Bolt	£1.86 £1.55
18	HP90303-VG3-000 In stock	Lock Nut 6Mm	£0.80 £0.67
19	HP90751-VL0-C00 Available to backorder	Lever Pin	£6.25 £5.21
20	HP91553-VK8-M50 Available to backorder	Collar	£11.46 £9.55
21	HP91555-VL0-B00 Available to backorder	Collar	£5.44 £4.53
22	HP93911-14280 Available to backorder	Self Tapping Screw	£1.86 £1.55
23	HP94101-06800 Available to backorder	Plain Washer 6Mm	£1.03 £0.86
25	HP94251-06000 In stock	Lock Pin 6Mm	£1.22 £1.02
26	HP95701-0606500 Available to backorder	Flange Bolt 6 X 65	£2.21 £1.84
