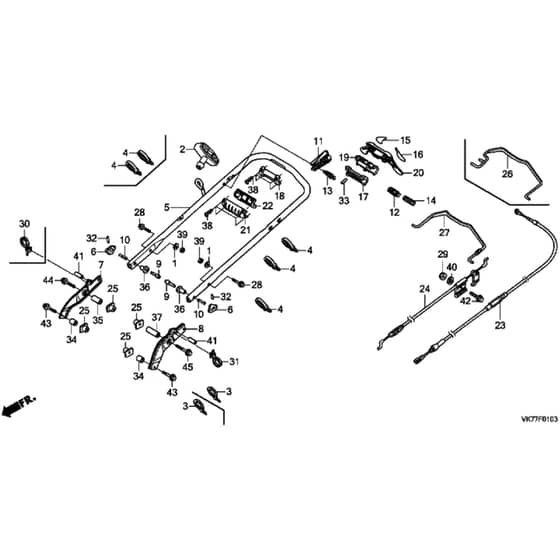

Honda HRX476C1 - PKEE - MASF 1130001- Handle Pipe (2) Diagram

Name: Honda HRX476C1 - PKEE - MASF 1130001- Handle Pipe (2) Diagram
SKU: hrx476c1_pkee_masf_1130001_handle_pipe_2_-group
Price: 0.58 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX476C1 - PKEE - MASF 1130001- Handle Pipe (2) Diagram

Description

Honda HRX476C1 - PKEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16577-ZG3-000 Available to backorder	Spacer	£4.60 £3.83
2	HP28461-ZE7-T01 In stock	Recoil Starter Handle	£6.34 £5.28
3	HP32901-VE0-850 Available to backorder	Cable Tie	£6.30 £5.25
4	HP32901-VK7-000 Available to backorder	Cable Tie	£6.30 £5.25
5	HP53111-VK8-N50 Available to backorder	Handle	£132.68 £110.57
5	HP53111-VK8-M50 Available to backorder	Handle	£110.40 £92.00
6	HP53125-VL0-B00ZA In stock	Handle Grip	£25.52 £21.27
7	HP53131-VK8-J50 Available to backorder	Handle Stay R H	£35.24 £29.37
8	HP53136-VK8-J50 Available to backorder	Handle Stay L H	£35.24 £29.37
9	HP53158-VK8-J50 Available to backorder	Pin	£14.82 £12.35
10	HP53367-VL0-B00 In stock	Handle Adjusting Spring	£1.46 £1.22
11	HP54315-VH7-K00 Available to backorder	Lever Stopper	£40.86 £34.05
12	HP54315-VH7-L00 Available to backorder	Select Lever	£4.20 £3.50
13	HP54316-VH7-K00 Available to backorder	Lock Pin	£2.10 £1.75
14	HP54411-VH7-L00 Available to backorder	Select Lever Spring	£0.70 £0.58
15	HP54421-VL0-L00 Available to backorder	Pad Grip R H	£2.65 £2.21
16	HP54426-VL0-L00 Available to backorder	Pad Grip L H	£2.65 £2.21
17	HP54434-VL0-B00 Available to backorder	Upper Grip Bracket	£5.26 £4.38
18	HP54437-VL0-B00 Available to backorder	Lower Grip Bracket	£5.26 £4.38
19	HP54442-VH7-L00 Available to backorder	Upper Bracket Cover	£3.40 £2.83
20	HP54443-VH7-L00 Available to backorder	Upper Clutch Grip	£11.52 £9.60
21	HP54446-VH7-L00 In stock	Lower Clutch Grip	£10.32 £8.60
22	HP54447-VH7-L00 Available to backorder	Lower Bracket Cover	£3.40 £2.83
23	HP54510-VK8-M50 In stock	Clutch Cable	£18.96 £15.80
24	HP54530-VK8-N50 Available to backorder	O.P.C Cable	£33.86 £28.22
25	HP61304-165-013 Available to backorder	Head Light Set Nut	£5.66 £4.72
26	HP75161-VL0-C00ZA Available to backorder	Roto Stop Lever	£18.08 £15.07
27	HP75191-VH7-K00ZA Available to backorder	Brake Lever	£19.57 £16.31
28	HP90101-VK8-J50 Available to backorder	Flange Bolt	£3.02 £2.52
29	HP90303-VG3-000 Available to backorder	Lock Nut 6Mm	£0.74 £0.62
30	HP90672-SA0-003 Available to backorder	Strap	£8.36 £6.97
32	HP90751-VL0-B00 In stock	Pin	£1.22 £1.02
33	HP91151-VL0-B00 Available to backorder	Roller	£3.16 £2.63
34	HP91551-VE2-000 Available to backorder	Lower Stay Collar	£2.74 £2.28
35	HP91551-VK8-J50 Available to backorder	Collar	£9.84 £8.20
36	HP91551-VL0-B00 In stock	Handle Height Collar	£4.56 £3.80
37	HP91552-VK8-J50 Available to backorder	Collar	£9.84 £8.20
38	HP93911-14280 Available to backorder	Self Tapping Screw	£1.80 £1.50
39	HP94031-08070 Available to backorder	Nut	£3.84 £3.20
40	HP94101-06800 Available to backorder	Plain Washer 6Mm	£0.96 £0.80
41	HP95003-250-0220 Available to backorder	Tube	£1.34 £1.12
42	HP95701-06045-00 Available to backorder	Bolt	£2.00 £1.67
43	HP95701-08022-07 Available to backorder	Bolt	£2.09 £1.74
44	HP95701-08050-07 Available to backorder	Bolt	£1.62 £1.35
45	HP95701-080-7507 Available to backorder	Flange Bolt	£2.40 £2.00
