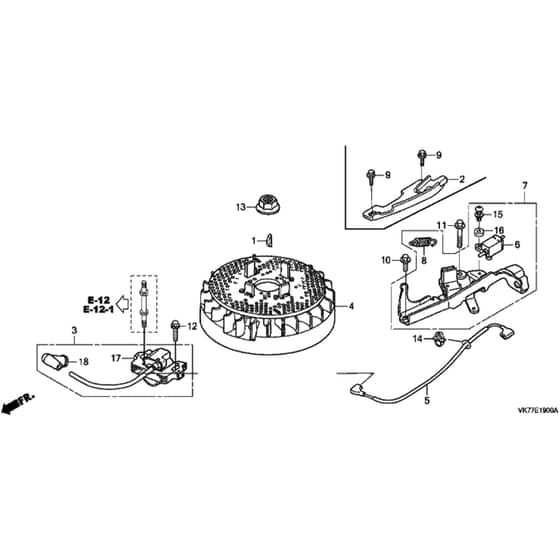

Honda HRX476C1 - PKEE - MASF 1130001- Flywheel Diagram

Description

Honda HRX476C1 - PKEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP13331-357-000 Available to backorder	Woodruff Key	£6.02 £5.02
2	HP19612-Z1L-000 Available to backorder	Plate	£5.88 £4.90
4	HP31105-ZM0-000 Available to backorder	Flywheel Assy	£51.05 £42.54
4	HP31105-ZL8-000 Available to backorder	Flywheel Assy	£136.44 £113.70
5	HP32195-ZM0-000 Available to backorder	Stop Switch	£10.98 £9.15
6	HP35120-ZM0-003 Available to backorder	Engine Stop Switch Assy	£11.82 £9.85
7	HP75100-Z1L-000 Available to backorder	Brake Assy	£50.68 £42.23
8	HP75113-ZM0-000 Available to backorder	Spring	£2.70 £2.25
9	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£5.42 £4.52
10	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
11	HP90018-ZE1-000 Available to backorder	Flange Bolt	£2.94 £2.45
12	HP90022-888-010 Available to backorder	Flange Bolt 6 X 20	£2.71 £2.26
13	HP90201-Z0T-800 Available to backorder	Speical Nut 14Mm	£7.04 £5.87
14	HP90681-959-003 Available to backorder	Cable Clip	£0.96 £0.80
15	HP93892-0401200 Available to backorder	Screw	£1.50 £1.25
16	HP94103-040-00 Available to backorder	Washer 4Mm	£0.94 £0.78
17	HP30500-Z1L-003 Available to backorder	Ignition Coil Assy	£60.12 £50.10
18	HP30700-ZJ1-841 Available to backorder	Plug Cap	£16.22 £13.52
