Honda HRX476C1 - PKEE - MASF 1130001- Cutter Housing Diagram

Description

Honda HRX476C1 - PKEE Rotary Mower Parts Diagram

	Part No.	Details
2	HP61304-958-003 In stock	Nut	£8.28 £6.90
3	HP76111-VK8-J51 Available to backorder	Mower Housing	£168.72 £140.60
3	HP76111-VK8-M51 Available to backorder	Mower Housing	£168.72 £140.60

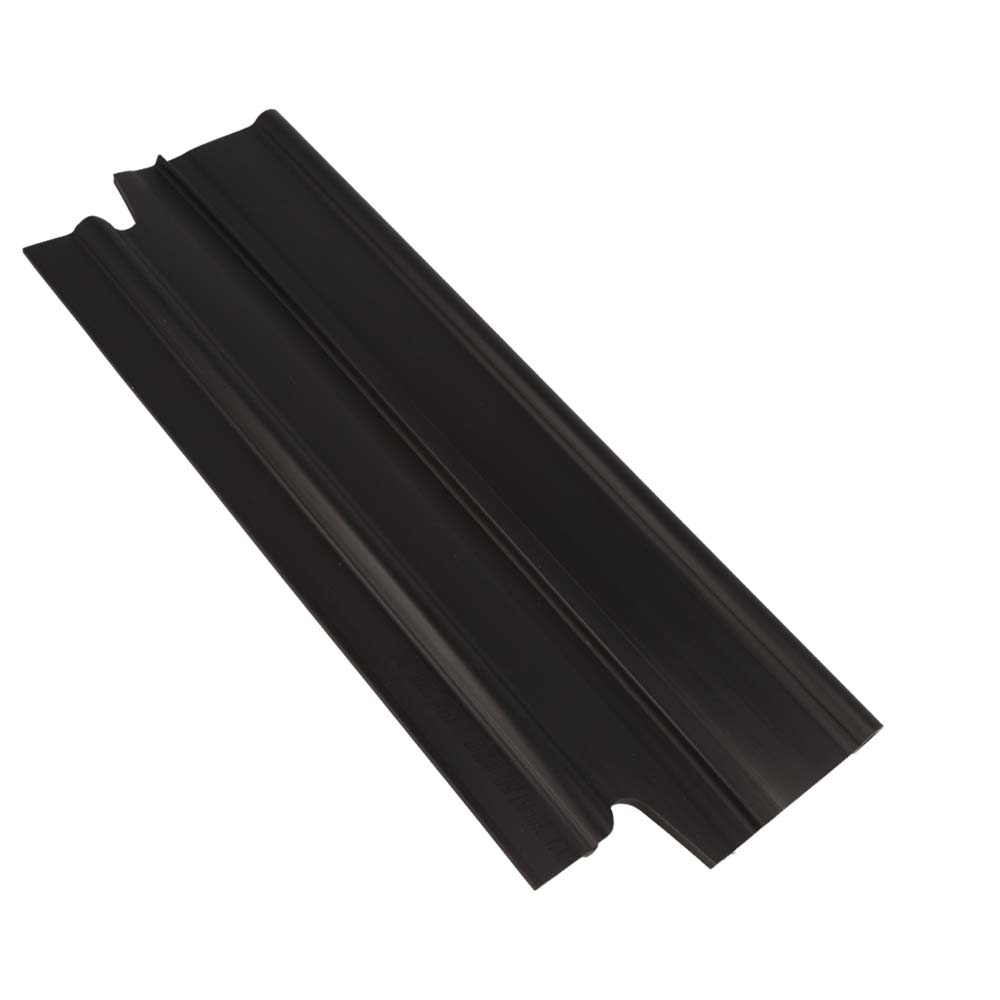

4	HP76118-VK8-J50 Available to backorder	Rear Flap	£13.86 £11.55
5	HP76138-VH4-000 Available to backorder	Shield Shaft	£16.49 £13.74
6	HP76142-VK8-J50 Available to backorder	Guide Scroll	£40.28 £33.57
7	HP76158-VG8-000 Available to backorder	Bracket	£11.51 £9.59

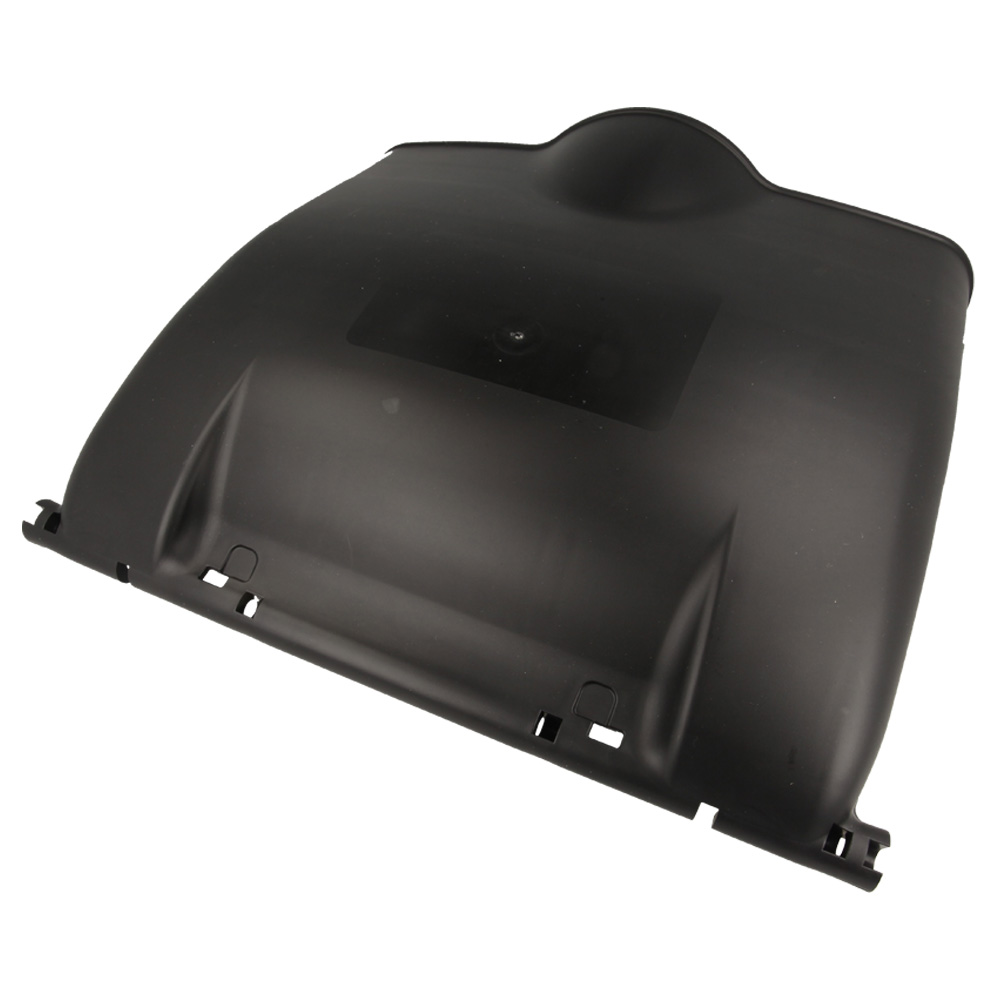

8	HP76281-VK8-J50 Available to backorder	Discharge Guard	£66.96 £55.80
9	HP76282-VK8-020 Available to backorder	Discharge Guard Shaft	£40.67 £33.89
10	HP76284-VH7-000 Available to backorder	Guard Return Spring R H	£15.14 £12.62
11	HP76294-VH7-000 Available to backorder	Guard Return Spring L H	£17.36 £14.47
12	HP90101-VA9-K40 Available to backorder	Special Bolt 6Mm	£8.11 £6.76
13	HP90102-VE0-000 In stock	Engine Setting Bolt	£3.54 £2.95
14	HP90301-VK8-000 Available to backorder	Nut	£4.84 £4.03
15	HP90301-VK8-J50 Available to backorder	Push Nut	£5.17 £4.31
16	HP91551-VK8-000 Available to backorder	Collar	£2.59 £2.16
17	HP91651-VE0-010 Available to backorder	Engine Bed Collar	£4.79 £3.99
18	HP91652-VE0-000 In stock	Adiabatic Collar	£7.97 £6.64
20	HP95701-0601200 In stock	Bolt	£0.97 £0.81
21	HP95701-0601800 Available to backorder	Flange Bolt 6 X 18	£0.94 £0.78
