Honda HRX476C1 - HYEE - MASF 1130001- Rear Wheel HKEE, VKEE, VYEE Diagram

Name: Honda HRX476C1 - HYEE - MASF 1130001- Rear Wheel HKEE, VKEE, VYEE Diagram
SKU: hrx476c1_hyee_masf_1130001_rear_wheel_hkee_vkee_vyee-group
Price: 0.41 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX476C1 - HYEE - MASF 1130001- Rear Wheel HKEE, VKEE, VYEE Diagram

Description

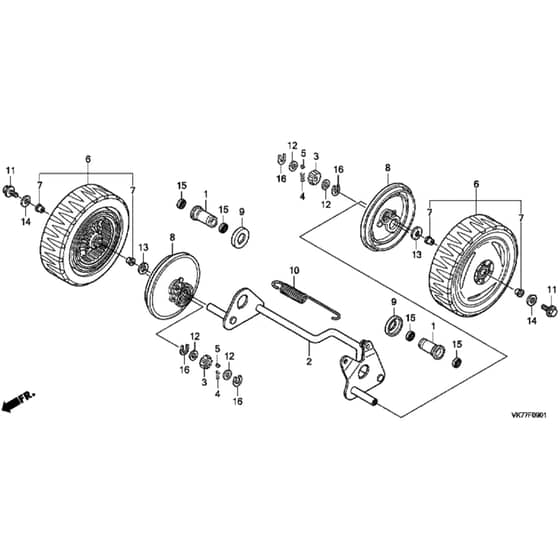

Honda HRX476C1 - HYEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP41418-VK8-J50 Available to backorder	Drive Shaft Collar	£31.69 £26.41
2	HP42310-VK8-J50 Available to backorder	Axle Shaft	£83.50 £69.58
2	HP42310-VK8-M50 Available to backorder	Axle Shaft	£83.50 £69.58
3	HP42661-VH3-850 In stock	Pinion Gear	£6.96 £5.80
4	HP42668-VE2-800 In stock	Pawl Spring	£1.10 £0.92
5	HP42672-VE2-800 In stock	Ratchet Key	£4.04 £3.37
6	HP42710-VK8-J50ZA Available to backorder	Wheel	£46.08 £38.40
7	HP42716-VE0-800 In stock	Wheel Bush	£3.72 £3.10
8	HP42866-VE0-800 Available to backorder	Wheel Cover	£5.26 £4.38
9	HP42868-VK8-750 Available to backorder	Wheel Cap	£2.92 £2.43
10	HP42992-VK8-J50 Available to backorder	Balance Spring	£46.66 £38.88
11	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
12	HP90452-166-600 Available to backorder	Washer	£0.49 £0.41
13	HP90505-VA9-K40 In stock	Washer 13Mm	£2.04 £1.70
14	HP90506-VA9-K41 Available to backorder	Wheel Washer	£4.14 £3.45
15	HP91051-VK8-750 In stock	Bearing	£6.02 £5.02
16	HP94510-12000 In stock	External Circlip 12Mm	£1.08 £0.90
