Honda HRX476C1 - HYEE - MASF 1130001- Handle Pipe Diagram

Name: Honda HRX476C1 - HYEE - MASF 1130001- Handle Pipe Diagram
SKU: hrx476c1_hyee_masf_1130001_handle_pipe-group
Price: 0.81 GBP
Availability: InStock

Part No. hrx476c1_hyee_masf_1130001_handle_pipe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX476C1 - HYEE - MASF 1130001- Handle Pipe Diagram

Description

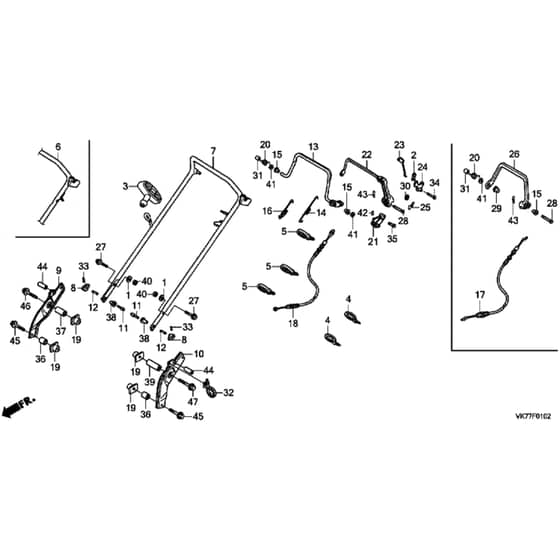

Honda HRX476C1 - HYEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16577-ZG3-000 Available to backorder	Spacer	£4.64 £3.87
2	HP16956-892-000 Available to backorder	Rod Joint	£8.39 £6.99
3	HP28461-ZE7-T01 In stock	Recoil Starter Handle	£6.95 £5.79
4	HP32901-VE0-850 Available to backorder	Cable Tie	£6.20 £5.17
5	HP32901-VK7-000 Available to backorder	Cable Tie	£6.20 £5.17
7	HP53110-VK8-J51 Available to backorder	Handle	£107.52 £89.60
8	HP53125-VL0-B00ZA In stock	Handle Grip	£25.12 £20.93
9	HP53131-VK8-J50 Available to backorder	Handle Stay R H	£34.73 £28.94
10	HP53136-VK8-J50 Available to backorder	Handle Stay L H	£34.73 £28.94
11	HP53158-VK8-J50 Available to backorder	Pin	£15.34 £12.78
12	HP53367-VL0-B00 In stock	Handle Adjusting Spring	£1.60 £1.33
13	HP54410-VA9-H50 Available to backorder	Clutch Lever Assy	£78.12 £65.10
14	HP54411-VA3-P00 In stock	Clutch Spring	£9.20 £7.67
15	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.55 £3.79
16	HP54414-VA3-P00 Available to backorder	Clutch Lever Return Spring	£7.84 £6.53
17	HP54530-VK8-D51 Available to backorder	Brake Cable	£37.32 £31.10
18	HP54530-VK8-J50 In stock	Roto-Stop Cable	£49.84 £41.53
19	HP61304-165-013 Available to backorder	Head Light Set Nut	£8.46 £7.05
20	HP75118-VA3-J00 In stock	Stop Return Spring R H	£8.56 £7.13
21	HP75128-VE0-L00 Available to backorder	Cable Arm	£16.03 £13.36
22	HP75161-VE0-L01 Available to backorder	Roto-Stop Lever Assy	£69.96 £58.30
23	HP75165-VE0-L00 In stock	Ratchet Push Rod	£12.05 £10.04
24	HP75166-VA3-J01 Available to backorder	Lock Lever	£7.14 £5.95
25	HP75168-VA4-000 In stock	Pawl Spring	£6.90 £5.75
26	HP75190-VE1-E00ZA Available to backorder	Brake Lever	£160.20 £133.50
27	HP90101-VK8-J50 Available to backorder	Flange Bolt	£3.02 £2.52
28	HP90106-VA4-800 Available to backorder	Clutch Lever Pin	£12.19 £10.16
28	HP90106-VA4-000 Available to backorder	Pin	£10.40 £8.67
29	HP90301-VA3-J01 In stock	Push Nut	£2.88 £2.40
30	HP90407-952-300 Available to backorder	Special Washer 6Mm	£4.24 £3.53
31	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£7.00 £5.83
32	HP90672-SA0-003 Available to backorder	Strap	£8.44 £7.03
33	HP90751-VL0-B00 In stock	Pin	£1.31 £1.09
34	HP90753-VA3-J00 Available to backorder	Lever Hinge Lock Pin	£5.06 £4.22
35	HP90754-VA9-P40 In stock	Cable Joint Pin	£3.56 £2.97
36	HP91551-VE2-000 Available to backorder	Lower Stay Collar	£2.70 £2.25
37	HP91551-VK8-J50 Available to backorder	Collar	£10.18 £8.48
38	HP91551-VL0-B00 In stock	Handle Height Collar	£4.86 £4.05
39	HP91552-VK8-J50 Available to backorder	Collar	£10.18 £8.48
40	HP94031-08070 Available to backorder	Nut	£3.97 £3.31
41	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
42	HP94251-06000 In stock	Lock Pin 6Mm	£1.22 £1.02
43	HP94251-08000 In stock	Lock Pin 8Mm	£1.84 £1.53
44	HP95003-250-0220 Available to backorder	Tube	£1.34 £1.12
45	HP95701-08022-07 Available to backorder	Bolt	£2.09 £1.74
46	HP95701-08050-07 Available to backorder	Bolt	£1.68 £1.40
47	HP95701-080-7507 Available to backorder	Flange Bolt	£2.48 £2.07
