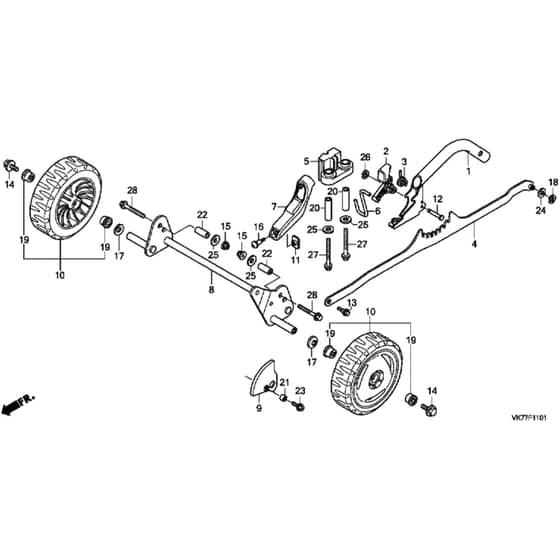

Honda HRX476C1 - HYEE - MASF 1130001- Front Wheel Diagram

Description

Honda HRX476C1 - HYEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42950-VK8-J50 Available to backorder	Adjuster	£65.48 £54.57
2	HP42961-VK8-J50 Available to backorder	Height Adjuster Lever	£10.58 £8.82
3	HP42962-VK8-J50 Available to backorder	Return Spring	£43.44 £36.20
4	HP42963-VK8-J50 Available to backorder	Adjuster Arm	£32.96 £27.47
5	HP42967-VK8-J50 Available to backorder	Height Adjuster	£25.20 £21.00
6	HP42968-VK8-J50 Available to backorder	Height Adjuster Rod	£11.36 £9.47
7	HP42969-VK8-J50 Available to backorder	Cover Arm	£12.60 £10.50
8	HP44310-VK8-J50 Out of stock	Front Axle	£56.20 £46.83
9	HP44321-VK8-J50 Available to backorder	Height Indicator	£9.12 £7.60
10	HP44710-VK8-J50ZA Available to backorder	Wheel	£36.60 £30.50
11	HP61304-958-003 In stock	Nut	£6.16 £5.13
12	HP64428-KSV-J00 Available to backorder	Pin	£8.18 £6.82
13	HP90103-VK8-000 Available to backorder	Special Bolt 6 X 11	£1.73 £1.44
14	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
15	HP90115-659-003 In stock	Nut	£1.10 £0.92
16	HP90165-MV9-000 Available to backorder	Screw	£2.92 £2.43
17	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
18	HP90651-VK8-000 Available to backorder	E Ring	£1.66 £1.38
19	HP91051-VE0-750 In stock	Bearing	£11.16 £9.30

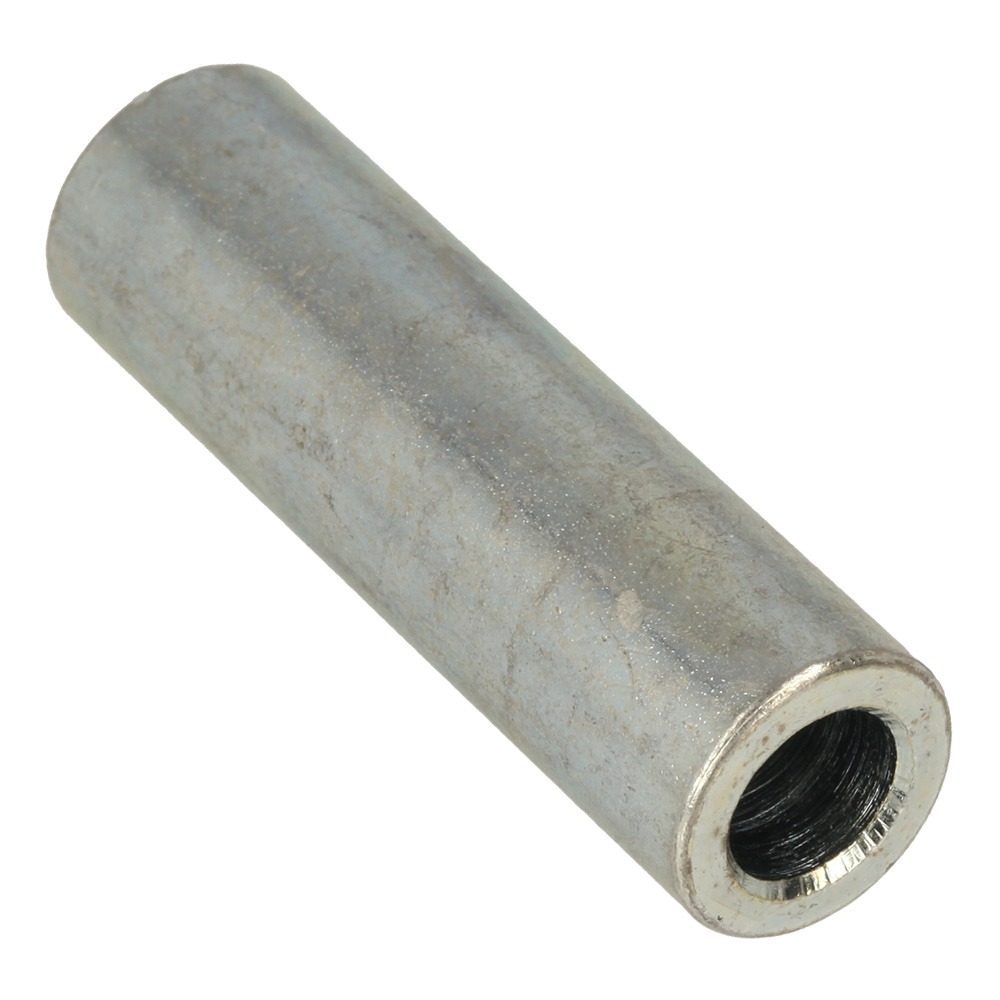

20	HP91552-VK8-A50 Out of stock	Collar	£11.76 £9.80
21	HP91554-VE0-C50 Available to backorder	Collar	£2.47 £2.06
22	HP91905-VA9-000 Available to backorder	Adjusting Collar	£4.13 £3.44
23	HP93904-36210 Available to backorder	Tapping Screw	£1.80 £1.50
24	HP94102-08000 Available to backorder	Washer	£1.42 £1.18
25	HP94103-08000 In stock	Plain Washer 8Mm	£0.47 £0.39
26	HP94540-04018 Available to backorder	E Ring	£3.50 £2.92
27	HP95701-0806000 Available to backorder	Flange Bolt 8 X 60	£2.20 £1.83
28	HP95801-0805000 Available to backorder	Flange Bolt 8 X 50	£2.60 £2.17
