Honda HRX476C - QXE - MASF 1000001- Transmission Diagram

Description

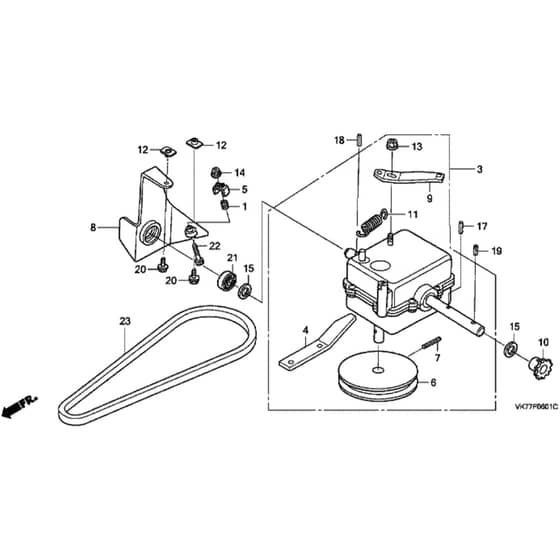

Honda HRX476C - QXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
3	HP20001-VK8-A52 In stock	Transmission Assy	£267.74 £223.12
5	HP21557-VA9-F60 Available to backorder	Spring Holder	£10.80 £9.00
6	HP22421-VE1-T00 Available to backorder	Pulley	£41.09 £34.24
7	HP22428-VA9-F60 Available to backorder	Spring Pin	£1.37 £1.14
8	HP22511-VK8-A50 Available to backorder	Guide	£42.29 £35.24
9	HP22811-VE0-M12 Available to backorder	Clutch Arm	£27.06 £22.55
10	HP23121-VE0-M10 In stock	Drive Sprocket	£62.57 £52.14
11	HP23439-VE0-851 In stock	Clutch Arm Return Spring	£4.98 £4.15
12	HP61304-958-003 In stock	Nut	£8.28 £6.90
13	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.68 £4.73
14	HP90308-SA0-981 Available to backorder	Lock Nut	£5.32 £4.43
15	HP90459-107-000 In stock	Washer	£5.12 £4.27
17	HP94305-30182 In stock	Spring Pin 3 X 18	£1.75 £1.46
18	HP94305-40182 Available to backorder	Spring Pin 4 X 18	£3.02 £2.52
19	HP94305-50221 In stock	Spring Pin 5 X 22	£3.23 £2.69
20	HP95701-0601200 In stock	Bolt	£0.97 £0.81
21	HP96150-6001010 Available to backorder	Bearing	£5.69 £4.74
22	HP96600-0604000 Available to backorder	Bolt	£0.48 £0.40
23	HP23161-VE0-M11 In stock	Belt	£31.73 £26.44
