Honda HRX476C - QXE - MASF 1000001- Handle Pipe Diagram

Name: Honda HRX476C - QXE - MASF 1000001- Handle Pipe Diagram
SKU: hrx476c_qxe_masf_1000001_handle_pipe-group
Price: 0.47 GBP
Availability: InStock

Part No. hrx476c_qxe_masf_1000001_handle_pipe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX476C - QXE - MASF 1000001- Handle Pipe Diagram

Description

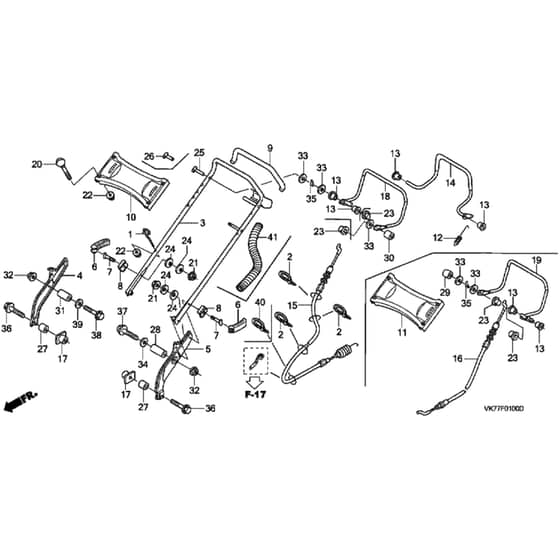

Honda HRX476C - QXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP28475-VK8-000 Available to backorder	Rope Guide	£5.03 £4.19
2	HP32901-VE0-850 Available to backorder	Cable Tie	£6.20 £5.17
3	HP53110-VK8-010 Available to backorder	Handle	£88.56 £73.80
4	HP53130-VK8-A50 Available to backorder	Handle Stay R H	£34.73 £28.94
5	HP53135-VK8-A50 Available to backorder	Handle	£24.83 £20.69
6	HP53142-VK8-010 Available to backorder	Adjusting Lever Handle	£5.04 £4.20
7	HP53143-VK8-000 In stock	Handle Adjuster Shaft	£3.38 £2.82
8	HP53147-VK8-010 In stock	Holder	£3.54 £2.95
10	HP53171-VK8-000 Available to backorder	Handle Panel	£33.98 £28.32
13	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.55 £3.79
14	HP54415-VK8-750 Available to backorder	Clutch Cable	£44.54 £37.12
15	HP04201-VK8-A50 In stock	Clutch Cable Kit	£20.10 £16.75
17	HP61304-165-013 Available to backorder	Head Light Set Nut	£8.46 £7.05
18	HP75160-VK8-010 In stock	Roto-Stop Lever Assy	£56.29 £46.91
20	HP90102-VK8-000 Available to backorder	Bolt	£3.00 £2.50
21	HP90115-659-003 In stock	Nut	£1.19 £0.99
22	HP90303-VG3-000 In stock	Lock Nut 6Mm	£0.80 £0.67
24	HP90502-VK8-000 Available to backorder	Spring Washer 8Mm	£1.22 £1.02
25	HP90751-VK8-750 Available to backorder	Pin 8 X 70	£8.57 £7.14
27	HP91551-VE2-000 Available to backorder	Lower Stay Collar	£2.70 £2.25
28	HP91555-VK8-000 Available to backorder	Collar	£6.20 £5.17
31	HP91905-VA9-000 Available to backorder	Adjusting Collar	£4.07 £3.39
32	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
33	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
34	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
35	HP94251-08000 In stock	Lock Pin 8Mm	£1.84 £1.53
36	HP95701-0802200 Available to backorder	Flange Bolt 8 X 22	£2.03 £1.69
37	HP95801-0806000 Available to backorder	Flange Bolt 8 X 60	£2.44 £2.03
38	HP95801-0804500 Available to backorder	Flange Bolt 8 X 45	£2.44 £2.03
