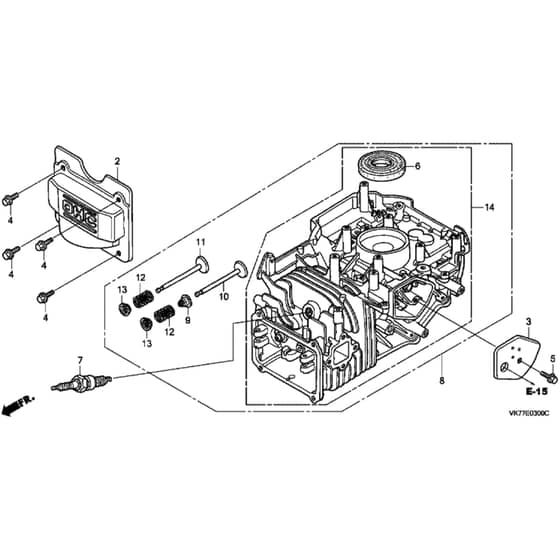

Honda HRX476C - PXE - MASF 1000001- Cylinder Barrel Diagram

Description

Honda HRX476C - PXE Rotary Mower Parts Diagram

	Part No.	Details
2	HP12311-ZL8-D00 Available to backorder	Rocker Cover	£8.90 £7.42
3	HP12355-ZL8-000 Available to backorder	Breather Cover Assy	£10.72 £8.93
4	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
5	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
6	HP91201-ZL8-003 Available to backorder	Oil Seal 25.4 X 62 X 6	£9.64 £8.03
7	2135 In stock	Spark Plug	£2.78 £2.32
7	2136 In stock	Plug Spark (Bpr6Es) (Ngk)	£2.81 £2.34
8	HP12000-Z0L-515 Available to backorder	Cylinder Assy	£245.28 £204.40
9	HP12209-ZM0-003 Available to backorder	Valve Stem Seal	£8.57 £7.14
10	HP14711-ZL8-000 Available to backorder	Inlet Valve	£10.58 £8.82
11	HP14721-ZL8-000 Available to backorder	Exhaust Valve	£12.25 £10.21
12	HP14751-ZL8-000 Available to backorder	Valve Spring	£2.69 £2.24
13	HP14771-ZE1-000 Available to backorder	Exhaust Valve Spring Retainer	£9.19 £7.66
14	HP12000-Z8B-405 Available to backorder	Cylinder Barrel Assy	£245.28 £204.40
