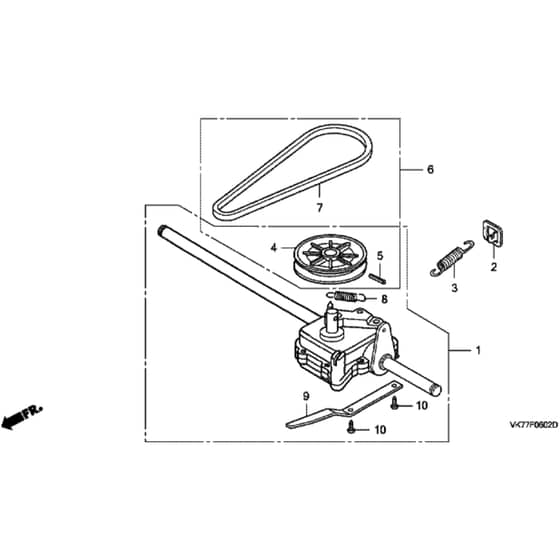

Honda HRX426C - SXE - MATF 1030001- Transmission Diagram

Description

Honda HRX426C - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP20001-VK7-751 Available to backorder	Transmission Assy	£197.76 £164.80
1	HP20001-VK7-752 Available to backorder	Transmission Assy	£188.04 £156.70
2	HP21557-VE0-800 Available to backorder	Tension Spring Plate	£4.34 £3.62
3	HP22534-VA9-K41 Available to backorder	Tension Spring	£7.16 £5.97
4	HP22421-VK7-750 Available to backorder	Pulley	£17.33 £14.44
4	HP22421-VK7-800 Available to backorder	Pulley	£20.09 £16.74
5	HP90751-VF0-E50 Available to backorder	Spring Pin 5 X 35	£2.12 £1.77
6	HP06225-VK7-750 Available to backorder	Pulley Kit	£18.86 £15.72
6	HP06224-VK7-750 Available to backorder	Pulley Kit	£18.86 £15.72
7	HP22431-VK7-750 In stock	Belt	£29.40 £24.50
7	HP23161-VG8-800 Available to backorder	Belt	£25.78 £21.48
8	HP23439-VE0-851 Available to backorder	Clutch Arm Return Spring	£4.56 £3.80
