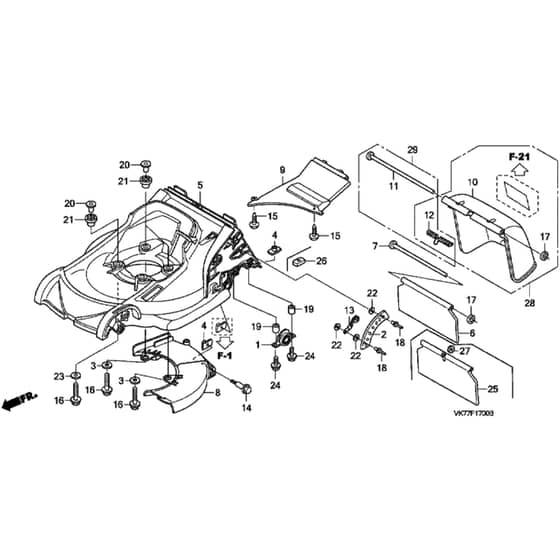

Honda HRX426C - SXE - MATF 1030001- Cutter Housing Diagram

Description

Honda HRX426C - SXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42938-VK8-000 Out of stock	Ale Holder	£4.51 £3.76
2	HP42987-VK7-000 Available to backorder	Adjuster Panel	£3.28 £2.73
3	HP53101-GN5-900 Available to backorder	Washer	£6.20 £5.17
4	HP61304-958-003 In stock	Nut	£8.28 £6.90
5	HP76111-VK7-010 Available to backorder	Mower Housing	£168.72 £140.60
7	HP76138-VH3-000 Available to backorder	Rear Shield Shaft	£16.99 £14.16
8	HP76142-VK7-000 Available to backorder	Scroll	£35.69 £29.74
9	HP76143-VK7-000 Available to backorder	Guide Plate	£14.83 £12.36
10	HP76281-VK7-000 Available to backorder	Discharge Guard	£62.88 £52.40
11	HP76282-VK7-020 Available to backorder	Discharge Guard Shaft	£7.24 £6.03
11	HP76282-VK7-000 Available to backorder	Guard Shaft	£8.17 £6.81
12	HP76284-VK7-000 Available to backorder	Spring	£27.94 £23.28
12	HP76284-VH3-000 Available to backorder	Guard Return Spring	£8.46 £7.05
13	HP90010-GE0-710 Available to backorder	Tube Clip	£4.62 £3.85
14	HP90101-VA9-K40 Available to backorder	Special Bolt 6Mm	£8.11 £6.76
15	HP90101-VK8-010 Available to backorder	Tapping Screw	£2.03 £1.69
15	HP90101-VK8-000 Available to backorder	Screw	£3.02 £2.52
16	HP90102-VE0-000 In stock	Engine Setting Bolt	£3.54 £2.95
17	HP90407-VA9-K40 In stock	Special Washer 8Mm	£1.85 £1.54
18	HP90842-VG8-000 Available to backorder	Rivet	£1.52 £1.27
19	HP91551-VK8-000 Available to backorder	Collar	£2.59 £2.16
20	HP91651-VE0-010 Available to backorder	Engine Bed Collar	£4.79 £3.99
20	HP91651-VE0-750 Available to backorder	Engine Bed Collar	£9.85 £8.21
21	HP91652-VE0-000 In stock	Adiabatic Collar	£7.97 £6.64
22	HP94101-06000 Available to backorder	Plain Washer 6Mm	£1.20 £1.00
23	HP94103-08800 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
24	HP95701-0601800 Available to backorder	Flange Bolt 6 X 18	£0.94 £0.78
25	HP76118-VK7-020 Available to backorder	Rear Shield	£12.37 £10.31
26	HP90301-VK8-000 Available to backorder	Nut	£4.84 £4.03
27	HP91559-VK8-000 Available to backorder	Collar	£3.11 £2.59
