Honda HRX426C - SDE - MATF 1000001- Transmission Diagram

Name: Honda HRX426C - SDE - MATF 1000001- Transmission Diagram
SKU: hrx426c_sde_matf_1000001_transmission-group
Price: 1.83 GBP
Availability: InStock

Part No. hrx426c_sde_matf_1000001_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX426C - SDE - MATF 1000001- Transmission Diagram

Description

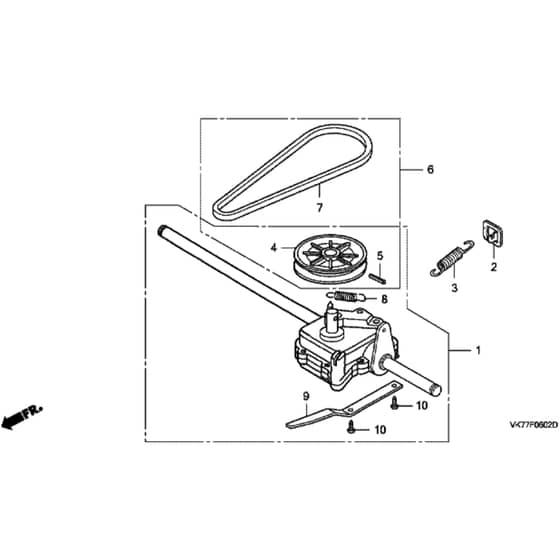

Honda HRX426C - SDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP20001-VK7-751 Available to backorder	Transmission Assy	£210.72 £175.60
1	HP20001-VK7-752 Available to backorder	Transmission Assy	£200.40 £167.00
2	HP21557-VE0-800 Available to backorder	Tension Spring Plate	£4.57 £3.81
3	HP22534-VA9-K41 Available to backorder	Tension Spring	£7.40 £6.17
4	HP22421-VK7-750 Available to backorder	Pulley	£17.06 £14.22
4	HP22421-VK7-800 Available to backorder	Pulley	£21.20 £17.67
5	HP90751-VF0-E50 Available to backorder	Spring Pin 5 X 35	£2.20 £1.83
6	HP06225-VK7-750 Available to backorder	Pulley Kit	£19.51 £16.26
6	HP06224-VK7-750 Available to backorder	Pulley Kit	£19.51 £16.26
7	HP22431-VK7-750 In stock	Belt	£32.12 £26.77
7	HP23161-VG8-800 Available to backorder	Belt	£25.39 £21.16
8	HP23439-VE0-851 In stock	Clutch Arm Return Spring	£4.98 £4.15
