Honda HRX426C - RXE - MATF 1030001- Rear Wheel Diagram

Description

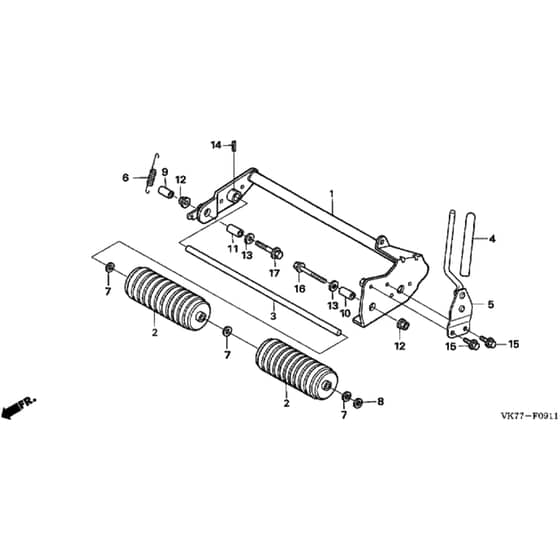

Honda HRX426C - RXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42650-VK7-A60 Available to backorder	Adjuster Arm Assy Rear R H	£90.48 £75.40
2	HP42780-VA9-811 In stock	Roller	£56.15 £46.79
3	HP42947-VG8-870 Available to backorder	Roller Shaft	£54.41 £45.34
4	HP42952-VG8-870 Available to backorder	Adjuster Grip	£2.36 £1.97
5	HP42961-VK8-A51 In stock	Height Adjuster Lever	£36.49 £30.41

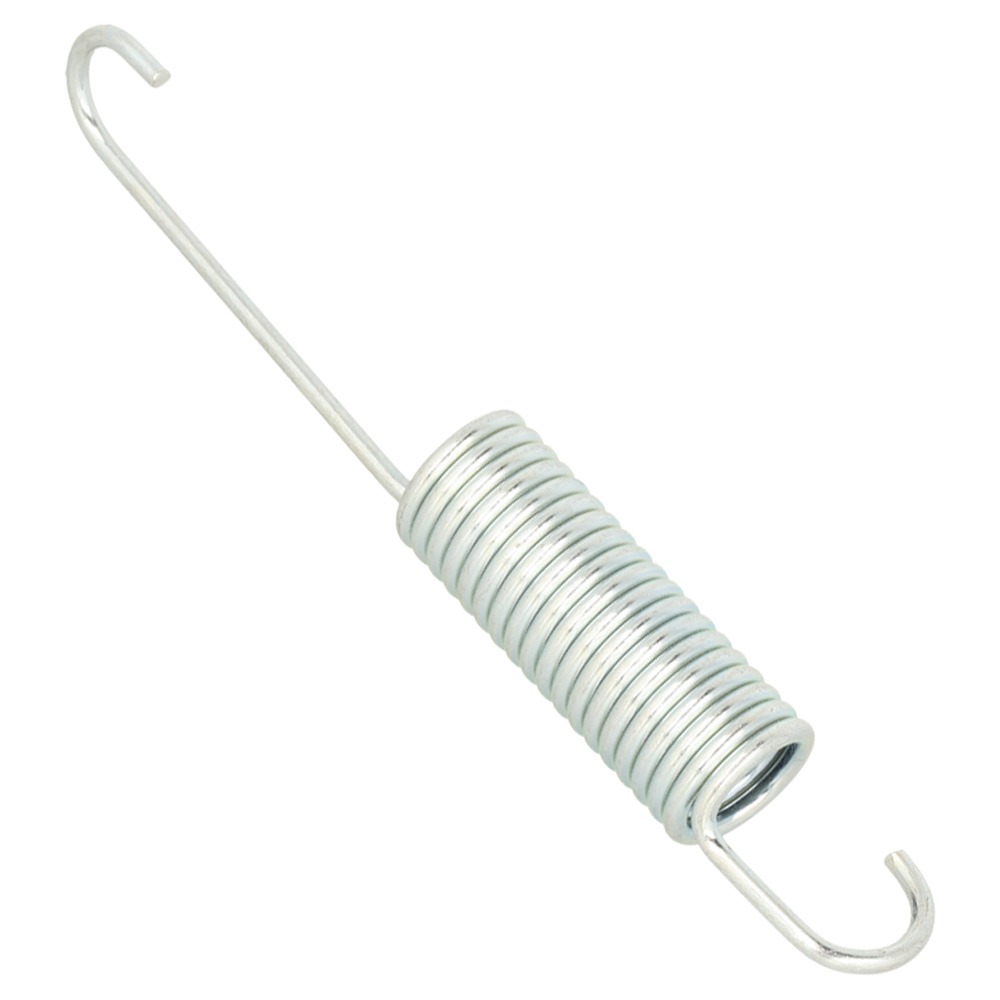

6	HP42994-VK7-A50 Out of stock	Balancer Spring	£10.51 £8.76
7	HP90451-107-000 Out of stock	Washer	£3.19 £2.66
8	HP90455-VA5-700 In stock	Axle Washer	£5.80 £4.83
9	HP91555-VG8-850 Available to backorder	Collar	£4.91 £4.09
10	HP91556-VG8-870 Available to backorder	Collar	£4.66 £3.88
11	HP91559-VK7-A50 Available to backorder	Collar	£7.45 £6.21
12	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
13	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
14	HP94305-50252 Available to backorder	Spring Pin 5 X 25	£3.11 £2.59
15	HP95701-0601200 In stock	Bolt	£0.97 £0.81
16	HP95801-080-7000 Available to backorder	Flange Bolt	£2.75 £2.29
17	HP95801-0809000 Available to backorder	Flange Bolt 8 X 90	£3.14 £2.62
