Honda HRX426C - QXE - MATF 1030001- Transmission Diagram

Name: Honda HRX426C - QXE - MATF 1030001- Transmission Diagram
SKU: hrx426c_qxe_matf_1030001_transmission-group
Price: 0.4 GBP
Availability: InStock

Part No. hrx426c_qxe_matf_1030001_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX426C - QXE - MATF 1030001- Transmission Diagram

Description

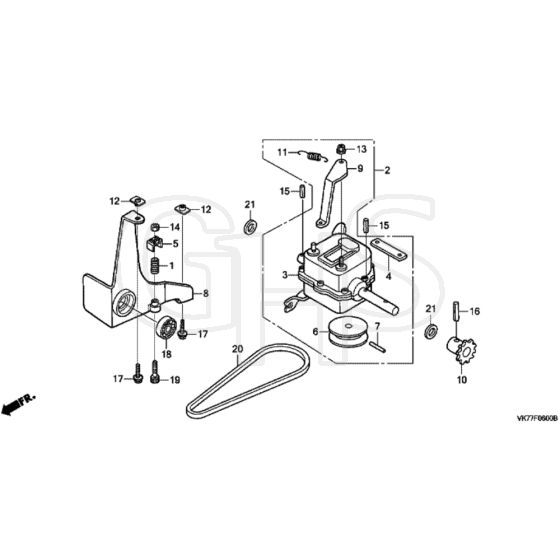

Honda HRX426C - QXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
2	HP04201-VK7-A50 In stock	Transmission Kit	£264.40 £220.33
4	HP21284-VG8-851 Available to backorder	Transmission Stopper	£5.21 £4.34
5	HP21557-VA9-F60 Available to backorder	Spring Holder	£10.80 £9.00
6	HP22422-VG8-851 Available to backorder	Pulley	£40.92 £34.10
7	HP22428-VA9-F60 Available to backorder	Spring Pin	£1.37 £1.14
8	HP22511-VK7-A50 Available to backorder	Guide	£51.79 £43.16
9	HP22811-VG8-851 Available to backorder	Clutch Arm	£11.59 £9.66
10	HP23121-VA9-F60 In stock	Drive Sprocket	£46.08 £38.40
11	HP23439-VE0-851 In stock	Clutch Arm Return Spring	£4.98 £4.15
12	HP61304-958-003 In stock	Nut	£8.28 £6.90
13	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.68 £4.73
14	HP90308-SA0-981 Available to backorder	Lock Nut	£5.32 £4.43
15	HP94305-30182 In stock	Spring Pin 3 X 18	£1.75 £1.46
16	HP94305-50221 In stock	Spring Pin 5 X 22	£3.23 £2.69
17	HP95701-0601200 In stock	Bolt	£0.97 £0.81
18	HP96150-6001010 Available to backorder	Bearing	£5.69 £4.74
19	HP96600-0604000 Available to backorder	Bolt	£0.48 £0.40
20	HP23161-VG8-850 In stock	Belt	£31.85 £26.54
21	HP90459-107-000 In stock	Washer	£5.12 £4.27
