Honda HRX426C - PXE - MATF 1030001- Front Wheel Diagram

Description

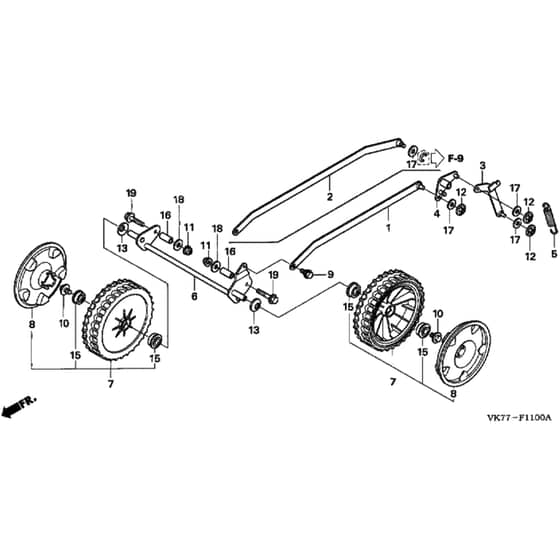

Honda HRX426C - PXE Rotary Mower Parts Diagram

	Part No.	Details
2	HP42963-VK7-000 Available to backorder	Adjuster Arm	£25.20 £21.00
6	HP44310-VK7-000 Available to backorder	Front Axle	£43.45 £36.21
7	HP44700-VK8-000 Available to backorder	Wheel	£47.66 £39.72
8	HP44719-VK8-000 Available to backorder	Hub Cap	£5.32 £4.43
9	HP90103-VK8-000 Available to backorder	Special Bolt 6 X 11	£1.70 £1.42
10	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
11	HP90115-659-003 In stock	Nut	£1.19 £0.99
13	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
15	HP91053-VK8-000 Available to backorder	Bearing	£4.98 £4.15
16	HP91905-VA9-000 Available to backorder	Adjusting Collar	£4.07 £3.39
17	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
18	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
19	HP95801-0805000 Available to backorder	Flange Bolt 8 X 50	£2.69 £2.24
