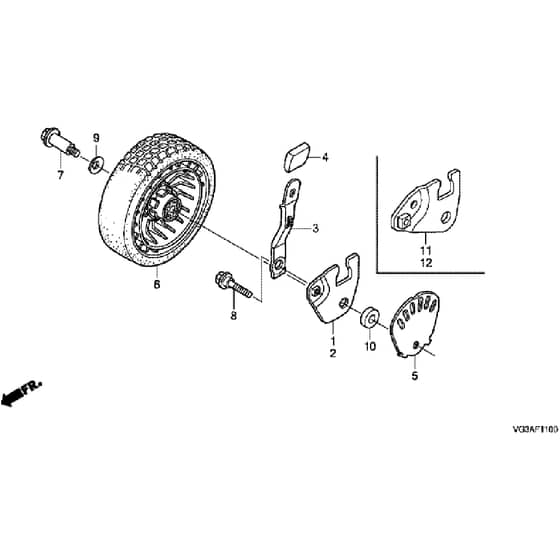

Honda HRS536C5 - VKEH - Front Wheels Diagram

Honda HRS536C5 - VKEH - Front Wheels Diagram

Description

Honda HRS536C5 - VKEH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	3		HP42951-VG3-000 Out of stock	Front Adjuster Plate		£10.21 £8.51
	4		HP42952-VG3-000ZD Out of stock	Height Adjuster Knob		£2.15 £1.79
	5		HP42981-VL0-U00 Out of stock	Front Adjuster Panel		£6.37 £5.31
	6		HP44710-VL0-T00ZA Out of stock	Front Wheel		£36.58 £30.48
	7		HP90101-VG3-000 Out of stock	Wheel Bolt		£2.00 £1.67
	8		HP90103-VL0-900 Out of stock	Adjuster Arm Bolt		£7.87 £6.56
	9		HP90455-VA2-000 In stock	Wheel Washer		£3.18 £2.65
	10		HP91551-VG3-000 Out of stock	Adjusting Collar		£1.04 £0.87
	11		HP42911-VL0-900 Out of stock	Adjuster Arm		£14.17 £11.81
	12		HP42921-VL0-900 Out of stock	Adjuster Arm Front L H		£13.20 £11.00

Description

Honda HRS536C5 - VKEH Rotary Mower Parts Diagram
