Honda HRS536C5-VKEA (6600001 - 9999999) - Transmission Diagram

Description

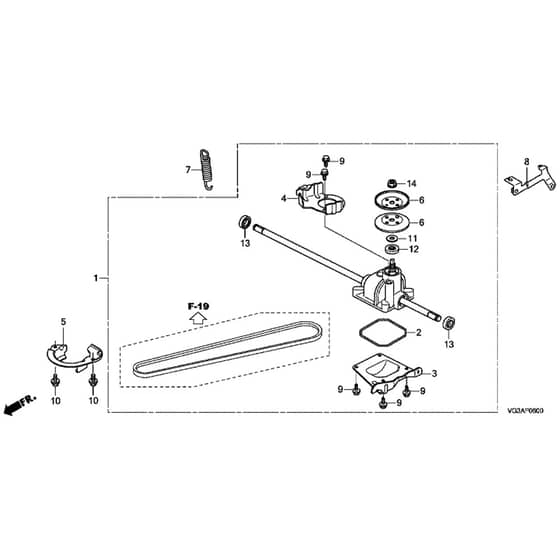

Honda HRS536C5-VKEA (6600001 - 9999999) Rotary Mower Parts Diagram

	Part No.	Details
1	HP20001-VG3-N00 Available to backorder	Transmission Assy	£230.40 £192.00
2	HP21581-VL0-M00 Available to backorder	O Ring	£4.31 £3.59
3	HP21611-VL0-P00 Available to backorder	Reduction Cover	£6.52 £5.43
4	HP22451-VL0-S00 Available to backorder	Belt Guide	£8.65 £7.21
5	HP22453-VL0-S00 Available to backorder	Belt Guide	£38.36 £31.97
6	HP23211-VL0-P00 Available to backorder	Face Driven	£15.26 £12.72
7	HP24468-VG3-N00 Available to backorder	Tension Spring	£10.68 £8.90
9	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
10	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
11	HP90504-VH7-A00 Available to backorder	Washer	£1.22 £1.02
12	HP91251-VL0-B00 Available to backorder	Oil Seal 12.7 X 28.6 X 6.4	£4.91 £4.09
13	HP91251-VL0-M00 Available to backorder	Oil Seal 12.7 X 22.2 X 6.4	£5.03 £4.19
14	HP94050-10080 Available to backorder	Flange Nut 10Mm	£3.14 £2.62
