Honda HRS536C5-VKEA (1000001 - 6599999) - Muffler Diagram

Name: Honda HRS536C5-VKEA (1000001 - 6599999) - Muffler Diagram
SKU: hrs536c5_vkea_1000001_6599999_muffler-group
Price: 1.31 GBP
Availability: InStock

Part No. hrs536c5_vkea_1000001_6599999_muffler-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRS536C5-VKEA (1000001 - 6599999) - Muffler Diagram

Description

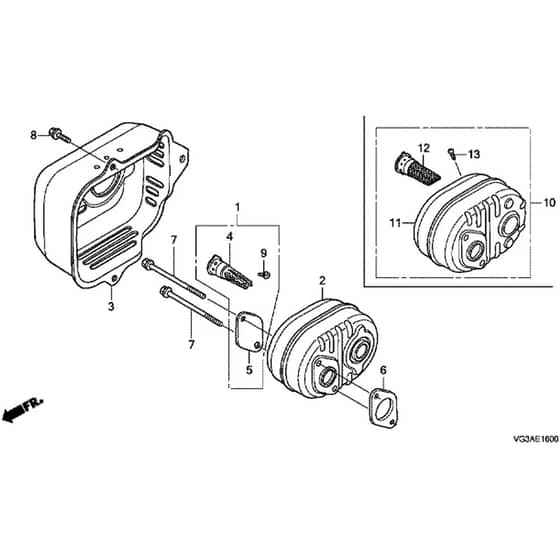

Honda HRS536C5-VKEA (1000001 - 6599999) Rotary Mower Parts Diagram

	Part No.	Details
2	HP18310-Z0Y-010 Available to backorder	Exhaust Assy	£26.96 £22.47
3	HP18321-Z0L-810 In stock	Exhaust Cover	£17.72 £14.77
6	HP18381-ZL8-305 Available to backorder	Exhaust Gasket	£6.64 £5.53
7	HP90004-ZL8-000 In stock	Flange Bolt 6 X 79	£2.17 £1.81
8	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
10	HP18300-Z8A-000 Available to backorder	Muffler Assy	£18.85 £15.71
11	HP18310-Z8A-000 Available to backorder	Muffler Comp	£182.88 £152.40
12	HP18350-ZL8-000 In stock	Spark Arrester	£39.11 £32.59
13	HP90055-ZE1-000 In stock	Self Tapping Screw 4 X 6	£1.57 £1.31
