Honda HRS536C5-VKEA (1000001 - 6599999) - Handle Pipe Diagram

Name: Honda HRS536C5-VKEA (1000001 - 6599999) - Handle Pipe Diagram
SKU: hrs536c5_vkea_1000001_6599999_handle_pipe-group
Price: 0.6 GBP
Availability: InStock

Part No. hrs536c5_vkea_1000001_6599999_handle_pipe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRS536C5-VKEA (1000001 - 6599999) - Handle Pipe Diagram

Description

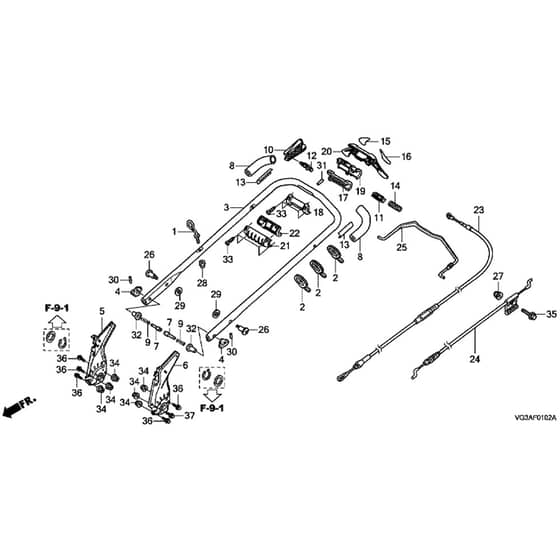

Honda HRS536C5-VKEA (1000001 - 6599999) Rotary Mower Parts Diagram

	Part No.	Details
1	HP28475-VL0-S00 Available to backorder	Rope Guide	£5.03 £4.19
2	HP32901-VB5-A00 In stock	Cable Tie	Was £6.12 £5.10 Special Price £4.30 £3.58
3	HP53111-VL0-N01ZA Available to backorder	Upper Handle	£100.68 £83.90
4	HP53125-VL0-B00ZA In stock	Handle Grip	£25.12 £20.93
6	HP53135-VG3-N00 Available to backorder	Handle Stay	£44.48 £37.07
7	HP53158-VL0-B01 In stock	Pin 8Mm	£2.66 £2.22
8	HP53165-VL0-C00 Available to backorder	Handle Grip	£19.12 £15.93
9	HP53367-VL0-B00 In stock	Handle Adjusting Spring	£1.60 £1.33
10	HP54315-VH7-K00 Available to backorder	Lever Stopper	£42.25 £35.21
11	HP54315-VH7-L00 Available to backorder	Select Lever	£4.43 £3.69
12	HP54316-VH7-K00 Available to backorder	Lock Pin	£2.06 £1.72
13	HP54322-VL0-B00 Available to backorder	Grip	£3.12 £2.60
14	HP54411-VH7-L00 Available to backorder	Select Lever Spring	£0.72 £0.60
15	HP54421-VL0-L00 Available to backorder	Pad Grip R H	£2.57 £2.14
16	HP54426-VL0-L00 Available to backorder	Pad Grip L H	£2.57 £2.14
17	HP54434-VL0-B00 Available to backorder	Upper Grip Bracket	£5.71 £4.76
18	HP54437-VL0-B00 Available to backorder	Lower Grip Bracket	£5.26 £4.38
19	HP54442-VL0-P00 In stock	Upper Bracket Cover	£3.35 £2.79
20	HP54443-VH7-L00 Available to backorder	Upper Clutch Grip	£11.75 £9.79
21	HP54446-VH7-L00 In stock	Lower Clutch Grip	£11.28 £9.40
22	HP54447-VL0-P00 In stock	Lower Bracket Cover	£4.33 £3.61
23	HP54510-VG3-N01 Available to backorder	Clutch Cable	£37.42 £31.18
24	HP54530-VG3-N01 Available to backorder	Brake Cable Assy	£26.20 £21.83
25	HP75191-VH7-K00ZA Available to backorder	Brake Lever	£19.28 £16.07
26	HP90102-VL0-P00 Available to backorder	Special Bolt 8 X 32	£2.48 £2.07
27	HP90303-V10-000 Available to backorder	Lock Nut	£3.34 £2.78
28	HP90303-VG3-000 In stock	Lock Nut 6Mm	£0.80 £0.67
29	HP90503-VL0-B00 Out of stock	Washer	£2.03 £1.69
30	HP90751-VL0-B00 In stock	Pin	£1.31 £1.09
31	HP91151-VL0-B00 Available to backorder	Roller	£3.11 £2.59
31	HP91151-VH7-H50 Available to backorder	Roller 5 X 37.3	£4.32 £3.60
32	HP91551-VL0-B00 In stock	Handle Height Collar	£4.86 £4.05
33	HP93911-14280 Available to backorder	Self Tapping Screw	£1.86 £1.55
34	HP94050-08080 Available to backorder	Flange Nut 8Mm	£3.25 £2.71
35	HP95701-06045-07 Available to backorder	Bolt	£2.03 £1.69
36	HP95701-08016-07 Available to backorder	Bolt	£1.16 £0.97
37	HP95701-08018-07 Available to backorder	Bolt	£1.20 £1.00
