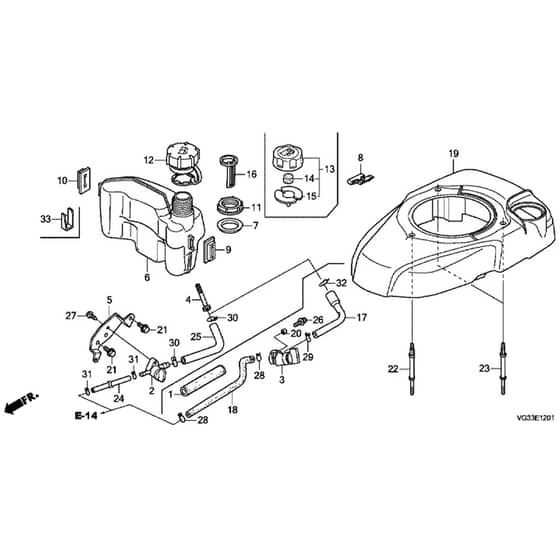

Honda HRS536C3-SDEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP16854-ZH8-000 Available to backorder	Support Rubber	£3.72 £3.10
3	HP16950-ZM0-003 In stock	Fuel Tap Assy	£42.26 £35.22
4	HP16952-Z8B-000 Available to backorder	Fuel Filter	£8.23 £6.86
6	HP17511-Z8B-800 Available to backorder	Fuel Tank	£61.38 £51.15
7	HP17514-Z0L-000 Available to backorder	Fuel Filler Neck Seal	£11.41 £9.51
8	HP17516-Z8B-900ZC Available to backorder	Clip	£7.16 £5.97
9	HP17532-Z8B-800 Available to backorder	Tank Mounting Rubber A	£3.58 £2.98
10	HP17533-Z8B-800 Available to backorder	Tank Mounting Rubber B	£5.23 £4.36
11	HP17534-Z0L-000 Available to backorder	Tank Mounting Nut	£2.64 £2.20
12	HP19611-Z8D-900ZC Available to backorder	Fan Cover	£75.00 £62.50
13	HP17620-ZL8-023 In stock	Fuel Cap Assy	£12.47 £10.39
14	HP17622-888-010 In stock	Breather Sponge	£1.63 £1.36
15	HP17624-ZE7-000 In stock	Fuel Cap Gasket	£3.55 £2.96
16	HP17636-Z0L-010 Available to backorder	Fuel Level Gauge	£10.68 £8.90
17	HP17701-Z0L-810 Available to backorder	Fuel Pipe	£10.60 £8.83
18	HP17702-ZM0-800 In stock	Fuel Pipe	£10.98 £9.15
19	HP19611-Z0L-850ZF Available to backorder	Fan Cover	£25.91 £21.59
20	HP91501-Z0L-800 Available to backorder	Collar	£2.84 £2.37
26	HP93891-0501008 Available to backorder	Washer	£1.51 £1.26
28	HP95002-02080 In stock	Tube Clip	£1.19 £0.99
29	HP95002-02100 In stock	Tube Clip	£1.31 £1.09
32	HP95002-70000 Available to backorder	Tube Clip	£1.06 £0.88
33	HP17516-Z0L-000 Available to backorder	Tank Mounting Clip	£6.25 £5.21
