Honda HRS536C3-SDEA - Fan Cover Diagram

Description

Honda HRS536C3-SDEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP16854-ZH8-000 Available to backorder	Support Rubber	£3.70 £3.08
4	HP17620-ZL8-023 In stock	Fuel Cap Assy	£11.40 £9.50
6	HP06196-Z0L-J00ZB Available to backorder	Cover Set	£67.57 £56.31
7	HP91501-Z0L-800 Available to backorder	Collar	£2.82 £2.35
7	HP33609-GK4-620 Available to backorder	Collar	£3.55 £2.96

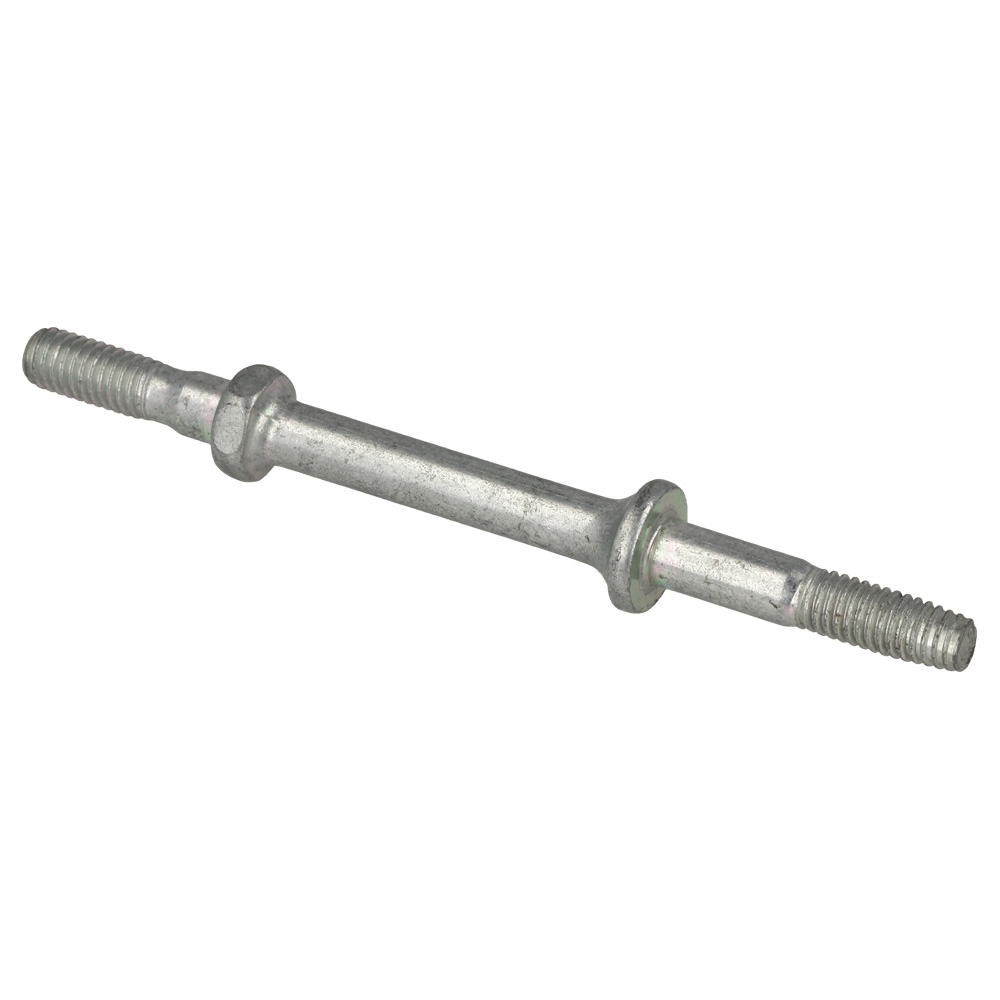

8	HP90043-Z8B-000 Available to backorder	Stud	£2.84 £2.37
8	HP90043-ZL8-000 In stock	Stud	£4.24 £3.53
9	HP93891-0501008 Available to backorder	Washer	£1.50 £1.25
10	HP95001-5500160M Available to backorder	Fuel Pipe	£32.74 £27.28
11	HP95002-02080 Available to backorder	Tube Clip	£1.08 £0.90
12	HP95002-02100 In stock	Tube Clip	£1.22 £1.02

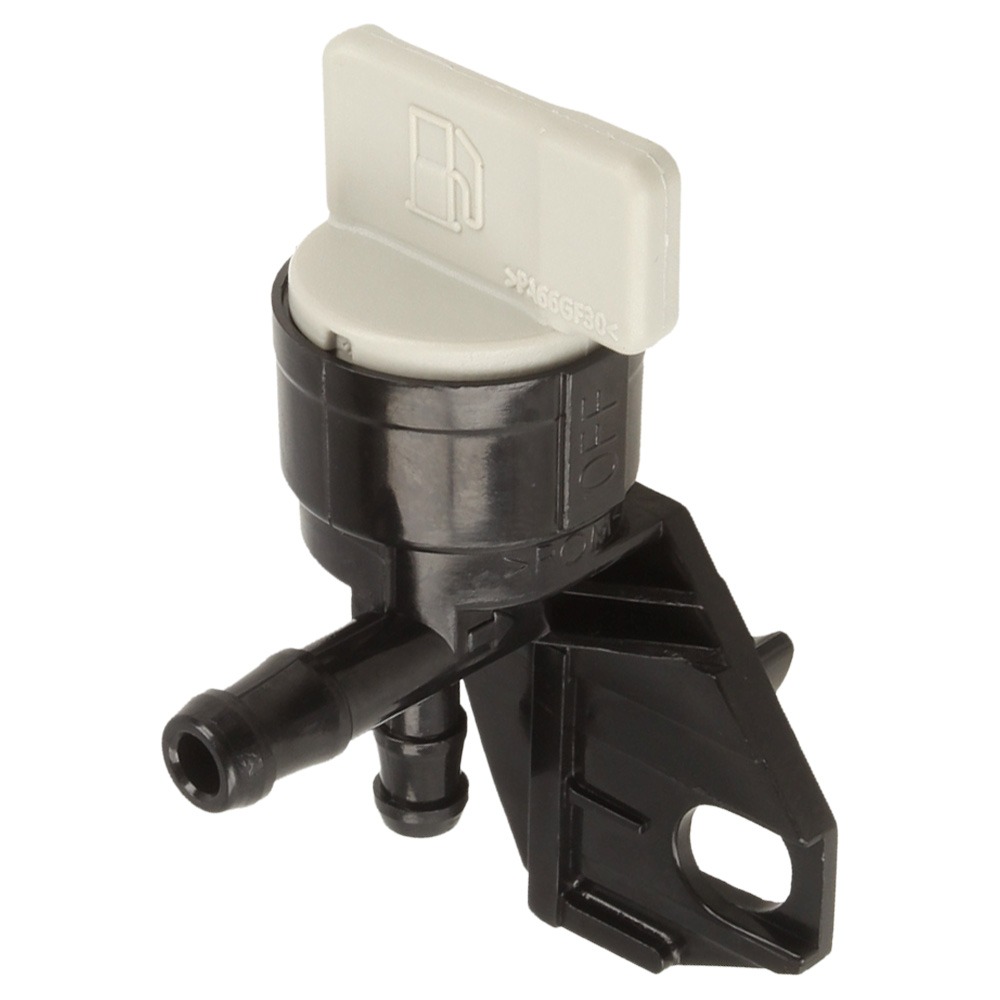

14	HP16950-ZM0-003 Available to backorder	Fuel Tap Assy	£39.43 £32.86
15	HP17702-ZM0-800 Available to backorder	Fuel Pipe	£10.24 £8.53
17	HP19619-ZL8-300 Available to backorder	Fan Cover Collar	£1.48 £1.23
20	HP17622-888-010 In stock	Breather Sponge	£1.50 £1.25
21	HP17624-ZE7-000 Available to backorder	Fuel Cap Gasket	£3.40 £2.83
