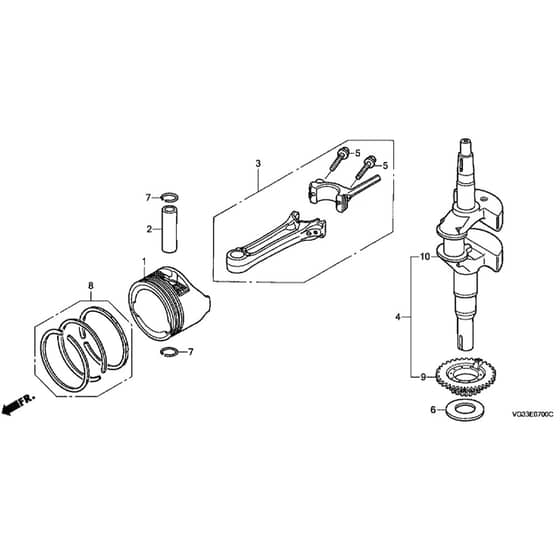

Honda HRS536C3-SDEA - Crankshaft, Piston Diagram

Name: Honda HRS536C3-SDEA - Crankshaft, Piston Diagram
SKU: hrs536c3_sdea_crankshaft_piston-group
Price: 1.51 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRS536C3-SDEA - Crankshaft, Piston Diagram

Description

Honda HRS536C3-SDEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP13101-Z2A-010 Available to backorder	Piston	£39.54 £32.95
1	HP13101-Z8B-820 Available to backorder	Piston	£39.54 £32.95
2	HP13111-Z8B-000 Available to backorder	Gudgeon Pin	£12.88 £10.73
2	HP13111-ZE0-000 Available to backorder	Gudgeon Pin	£10.48 £8.73
3	HP13200-Z0J-000 Available to backorder	Rod	£51.32 £42.77
4	HP06131-Z8B-W00 Available to backorder	Crankshaft Kit	£185.28 £154.40
5	HP90001-ZE1-000 Available to backorder	Connecting Rod Bolt	£3.48 £2.90
5	HP90006-Z8B-000 Available to backorder	Connecting Rod Bolt	£4.09 £3.41
6	HP90402-ZL8-000 Available to backorder	Thrust Washer	£2.42 £2.02
6	HP90402-Z0Y-000 Available to backorder	Thrust Washer	£3.23 £2.69
7	HP90551-ZE0-000 Available to backorder	Gudgeon Pin Clip 13Mm	£1.81 £1.51
8	HP13010-Z0L-014 Available to backorder	Piston Ring Set - Std	£32.23 £26.86
9	HP13621-Z8B-900 Available to backorder	Timing Belt Pulley	£8.30 £6.92
10	HP13311-Z8B-900 Available to backorder	Crankshaft	£177.12 £147.60
