Honda HRS536C2-SDE - Handle Pipe, Throttle Lever Diagram

Description

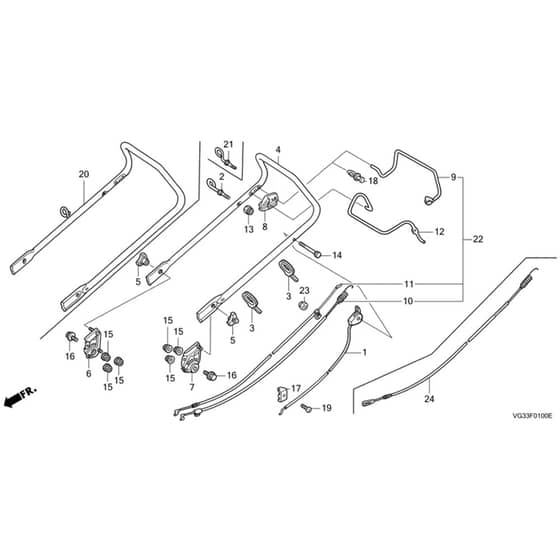

Honda HRS536C2-SDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP17850-VG3-D01 Available to backorder	Throttle Lever Assy	£29.29 £24.41
3	HP32901-VB5-A00 In stock	Cable Tie	Was £6.12 £5.10 Special Price £4.30 £3.58
4	HP53111-VG3-D01ZA Available to backorder	Upper Handle	£121.20 £101.00
5	HP53125-VG3-000 Available to backorder	Handle Grip	£3.79 £3.16
6	HP53130-VG3-D00 Available to backorder	Handle Stay Comp	£54.52 £45.43
7	HP53135-VG3-D00 Available to backorder	Stay L H	£34.14 £28.45
8	HP54315-VG3-D00 In stock	Lever Stopper	£4.21 £3.51
9	HP54411-VG3-D50 Available to backorder	Clutch Lever	£56.12 £46.77
11	HP54530-VG3-D01 Available to backorder	Brake Cable Assy	£45.06 £37.55
12	HP75191-VG3-000 Available to backorder	Brake Lever	£41.44 £34.53
13	HP90303-VG3-000 In stock	Lock Nut 6Mm	£0.80 £0.67
14	HP92101-06060-0A Available to backorder	Bolt	£1.82 £1.52
15	HP94050-08080 Available to backorder	Flange Nut 8Mm	£3.25 £2.71
16	HP95701-0801600 Available to backorder	Flange Bolt 8 X 16	£1.55 £1.29
17	HP16617-VG3-000 Available to backorder	Cable Holder	£1.84 £1.53
19	HP93500-050160A Available to backorder	Screw Pan 5X16	£1.51 £1.26
21	HP28475-VE1-T00 Available to backorder	Rope Guide	£3.85 £3.21
