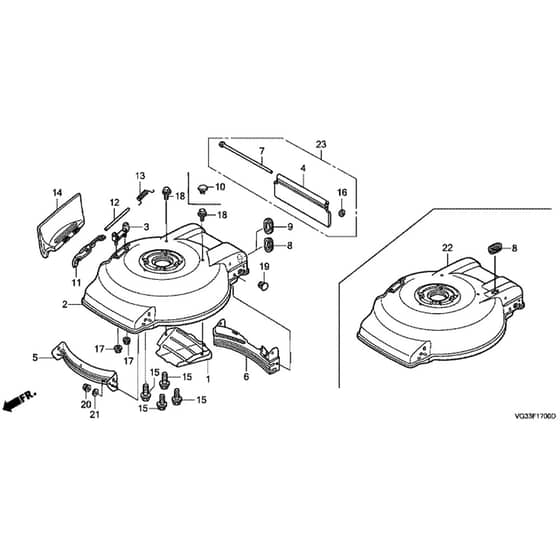

Honda HRS536C2-SDE - Cutter Housing Diagram

Name: Honda HRS536C2-SDE - Cutter Housing Diagram
SKU: hrs536c2_sde_cutter_housing-group
Price: 0.81 GBP
Availability: InStock

Part No. hrs536c2_sde_cutter_housing-group

Description

Honda HRS536C2-SDE Rotary Mower Parts Diagram

	Part No.	Details

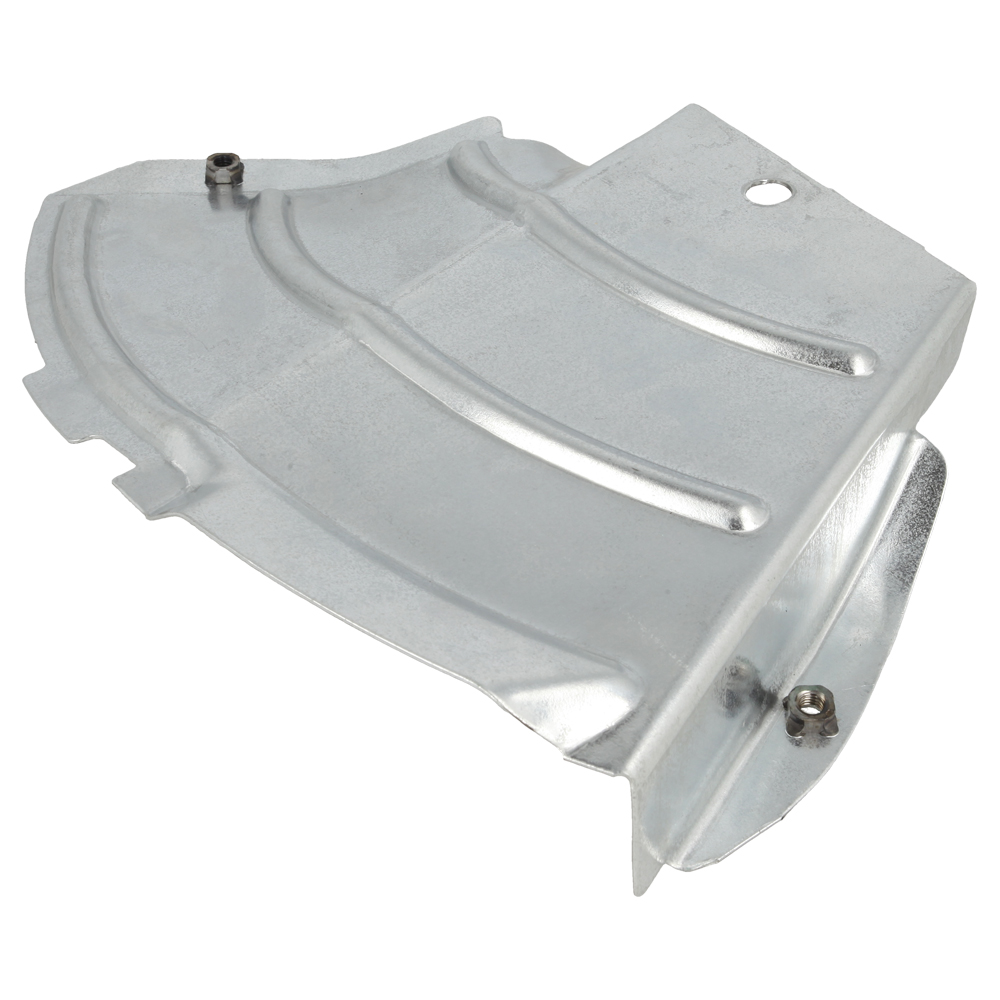

1	HP63610-VG3-B00 Available to backorder	Cover Comp. Belt	£37.51 £31.26
2	HP76111-VG3-D00ZB Available to backorder	Mower Housing	£203.88 £169.90
3	HP76114-VG3-000 Available to backorder	Hinge	£7.66 £6.38

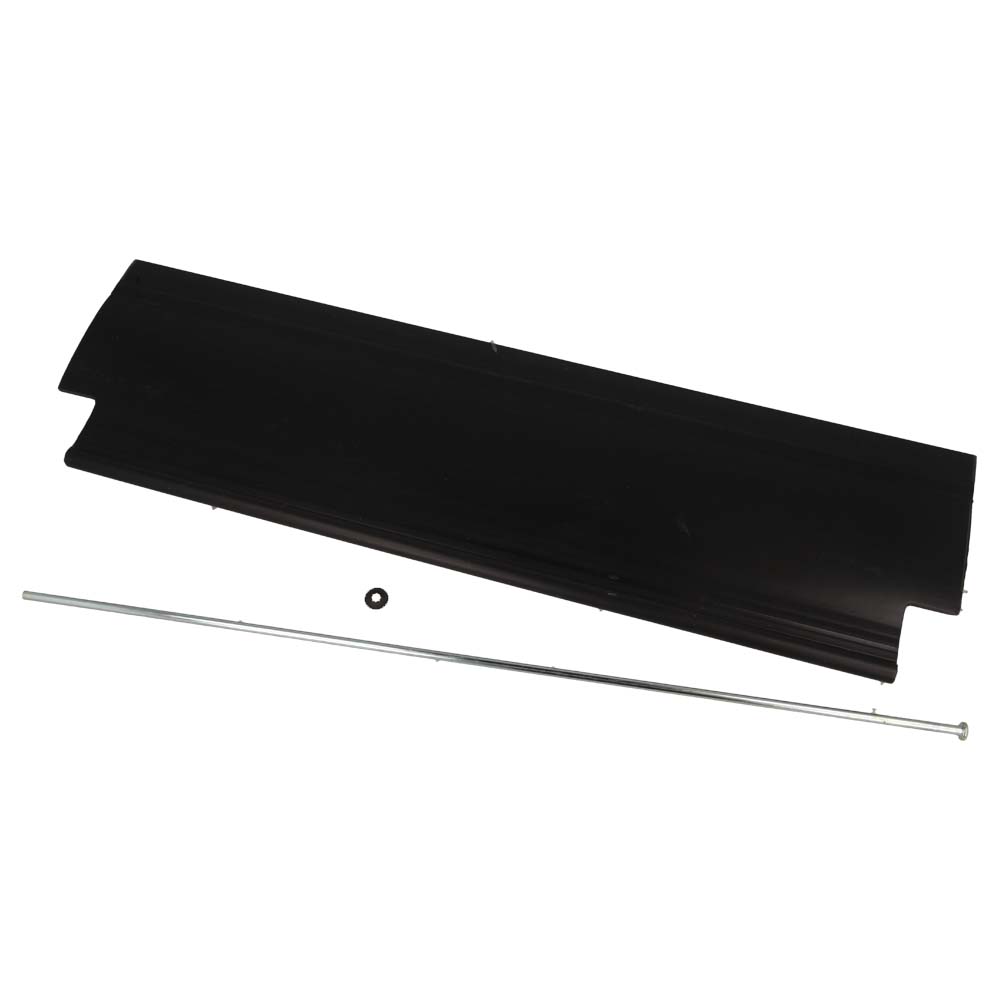

4	HP06761-VG3-305 Available to backorder	Shield Kit	£53.94 £44.95

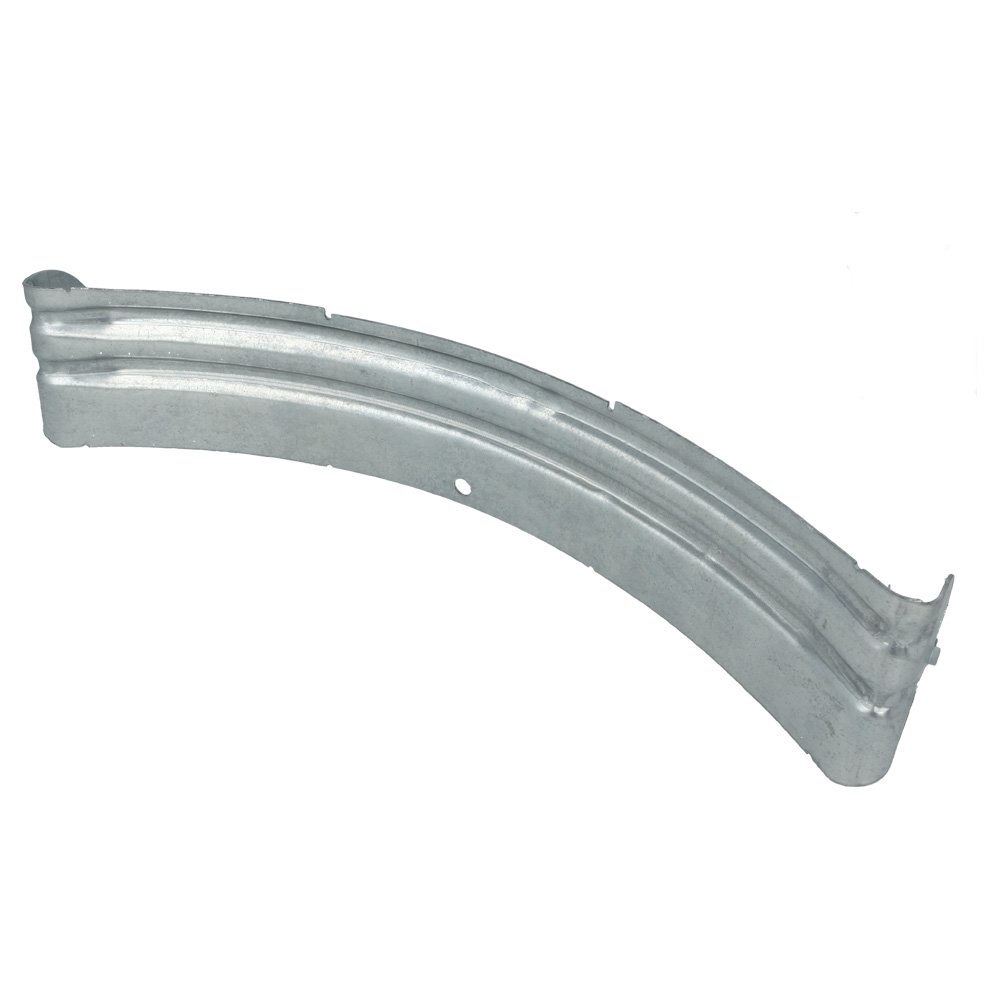

5	HP76125-VG3-010 In stock	Front Scroll	£31.36 £26.13
6	HP76131-VG3-B00 Available to backorder	Rr Scroll	£50.32 £41.93
7	HP76138-VG3-010 Available to backorder	Shaft	£6.20 £5.17
8	HP91651-VH3-850 Available to backorder	Cable Grommet	£1.60 £1.33
11	HP76281-VG3-030ZA Available to backorder	Discharge Guard	£24.65 £20.54
12	HP76282-VG3-000 Available to backorder	Guard Shaft	£22.31 £18.59
13	HP76284-VG3-010 Available to backorder	Guard Return Spring	£2.40 £2.00

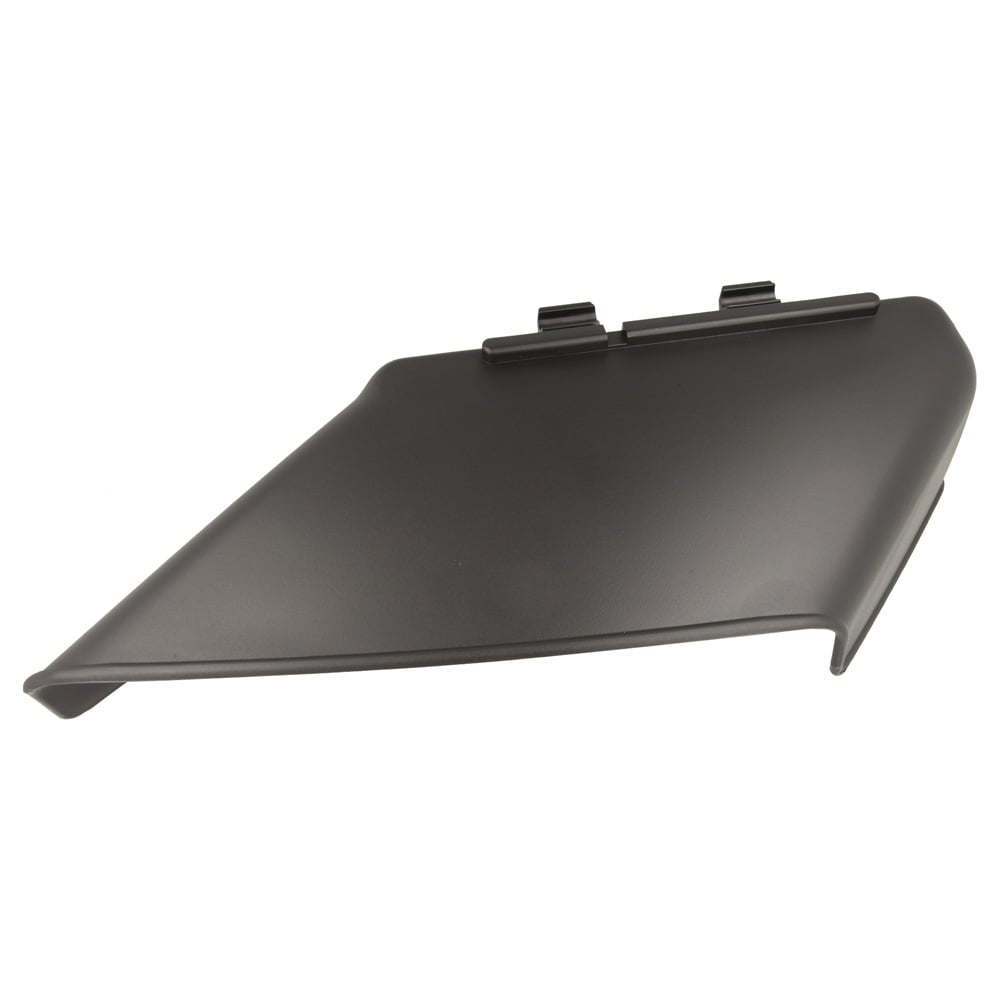

14	HP81211-VG3-020ZA Available to backorder	Discharge Chute	£41.94 £34.95

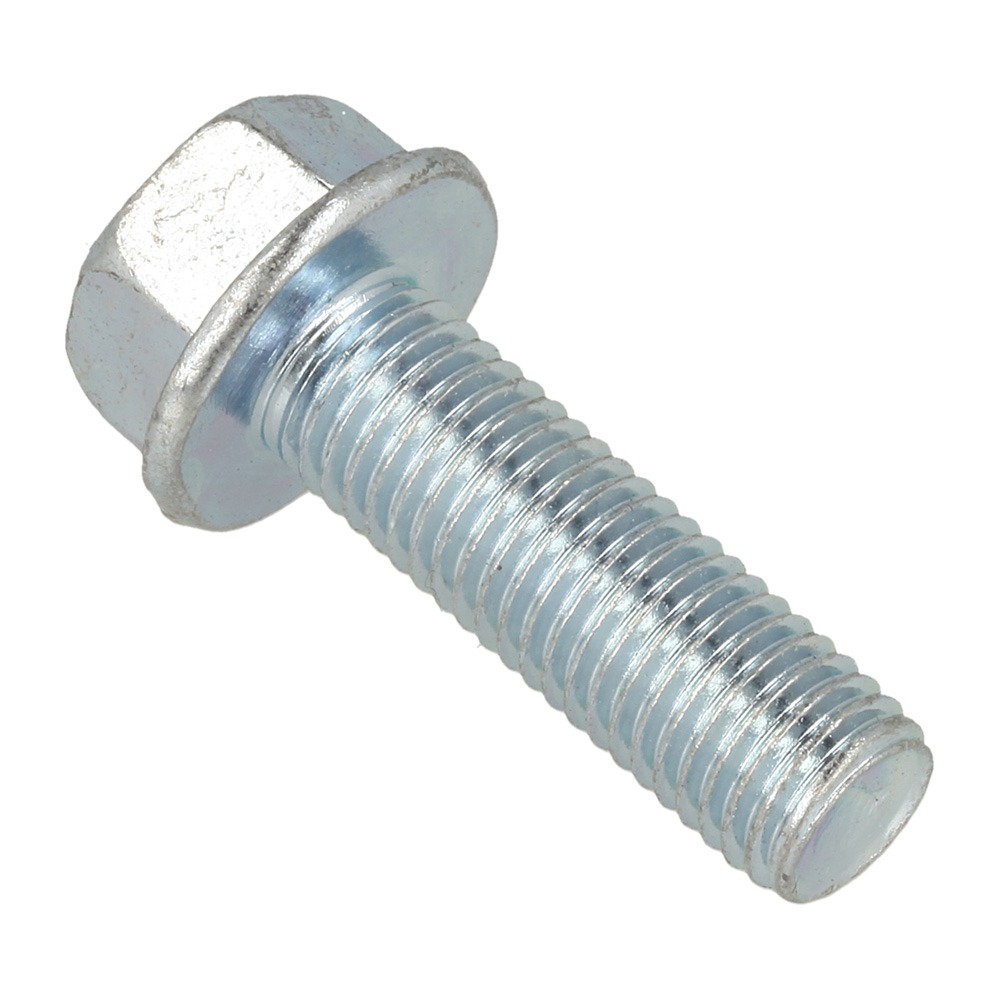

15	HP90104-VG3-000 Available to backorder	Flange Bolt	£1.20 £1.00
16	HP90301-VG3-010 Available to backorder	Push Nut	£1.99 £1.66
17	HP94050-06080 Available to backorder	Flange Nut 6Mm	£3.14 £2.62
18	HP95701-0601000 Available to backorder	Bolt	£0.97 £0.81
20	HP94050-08080 Available to backorder	Flange Nut 8Mm	£3.25 £2.71
21	HP90506-VG3-000 Available to backorder	Plain Washer 5/16	£2.76 £2.30
