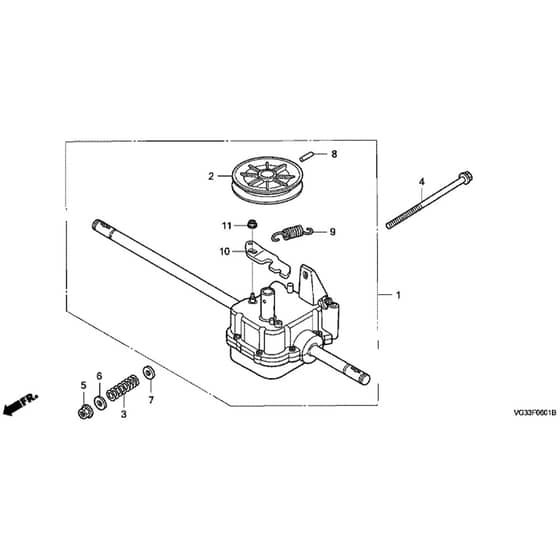

Honda HRS536C1-SDEA - Transmission Diagram

Description

Honda HRS536C1-SDEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP20001-VG3-D02 Available to backorder	1 Transmission Assy	£190.72 £158.93
2	HP22422-VF0-E50 Available to backorder	2 Pulley	£28.98 £24.15
3	HP22531-VG3-B00 Available to backorder	3 Belt Tension Spring	£9.84 £8.20
4	HP90101-VG3-D00 Available to backorder	4 Flange Bolt	£3.52 £2.93
5	HP90303-VG3-000 Available to backorder	5 Lock Nut 6Mm	£0.74 £0.62
6	HP94101-08000 Available to backorder	6 Plain Washer 8Mm	£0.96 £0.80
8	HP94305-50362 Available to backorder	8 Pin	£3.24 £2.70
9	HP23439-VE0-851 Available to backorder	9 Clutch Arm Return Spring	£4.56 £3.80
11	HP90301-VE0-L01 Available to backorder	11 Lock Nut 5Mm	£5.76 £4.80
