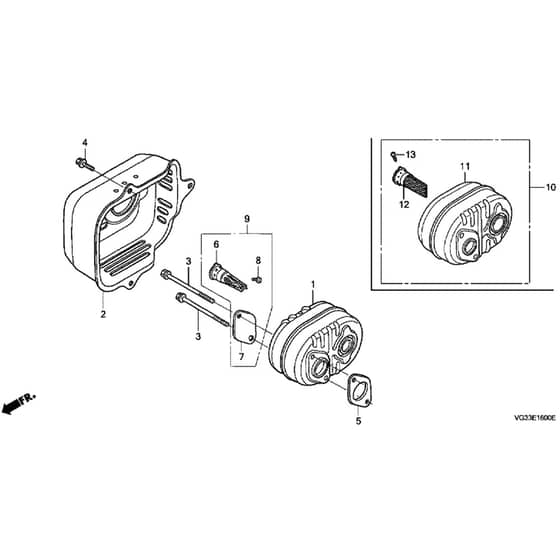

Honda HRS536C1-SDEA - Muffler Diagram

Description

Honda HRS536C1-SDEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP18310-ZM0-010 Available to backorder	1 Exhaust Assy	£24.80 £20.67
2	HP18321-Z0L-J01 Available to backorder	2 Exhaust Protector	£16.54 £13.78
2	HP18321-ZL8-A01 Available to backorder	2 Protector	£21.84 £18.20
3	HP90004-ZL8-000 In stock	3 Flange Bolt 6 X 79	£2.02 £1.68
4	HP90013-883-000 Available to backorder	4 Flange Bolt 6 X 12	£5.42 £4.52
5	HP18381-ZL8-305 Available to backorder	5 Exhaust Gasket	£6.58 £5.48
6	HP18350-ZL8-000 Available to backorder	6 Spark Arrester	£37.81 £31.51
7	HP18356-ZL8-000 Available to backorder	7 Plate	£4.34 £3.62
8	HP90055-ZE1-000 Available to backorder	8 Self Tapping Screw 4 X 6	£1.56 £1.30
9	HP06180-Z0J-000 Available to backorder	9 Arrester Kit Spark	£83.08 £69.23
