Honda HRS536C1-SDE - Handle Pipe, Throttle Lever Diagram

Name: Honda HRS536C1-SDE - Handle Pipe, Throttle Lever Diagram
SKU: hrs536c1_sde_handle_pipe_throttle_lever-group
Price: 0.67 GBP
Availability: InStock

Part No. hrs536c1_sde_handle_pipe_throttle_lever-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRS536C1-SDE - Handle Pipe, Throttle Lever Diagram

Description

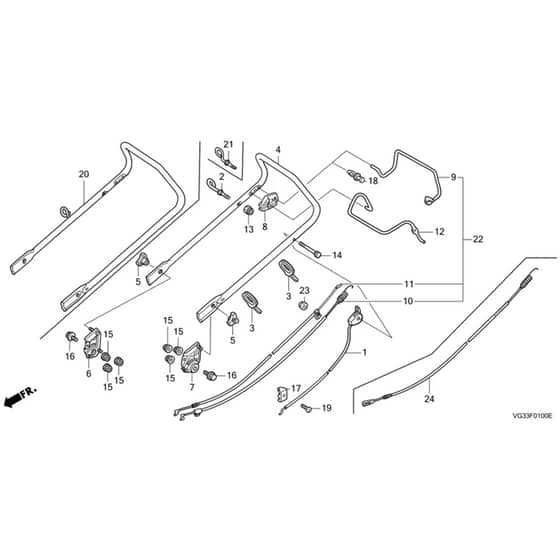

Honda HRS536C1-SDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP17850-VG3-D01 Available to backorder	1 Throttle Lever Assy	£29.29 £24.41
3	HP32901-VB5-A00 In stock	3 Cable Tie	Was £6.12 £5.10 Special Price £4.30 £3.58
4	HP53111-VG3-D01ZA Available to backorder	4 Upper Handle	£121.20 £101.00
5	HP53125-VG3-000 Available to backorder	5 Handle Grip	£3.79 £3.16
6	HP53130-VG3-D00 Available to backorder	6 Handle Stay Comp	£54.52 £45.43
7	HP53135-VG3-D00 Available to backorder	7 Stay L H	£34.14 £28.45
8	HP54315-VG3-D00 In stock	8 Lever Stopper	£4.21 £3.51
9	HP54411-VG3-D50 Available to backorder	9 Clutch Lever	£56.12 £46.77
11	HP54530-VG3-D01 Available to backorder	11 Brake Cable Assy	£45.06 £37.55
12	HP75191-VG3-D00 Available to backorder	12 Brake Lever	£36.17 £30.14
13	HP90303-VG3-000 In stock	13 Lock Nut 6Mm	£0.80 £0.67
14	HP92101-06060-0A Available to backorder	14 Bolt	£1.82 £1.52
15	HP94050-08080 Available to backorder	15 Flange Nut 8Mm	£3.25 £2.71
16	HP95701-0801600 Available to backorder	16 Flange Bolt 8 X 16	£1.55 £1.29
17	HP16617-VG3-000 Available to backorder	17 Cable Holder	£1.84 £1.53
19	HP93500-050160A Available to backorder	19 Screw Pan 5X16	£1.51 £1.26
21	HP28475-VE1-T00 Available to backorder	21 Rope Guide	£3.85 £3.21

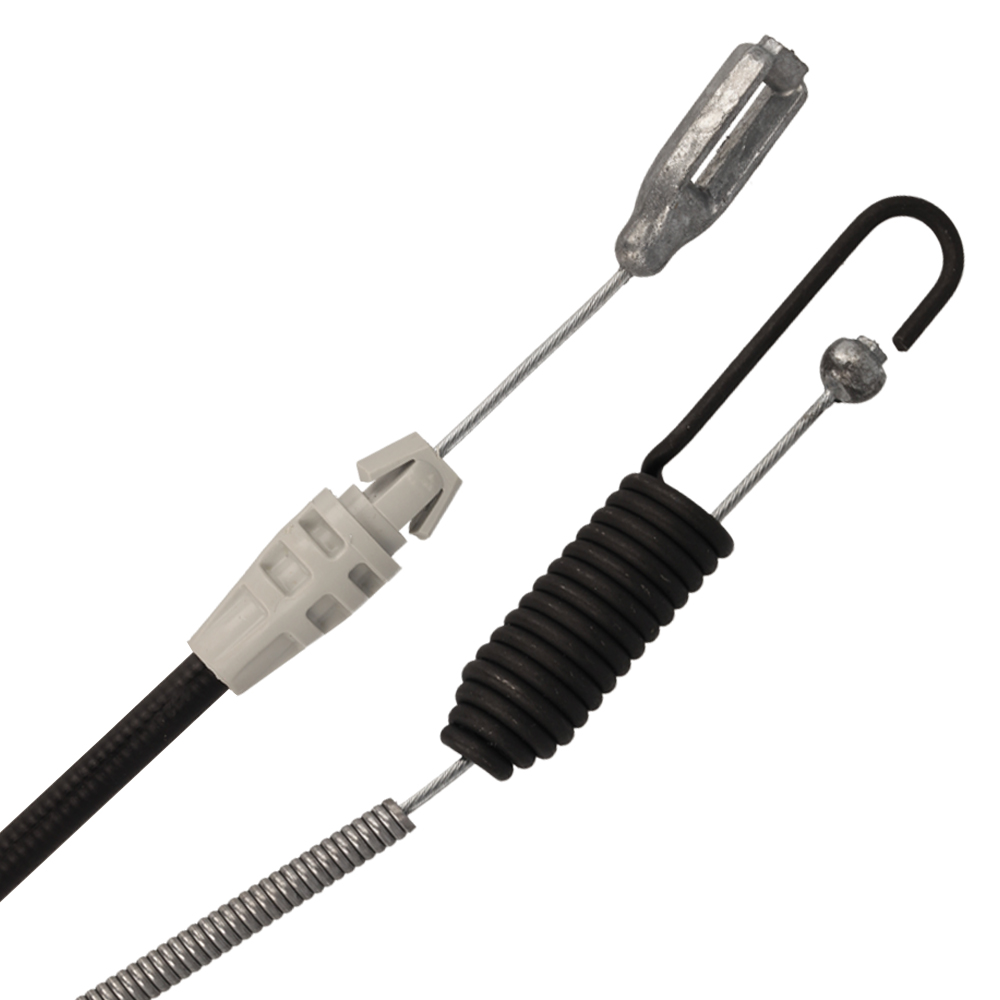

24	HP54510-VG3-D00 In stock	24 Clutch Cable	£37.42 £31.18
