Honda HRS536C1-SDE - Flywheel Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

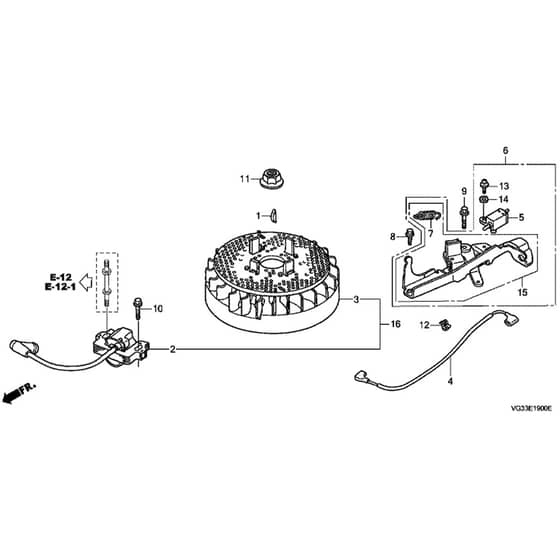

Honda HRS536C1-SDE - Flywheel Diagram

Honda HRS536C1-SDE - Flywheel Diagram

Description

Honda HRS536C1-SDE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HP13331-357-000 Available to backorder	1 Woodruff Key		£6.02 £5.02
	2		HP30500-ZL8-014 Available to backorder	2 Ignition Assy		£81.47 £67.89
	3		HP31105-ZM0-000 Available to backorder	3 Flywheel Assy		£51.05 £42.54
	4		HP32195-ZM0-000 Available to backorder	4 Stop Switch		£10.98 £9.15
	5		HP35120-ZM0-003 Available to backorder	5 Engine Stop Switch Assy		£11.82 £9.85
	6		HP75100-ZM0-000 Available to backorder	6 Brake Assy		£50.68 £42.23
	7		HP75113-ZM0-000 Available to backorder	7 Spring		£2.70 £2.25
	8		HP90014-952-000 Available to backorder	8 Flange Bolt 6 X 14		£3.73 £3.11
	9		HP90018-ZE1-000 Available to backorder	9 Flange Bolt		£2.94 £2.45
	10		HP90022-888-010 Available to backorder	10 Flange Bolt 6 X 20		£2.71 £2.26
	11		HP90201-878-003 Available to backorder	11 Speical Nut 14Mm		£7.03 £5.86
	12		HP90681-959-003 Available to backorder	12 Cable Clip		£0.96 £0.80
	13		HP93892-0401200 Available to backorder	13 Screw		£1.50 £1.25
	14		HP94103-040-00 Available to backorder	14 Washer 4Mm		£0.94 £0.78

Description

Honda HRS536C1-SDE Rotary Mower Parts Diagram
