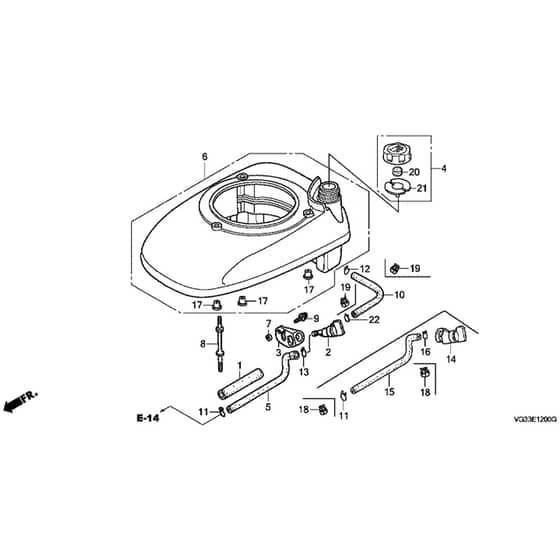

Honda HRS536C1-PDE - Fan Cover Diagram

Name: Honda HRS536C1-PDE - Fan Cover Diagram
SKU: hrs536c1_pde_fan_cover-group
Price: 0.81 GBP
Availability: InStock

Part No. hrs536c1_pde_fan_cover-group

Description

Honda HRS536C1-PDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16854-ZH8-000 Available to backorder	1 Support Rubber	£3.72 £3.10
2	1271 In stock	2 Fuel Tap Assy	£3.68 £3.07
3	HP16956-ZM0-000 Available to backorder	3 Fuel Tap Bracket	£3.35 £2.79
4	HP17620-ZL8-023 In stock	4 Fuel Cap Assy	£12.47 £10.39
5	HP17702-ZM0-000 Available to backorder	5 Fuel Pipe	£10.60 £8.83
6	HP19610-ZM0-J70ZB Available to backorder	6 Fan Cover Assy	£68.16 £56.80
7	HP33609-GK4-620 Available to backorder	7 Collar	£3.58 £2.98
8	HP90043-ZL8-000 In stock	8 Stud	£4.56 £3.80
9	HP93891-0501008 Available to backorder	9 Washer	£1.51 £1.26
10	HP95001-5500160M Available to backorder	10 Fuel Pipe	£26.24 £21.87
11	HP95002-02080 In stock	11 Tube Clip	£1.19 £0.99
12	HP95002-02100 In stock	12 Tube Clip	£1.31 £1.09
13	HP95002-50000 Available to backorder	13 Tube Clip	£0.97 £0.81
14	HP16950-ZM0-003 In stock	14 Fuel Tap Assy	£42.26 £35.22
15	HP17702-ZM0-800 In stock	15 Fuel Pipe	£10.98 £9.15
17	HP19619-ZL8-300 Available to backorder	17 Fan Cover Collar	£1.49 £1.24
20	HP17622-888-010 In stock	20 Breather Sponge	£1.63 £1.36
21	HP17624-ZL8-013 Available to backorder	21 Fuel Cap Gasket	£3.56 £2.97
