Honda HRS536C-SDE - Rotary Blade Diagram

Name: Honda HRS536C-SDE - Rotary Blade Diagram
SKU: hrs536c_sde_rotary_blade-group
Price: 0.38 GBP
Availability: InStock

Part No. hrs536c_sde_rotary_blade-group

Description

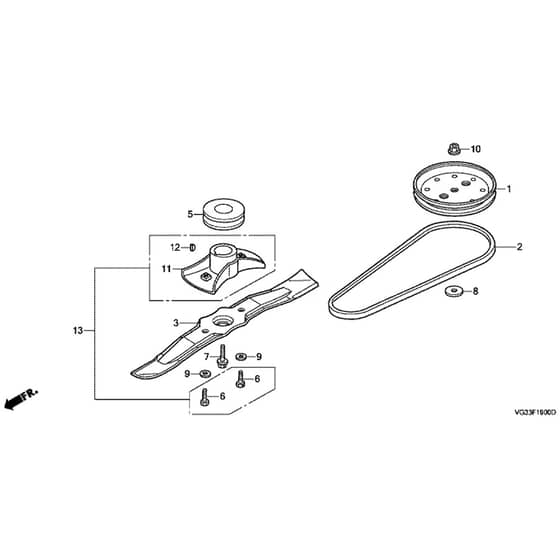

Honda HRS536C-SDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP22420-VG3-B00 Available to backorder	1 Driven Pulley	£41.94 £34.95
2	HP22431-VG3-B50 Available to backorder	2 V-Belt	£30.34 £25.28
3	HP72511-VG3-000 Available to backorder	3 Blade	£55.31 £46.09
5	HP75161-VG3-B50 Available to backorder	5 Pulley	£34.22 £28.52
6	HP90105-960-710 In stock	6 Blade Bolt	£2.99 £2.49
6	HP90105-VA3-J01 In stock	6 Bolt Hex 10 X 25	£4.38 £3.65
7	HP90109-VG3-000 Available to backorder	7 Flange Bolt 3/8-24 X 1	£1.20 £1.00
8	HP90504-VG3-B00 Available to backorder	8 Washer	£0.72 £0.60
9	HP90502-VG3-000 In stock	9 Spring Washer 10Mm	£1.76 £1.47
10	HP94050-10080 Available to backorder	10 Flange Nut 10Mm	£3.14 £2.62
12	HP90751-VG3-000 Available to backorder	12 Key	£0.46 £0.38
13	HP06726-VG3-305 Available to backorder	13 Blade Holder Kit	£75.84 £63.20
