Honda HRS536C-SDE - Flywheel Diagram

Part No. hrs536c_sde_flywheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRS536C-SDE - Flywheel Diagram

Honda HRS536C-SDE - Flywheel Diagram

Description

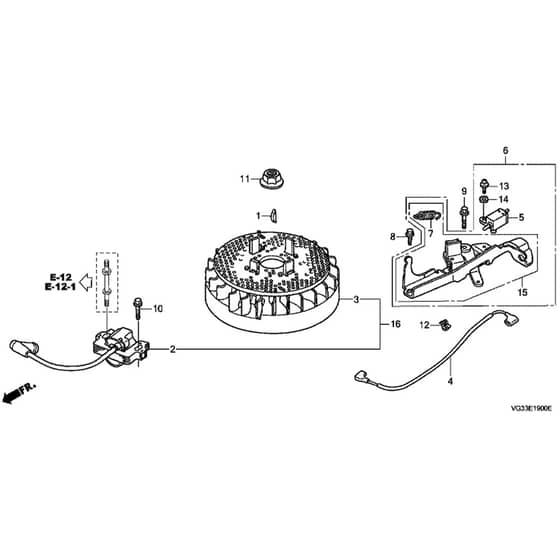

Honda HRS536C-SDE Rotary Mower Parts Diagram

Ref.		Img.	Part No.	Details
	1		HP13331-357-000 Available to backorder	1 Woodruff Key		£6.08 £5.07
	2		HP30500-ZL8-014 Available to backorder	2 Ignition Assy		£81.48 £67.90
	3		HP31105-ZM0-000 Available to backorder	3 Flywheel Assy		£51.52 £42.93
	4		HP32195-ZM0-000 Available to backorder	4 Stop Switch		£11.09 £9.24
	5		HP35120-ZM0-003 Available to backorder	5 Engine Stop Switch Assy		£12.23 £10.19
	6		HP75100-ZM0-000 Available to backorder	6 Brake Assy		£51.14 £42.62
	7		HP75113-ZM0-000 Available to backorder	7 Spring		£2.72 £2.27
	8		HP90014-952-000 Available to backorder	8 Flange Bolt 6 X 14		£3.77 £3.14
	9		HP90018-ZE1-000 Available to backorder	9 Flange Bolt		£2.96 £2.47
	10		HP90022-888-010 Available to backorder	10 Flange Bolt 6 X 20		£2.74 £2.28
	11		HP90201-878-003 Available to backorder	11 Speical Nut 14Mm		£7.09 £5.91
	12		HP90681-959-003 Available to backorder	12 Cable Clip		£0.97 £0.81
	13		HP93892-0401200 Available to backorder	13 Screw		£1.51 £1.26
	14		HP94103-040-00 Available to backorder	14 Washer 4Mm		£0.89 £0.74

Description

Honda HRS536C-SDE Rotary Mower Parts Diagram
