Honda HRS536C-PDE - Cutter Housing Diagram

Name: Honda HRS536C-PDE - Cutter Housing Diagram
SKU: hrs536c_pde_cutter_housing-group
Price: 1 GBP
Availability: InStock

Part No. hrs536c_pde_cutter_housing-group

Description

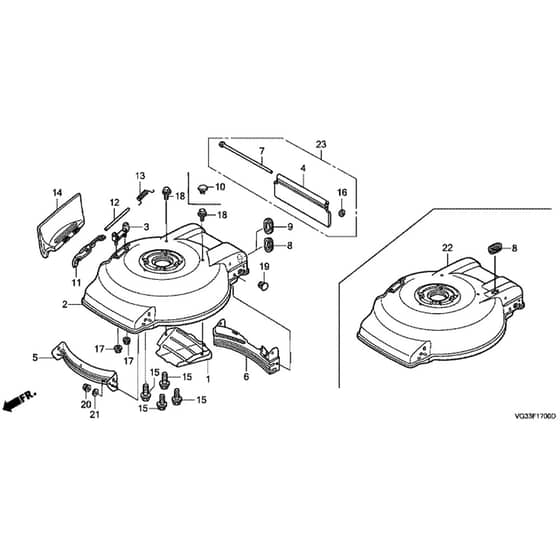

Honda HRS536C-PDE Rotary Mower Parts Diagram

	Part No.	Details
2	HP76111-VG3-D00ZB Available to backorder	2 Mower Housing	£203.88 £169.90
3	HP76114-VG3-000 Available to backorder	3 Hinge	£7.66 £6.38
4	HP06761-VG3-305 Available to backorder	4 Shield Kit	£53.94 £44.95
5	HP76125-VG3-010 In stock	5 Front Scroll	£31.36 £26.13
6	HP76131-VG3-000 Available to backorder	6 Rr Scroll	£50.32 £41.93
7	HP06762-VG3-000 Available to backorder	7 Rear Shield Shaft	£4.24 £3.53
7	HP76138-VG3-010 Available to backorder	7 Shaft	£6.20 £5.17
9	HP76232-VG3-000 Available to backorder	9 Grommet	£2.05 £1.71
11	HP76281-VG3-030ZA Available to backorder	11 Discharge Guard	£24.65 £20.54
12	HP76282-VG3-000 Available to backorder	12 Guard Shaft	£22.31 £18.59
13	HP76284-VG3-010 Available to backorder	13 Guard Return Spring	£2.40 £2.00
14	HP81211-VG3-020ZA Available to backorder	14 Discharge Chute	£41.94 £34.95
15	HP90104-VG3-000 Available to backorder	15 Flange Bolt	£1.20 £1.00
16	HP90301-VG3-010 Available to backorder	16 Push Nut	£1.99 £1.66
17	HP94050-06080 Available to backorder	17 Flange Nut 6Mm	£3.14 £2.62
20	HP94050-08080 Available to backorder	20 Flange Nut 8Mm	£3.25 £2.71
21	HP90506-VG3-000 Available to backorder	21 Plain Washer 5/16	£2.76 £2.30
